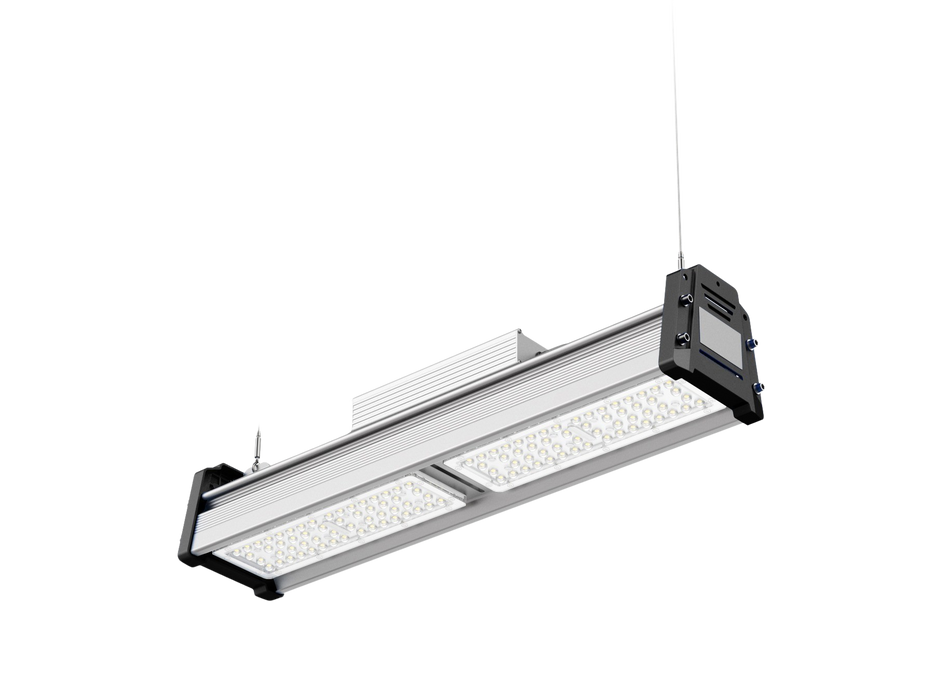

Robus RPD12050DA-23 PRISMOID 120W LED linear high bay, IP65, 1-10V dimmable, Silver, 590mm, 5000K

Suitable for use in warehouses, manufacturing plants, garages, workshops & aircraft hangars, retail superstores, gymnasium & sports halls . LED replacement for 250W metal halide fittings . Extruded aluminium housing with PMMA lens providing very high impact rating of IK10, optimal heat dissipation and light distribution . Prewired with 350mm rubber flex . Very high efficacy of 136lm/W . Wide ambient operating temperature range of -25°C to +40°C . Comes with 30x70 degree beam angle lens making it optimal for high racking applications . 90 degree lens available as accessory . Rotating surface mounting brackets also available . Dimmable with most of 1-10V systems . Suitable for switching by PIR, Microwave or Photocell

• Suitable for use in warehouses, manufacturing plants, garages, workshops & aircraft hangars, retail superstores, gymnasium & sports halls
• LED replacement for 250W metal halide fittings
• Extruded aluminium housing with PMMA lens providing very high impact rating of IK10, optimal heat dissipation and light distribution
• Prewired with 350mm rubber flex
• Very high efficacy of 136lm/W
• Wide ambient operating temperature range of -25°C to +40°C
• Comes with 30x70 degree beam angle lens making it optimal for high racking applications
• 90 degree lens available as accessory
• Rotating surface mounting brackets also available
• Dimmable with most of 1-10V systems

Datasheet

Is the ROBUS PRISMOID 120W high bay suitable for high-racking aisles?
Yes. This fitting is supplied with a 30x70 degree beam angle lens, making it suitable for high-racking and aisle applications where a narrower, controlled light distribution is required.

What dimming system does this high bay use?
This model is 1-10V dimmable, so it is designed for use with compatible 1-10V dimming controls rather than standard leading-edge or trailing-edge domestic dimmers.

Can this fitting be connected to a standard wall dimmer?
No. It should not be connected to a standard phase-cut wall dimmer unless the manufacturer specifically confirms compatibility. Use a compatible 1-10V dimming control system.

What does the IK10 rating mean for installation?
IK10 indicates a very high level of impact resistance, which makes the fitting suitable for demanding commercial and industrial areas where luminaires may be exposed to knocks or mechanical impact.

What type of applications is 5000K best suited to?

5000K is commonly used in workspaces where a crisp, bright light is preferred, such as warehouses, factories, garages, workshops, logistics areas, sports halls and retail stock areas.
