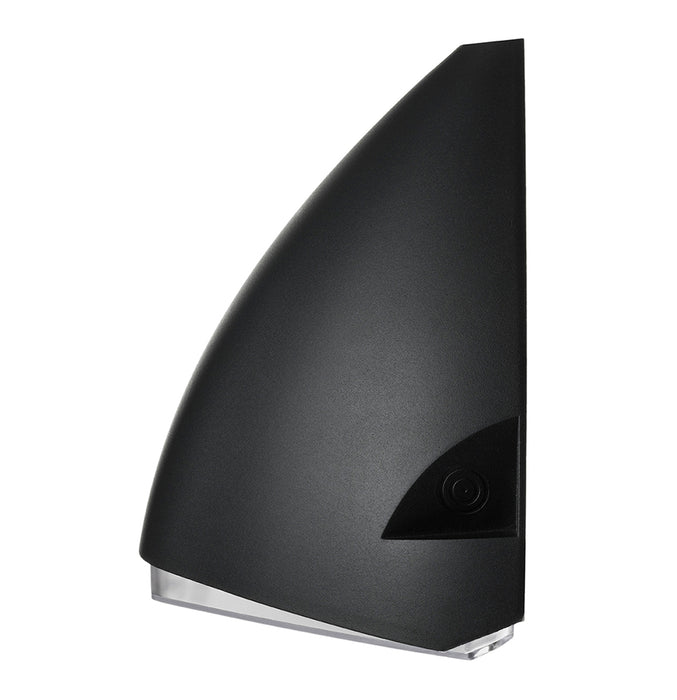

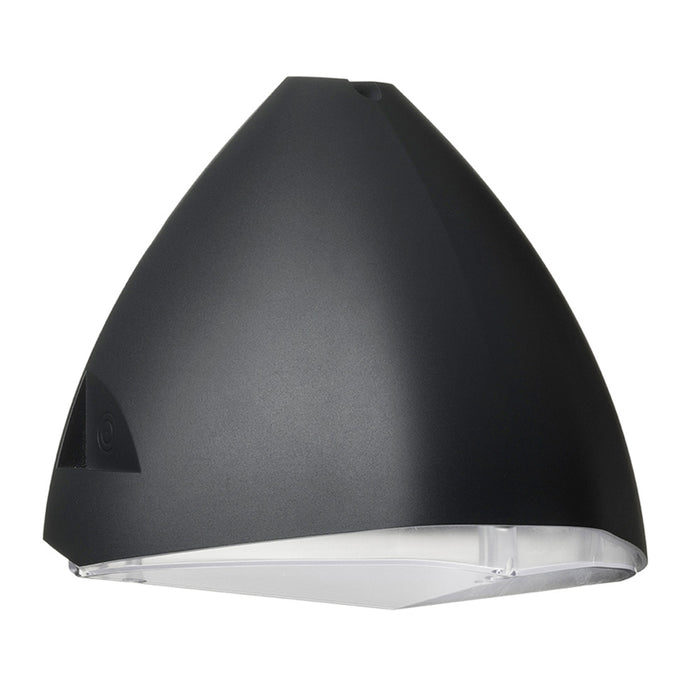

Red Arrow ZENAEPC-CCT Zenith Wallpack Area 13-28W c/w 3h EM & Photocell 3/4K Grey

Red Arrow ZENAEPC-CCT Zenith Wallpack Area 13-28W c/w 3h EM & Photocell 3/4K Grey

SKU ZENAEPC-CCT
£109.00 - £109.00
£109.00 inc VAT £90.83 exc VAT
£109.00 - £109.00
£109.00 inc VAT £90.83 exc VAT inc VAT £90.83 exc VAT

Estimated delivery time: 1-2 working days

Description

Elevate your exterior lighting with the Red Arrow Zenith LED Architectural Wallpack ZENAEPC-CCT, a premium outdoor luminaire designed for perimeter lighting, public spaces, and commercial buildings. This IP65-rated wallpack features selectable wattage (13W, 18W, 28W) and colour temperature (3000K warm white or 4000K cool white), delivering up to 3500 lumens with high efficacy up to 139 lm/W.

Built with a die-cast aluminium body and polycarbonate diffuser, the Zenith Wallpack offers IK10 impact resistance, Class I electrical safety, and a RAL7016 Anthracite finish for a sleek, modern look. It includes tamper-resistant screws, an integral photocell sensor, and a 3-hour emergency function powered by a LiFePO4 battery, ensuring safety and reliability during power outages.

Ideal for pathways, building facades, car parks, and security lighting, this wallpack supports easy installation, long-term durability, and energy efficiency with a 54,000-hour LED lifespan. Backed by a 7-year warranty (5 years on emergency battery), it’s a dependable solution for architectural lighting needs.

Specification
  • Warranty 7 Years
  • Emergency Battery Warranty 5 Years
  • On-Site Warranty 2 Years
  • Colour Appearance (CCT) 3000K / 4000K
  • IP Rating IP65
  • IK Rating IK10
  • Emergency Battery Type LiFePO4
  • Voltage 230V
  • Material (Body/Housing) Die-Cast Aluminium
  • Colour Rendition (CRI) Ra > 80
  • Colour Finish RAL7016 Anthracite
  • LED Life Expectancy L80B50 > 54,000 Hours
  • Power Factor >0.9
  • Frequency 50/60Hz
  • Driver Type Selectable Output
  • Approval UKCA CE
  • Electrical Class Class I
  • Working Temperature 0°C to 40°C

Datasheet

Product Dimensions

L: 265 x W: 319 x D: 165 mm

FAQ's

Is a photocell-controlled wallpack suitable for security lighting?

Yes. Photocell-controlled luminaires are commonly used for perimeter security because they provide consistent overnight illumination without relying on occupants to operate switches. This helps maintain visibility around building entrances, pathways, loading areas and external circulation routes.

Why is IK10 impact resistance important for public-facing buildings?

Wall-mounted luminaires installed in public spaces are often exposed to accidental impacts, vandalism and general wear. IK10 is one of the highest impact-resistance ratings available for lighting products and helps protect the fitting against damage, reducing maintenance and replacement costs.

Can emergency wallpacks reduce the number of fittings required on a project?

In many installations, yes. Combining standard and emergency lighting functions within one luminaire can eliminate the need for separate emergency fittings, helping create a cleaner building exterior while reducing installation complexity and ongoing maintenance requirements.

Is 3000K or 4000K better for perimeter lighting?

It depends on the application. 3000K is often chosen for hospitality, residential and architectural projects where a warmer appearance is preferred. 4000K is commonly specified for commercial and security applications because it provides a crisper appearance and improved visual clarity. The Zenith allows either option from the same fitting.
