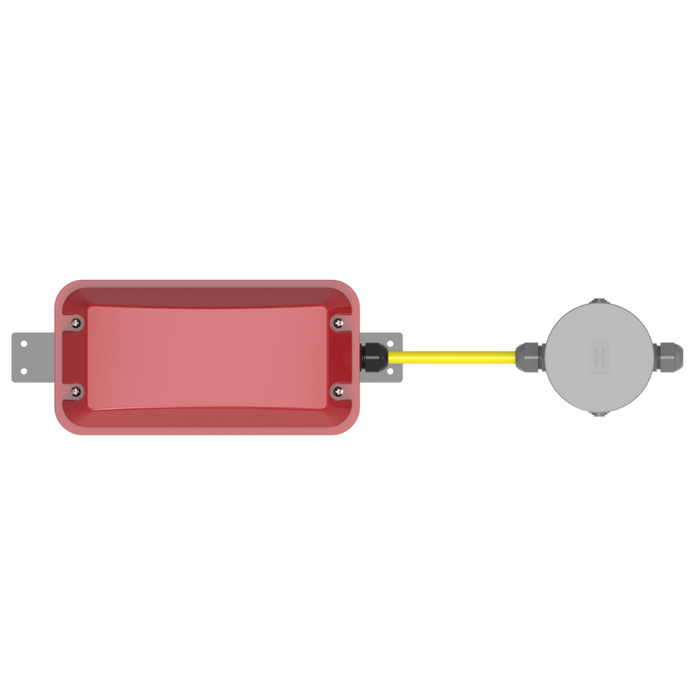

Red Arrow TAR8Y-JBB Taurus Site with Red Diffuser, Junction Box & Mounting Bracket

Red Arrow TAR8Y-JBB 8W 190lm Red Dual Voltage Site Safety Bulkhead

The Red Arrow TAR8Y-JBB Taurus Site Red LED Bulkhead is a robust dual-voltage construction site safety light specifically designed for marking scaffolding, site hoardings and temporary construction areas. Featuring a highly visible red diffuser, durable polycarbonate housing and professional site-ready mounting accessories, the TAR8Y-JBB is an excellent solution for electricians, scaffolding contractors, construction companies and site managers who need reliable visual safety lighting in demanding environments.

Operating across 110–240V, the Red Arrow TAR8Y-JBB provides flexibility for use with typical 110V construction-site electrical systems as well as suitable 230/240V supplies. This dual-voltage capability makes the Taurus Site range particularly practical for temporary site installations where equipment may be used across different project environments.

Designed Specifically for Scaffolding Safety Marking

The most important feature of the TAR8Y-JBB is its intended application.

Red Arrow specifically states that this product is designed for the safety marking of scaffolding and is ideal for hoardings and scaffolding. Rather than acting primarily as a general work-area light, the red diffuser provides a conspicuous visual marker that can help identify structures, boundaries and site hazards.

This means the strongest SEO phrases for the product are not simply “LED bulkhead”, but searches such as:

scaffolding warning light, red scaffold light, 110V scaffolding light, construction site marker light, red site safety bulkhead, hoarding warning light, and temporary site boundary lighting.

Red Diffuser for High-Visibility Site Identification

The red diffuser gives the TAR8Y-JBB a distinctive output designed around site safety and visual identification.

The fitting produces approximately 190 lumens through the red diffuser from an 8W LED load. Red Arrow specifies approximately 24 lumens per watt for this version.

This is intentionally different from the clear TAC8Y-JBB version, which is designed to provide conventional white general illumination.

For projects where the primary requirement is marking scaffolding, site boundaries, temporary structures or hoardings, the red TAR8Y-JBB is the more appropriate option.

Dual Voltage 110V–240V Site Bulkhead

The Red Arrow TAR8Y-JBB operates from 110–240V, providing useful flexibility for professional electrical contractors.

On UK construction sites, 110V systems are widely used for temporary tools and lighting, making the fitting particularly relevant for searches including:

110V red site light,
110V scaffolding warning light,
110V red LED bulkhead,
dual-voltage construction light,
and 110V–240V site safety lighting.

Its wider input range also means the same fitting can be incorporated into suitable 230/240V installations where required.

Supplied With Junction Box and Mounting Bracket

The JBB version of the Taurus Site bulkhead adds important installation accessories compared with the standard TAR8Y.

Red Arrow's current catalogue specifies that the JBB version is supplied with a pre-wired 1 metre flex, junction box with glands and mounting bracket.

This makes the TAR8Y-JBB particularly useful for scaffolding and hoarding installations because contractors receive a more installation-ready package.

The mounting bracket allows the fitting to be positioned securely on a suitable structure, while the junction box provides a practical connection point for temporary electrical installations.

IP65 Protection for Outdoor and Construction Environments

Construction-site lighting may be exposed to dust, rain and changing weather conditions, so environmental protection is an important specification.

The Red Arrow TAR8Y-JBB is IP65 rated, providing strong protection against dust and water ingress.

This gives the product strong relevance for searches such as:

IP65 scaffold light,
weather-resistant site warning light,
outdoor red LED bulkhead,
construction hoarding safety light,
and water-resistant site marker light.

The fitting should still be installed according to Red Arrow's instructions and applicable electrical regulations.

IK08 Impact Resistance

The TAR8Y-JBB is also IK08 rated, providing additional resistance against mechanical impact.

This is particularly useful on busy construction sites where lighting equipment may be exposed to knocks, tools, moving materials or accidental contact.

Together, IP65 and IK08 make the Taurus Site red bulkhead far better suited to demanding temporary environments than a typical domestic or indoor LED bulkhead.

Tough Polycarbonate Construction

Both the housing and diffuser are manufactured from polycarbonate, giving the TAR8Y-JBB a strong yet relatively lightweight construction.

The fitting measures approximately 245mm long x 125mm wide x 97mm deep and weighs around 0.654kg, helping make it practical for temporary site mounting.

50,000-Hour Rated LED Life

Red Arrow currently specifies an L70B50 LED life expectancy of 50,000 hours for the TAR8Y-JBB.

This makes it suitable not only for short construction projects but also for contractors who may reuse site-lighting equipment across multiple jobs.

High Power Factor

The fitting has a stated power factor greater than 0.95, giving electrical contractors a useful performance specification when designing multi-fitting temporary site-lighting circuits.

Class II Construction

The TAR8Y-JBB is a Class II electrical product, using double or reinforced insulation as part of its protection design.

Suitable for Cold and Demanding Site Environments

Red Arrow specifies a working temperature range of approximately -10°C to +40°C, making the fitting suitable for a wide variety of typical UK site conditions.

Where Should the Red Arrow TAR8Y-JBB Be Used?

The Red Arrow TAR8Y-JBB is particularly suited to:

scaffolding safety marking, construction-site hoardings, temporary site boundaries, scaffold access areas, building perimeters, refurbishment projects, construction compounds and other temporary site locations where a highly visible red marker light is required.
