Red Arrow GTC18EVO-CCT Circular Gear Tray 9/13/18W 3CCT 3/4/6K Plug & Play

Red Arrow GTC18EVO-CCT Circular Gear Tray 9/13/18W 3CCT 3/4/6K Plug & Play

SKU GTC18EVO-CCT
£14.50 - £14.50
£14.50 inc VAT £12.08 exc VAT
£14.50 - £14.50
£14.50 inc VAT £12.08 exc VAT inc VAT £12.08 exc VAT
Datasheet

Estimated delivery time: Next working day

Description

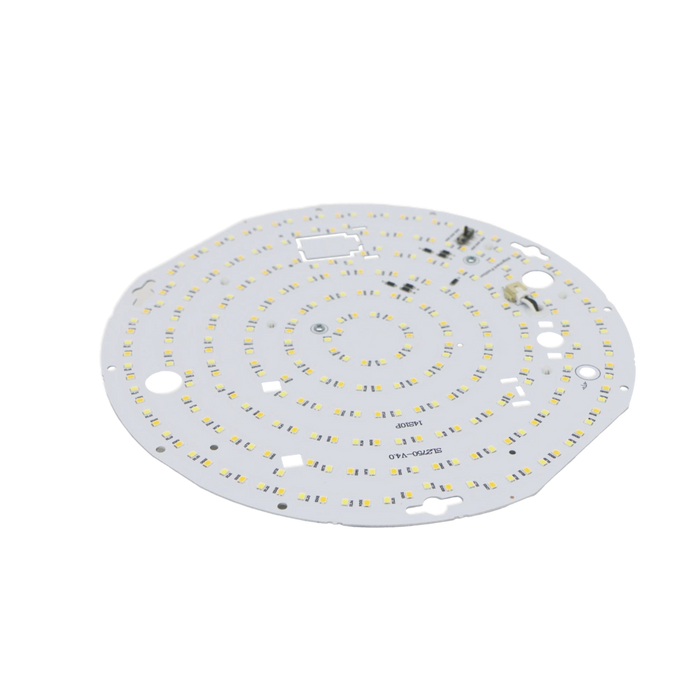

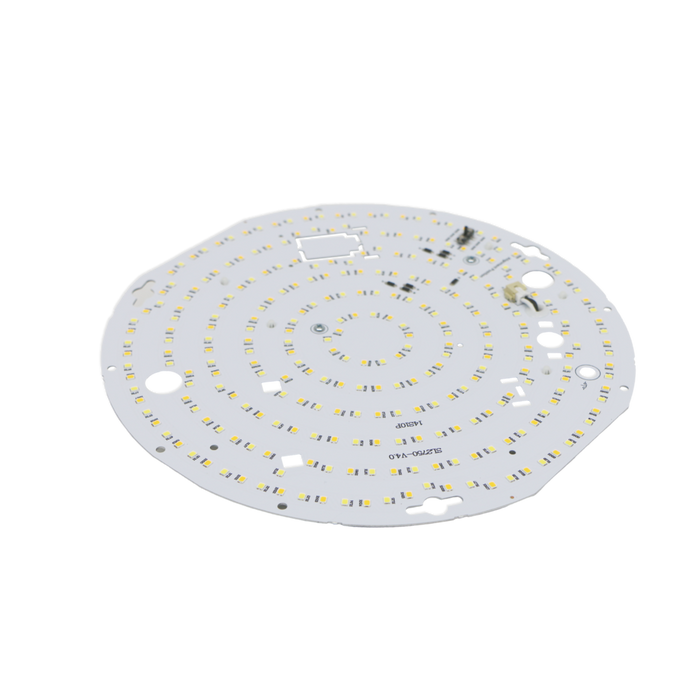

The GTC18EVO-CCT Circular Gear Tray from Red Arrow Electrical is a high-performance LED lighting component designed for retrofit and new installations. Featuring switchable CCT technology, it allows users to select between warm, neutral, and cool white light (3000K / 4000K / 6000K), making it adaptable to various environments. With a slim profile and easy mounting, this gear tray is ideal for upgrading bulkhead fittings and other circular luminaires. It delivers excellent energy efficiency, long lifespan, and consistent light output, making it a reliable choice for commercial, residential, and industrial lighting applications.

Key Features:

  • CCT switchable: 3000K / 4000K / 6000K
  • High-efficiency LED technology
  • Easy retrofit for circular bulkhead fittings
  • Long lifespan and low maintenance
  • Uniform light distribution
  • Ideal for commercial and residential use
Specification

The Red Arrow GTC18EVO-CCT Circular LED Gear Tray is a high-efficiency retrofit LED gear tray designed for Red Arrow Polo X, Robust bulkhead bodies and a wide range of compatible existing bulkhead housings. It offers 9W, 14W and 18W selectable power, producing 1500, 2158 or 3000 lumens, together with 3000K, 4000K and 6000K selectable colour temperature.

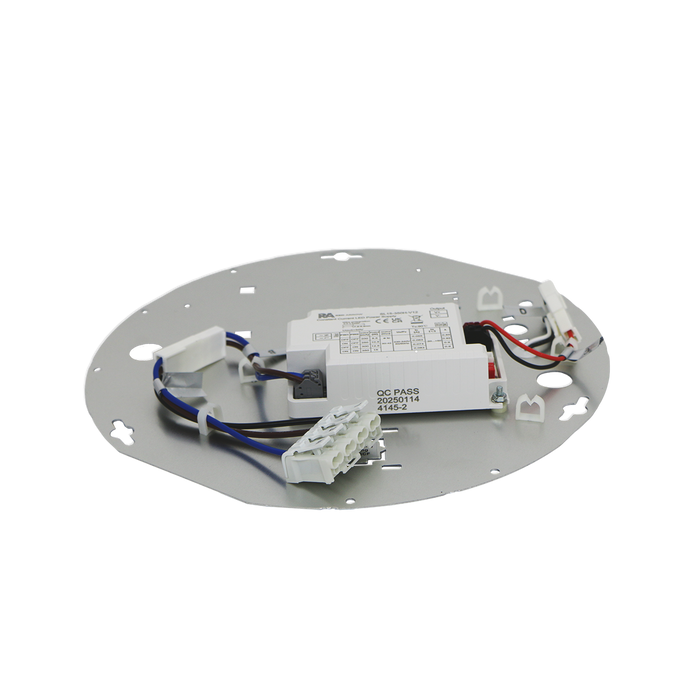

  • Delivering up to 166lm/W, the GTC18EVO-CCT is ideal for upgrading older LED or 2D bulkhead fittings without replacing the complete housing. Its 245mm diameter, 46mm depth, Class II construction and Plug & Play design help simplify retrofit installations, while compatibility with Red Arrow emergency and sensor accessories gives contractors extra flexibility. The fitting operates from 220–240V, has a Ra >80 CRI, and is backed by a 5-year warranty.
Product Dimensions

Dimensions (mm) Ø: 245 x D: 46mm
