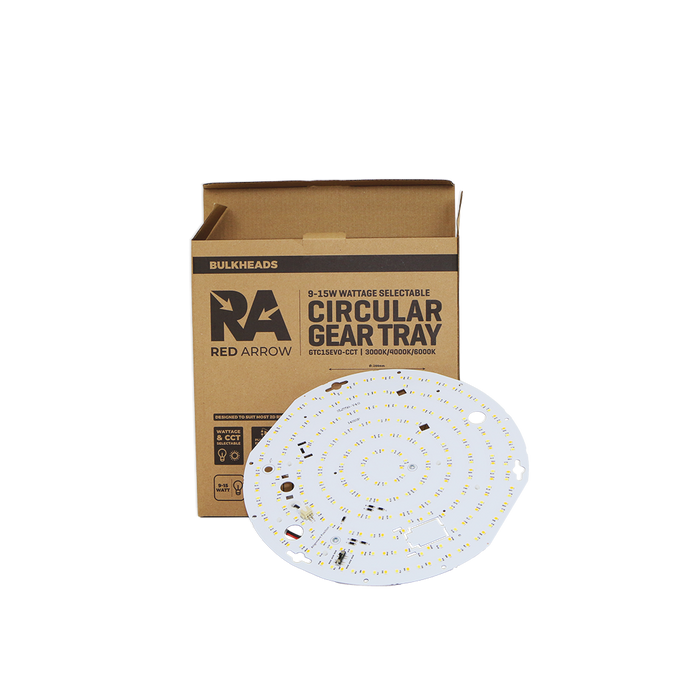

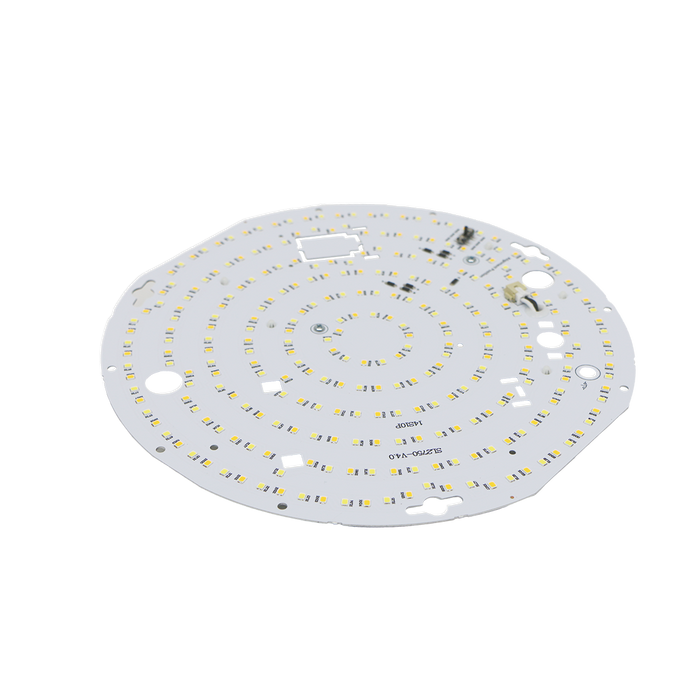

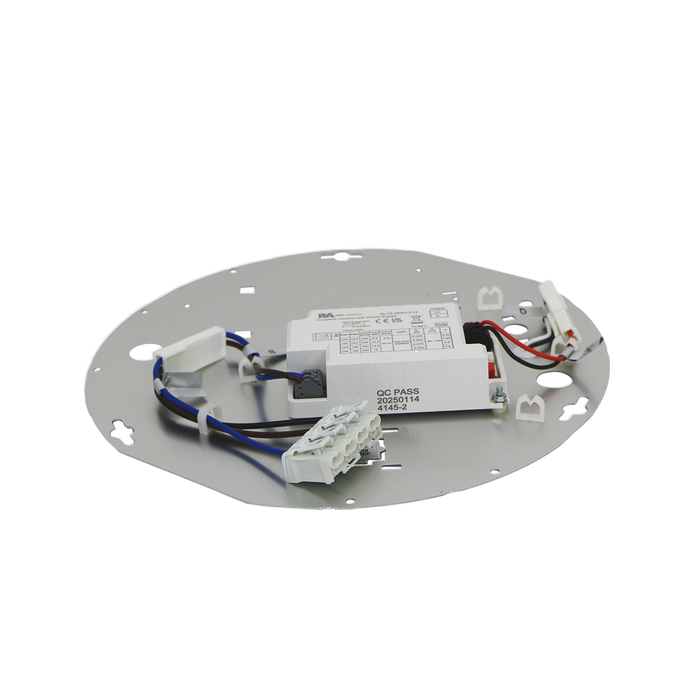

Red Arrow GTC15EVO-CCT-V2 Plug & Play Circular LED Gear Tray

Red Arrow GTC15EVO-CCT-V2 9-15W 3CCT Plug & Play Circular LED Gear Tray

The Red Arrow GTC15EVO-CCT-V2 Plug & Play Circular LED Gear Tray is a high-efficiency retrofit LED gear tray designed to upgrade compatible existing circular bulkhead fittings without necessarily replacing the complete luminaire housing.

Designed for use with Red Arrow Polo X and Robust circular bulkhead bodies, as well as a wide range of suitable legacy bulkhead housings, the GTC15EVO-CCT-V2 is an excellent solution for electricians, maintenance contractors, landlords and facilities managers upgrading older 2D fluorescent or early-generation LED bulkheads to modern high-efficiency LED technology.

With four selectable wattages, three selectable colour temperatures and up to 2570 lumens, one gear tray can cover a wide range of retrofit applications.

Ideal LED Replacement for Older 2D Bulkheads

One of the biggest SEO and practical advantages of the GTC15EVO-CCT-V2 is its retrofit capability.

Red Arrow describes its latest-generation circular gear trays as designed for the quick and easy replacement of old LED or 2D lamps.

Instead of removing an entire suitable bulkhead body, an electrician may be able to retain the existing housing and replace the internal lighting gear with a modern LED tray, subject to the required fixing centres, housing condition and internal volume.

This makes the product particularly relevant for:

2D bulkhead LED conversions
communal lighting upgrades
corridor lighting refurbishment
stairwell bulkhead upgrades
commercial maintenance projects
housing-association lighting upgrades
landlord bulkhead replacements

For customers searching for an LED replacement for a 2D bulkhead, this is one of the strongest use cases for the GTC15EVO-CCT-V2.

Four Selectable Wattages

The GTC15EVO-CCT-V2 allows the installer to select:

9W – 1500 lumens
11W – 1826 lumens
13W – 2158 lumens
15W – 2570 lumens

This means one product can be configured for several different lighting requirements.

For example, a lower wattage may suit smaller corridors or communal spaces, while the 15W setting can provide substantially greater illumination where a brighter bulkhead is required.

This power-selectable design can also help wholesalers, contractors and facilities teams reduce the number of separate products they need to stock.

Up to 2570 Lumens

At its maximum 15W setting, the GTC15EVO-CCT-V2 delivers approximately 2570 lumens.

That provides a strong level of illumination for a compact circular gear tray and makes it particularly attractive for upgrading older fluorescent bulkheads where improved efficiency and useful light output are required.

Very High Efficiency – Up to 171lm/W

Red Arrow’s current product page rates the GTC15EVO-CCT-V2 at an impressive 171 lumens per watt.

This high efficacy is one of the strongest technical selling points for commercial retrofit work.

When upgrading large numbers of communal or commercial bulkheads, improved lighting efficiency can help reduce the total electrical load associated with the lighting installation.

3CCT Selectable – 3000K, 4000K or 6000K

The installer can choose between three colour temperatures:

3000K – Warm White
Suitable where a softer, warmer atmosphere is preferred.

4000K – Neutral White
A strong all-round option for corridors, stairwells, communal areas, offices and commercial circulation spaces.

6000K – Daylight White
Provides a cooler, brighter-looking appearance for functional locations.

This means contractors no longer need to carry separate fixed-colour gear trays for every project.

Designed for Polo X and Robust Bulkheads

The GTC15EVO-CCT-V2 is specifically designed for use with Red Arrow Polo X and Robust empty-body circular bulkheads.

It is also suitable for a range of older or third-party bulkhead housings where the fixing centres and available internal volume are suitable.

This compatibility makes it particularly useful for ongoing maintenance estates where several generations of bulkhead fittings may already be installed.

Retrofit Into Legacy Bulkhead Housings

Red Arrow also positions this gear tray as suitable for a wide range of legacy bulkhead housings.

The installation instructions recommend that where the tray is fitted into a housing not supplied by Red Arrow, the internal volume should be at least approximately 3500cm³ / 3.5 litres for thermal considerations.

This is an important specification for electricians because a retrofit LED tray should not simply be installed into any old bulkhead without checking physical and thermal suitability.

Plug & Play Emergency Upgrade

The GTC15EVO-CCT-V2 is compatible with Red Arrow's current PLUG/BUL/EMST Plug & Play emergency kit.

This optional kit allows a compatible gear-tray installation to be upgraded with 3-hour emergency operation and selectable self-test/manual-test functionality.

That can be particularly valuable in corridors, stairwells and communal areas where emergency lighting is required.

Plug & Play Microwave Sensor with Corridor Function

The gear tray is also compatible with the PLUG/MSCF Plug & Play microwave sensor.

This accessory provides movement-based lighting control and includes a programmable corridor function, allowing suitable installations to operate differently depending on occupancy.

This can be useful in communal blocks, corridors, stairwells and commercial circulation spaces where lights do not necessarily need to operate at full output continuously.
