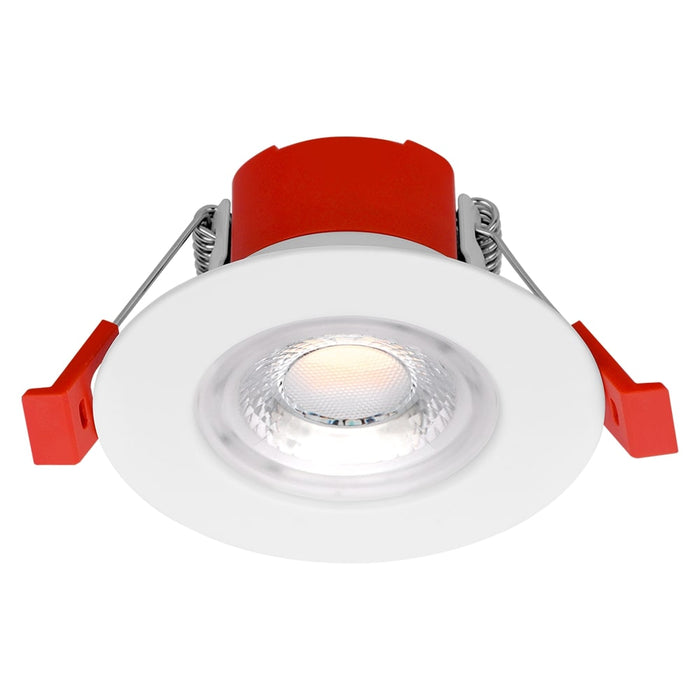

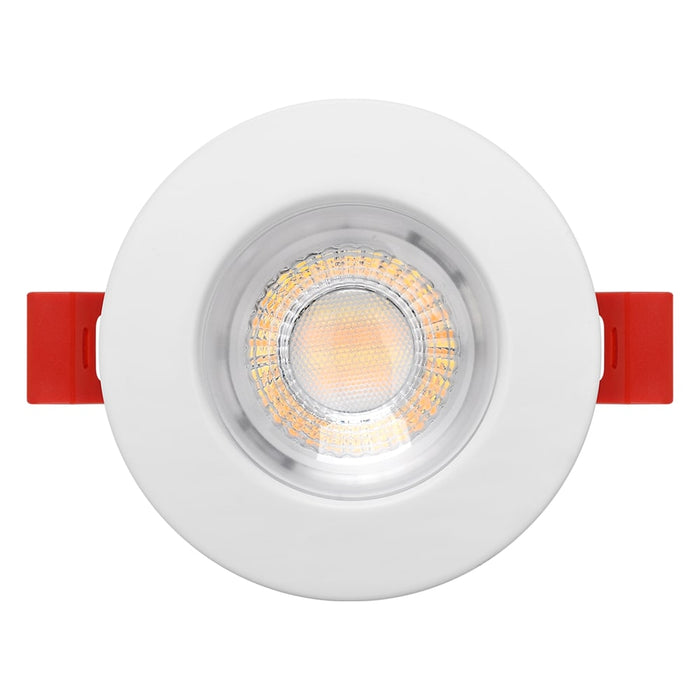

Red Arrow BA/W Bella Fire Rated LED Downlight IP65 6W 3CCT Dimmable

Red Arrow BA/W Bella Fire Rated LED Downlight IP65 6W 3CCT Dimmable

SKU BA/W
£7.25 - £7.25
£7.25 inc VAT £6.04 exc VAT
£7.25 - £7.25
£7.25 inc VAT £6.04 exc VAT inc VAT £6.04 exc VAT
Datasheet

Estimated delivery time: Next working day

Description

The Red Arrow BA/W Bella Fire Rated LED Downlight is designed to provide a fast, reliable and professional lighting solution for domestic and light commercial installations.

Combining fire-rated protection, IP65 ingress protection and selectable colour temperatures in one fitting, the Bella offers installers greater flexibility while reducing the need to carry multiple product variants.

The integrated 6W LED module delivers up to 660 lumens and allows colour temperature selection between 3000K Warm White, 4000K Cool White and 6500K Daylight. This makes the downlight suitable for kitchens, bathrooms, hallways, bedrooms, utility rooms and communal areas.

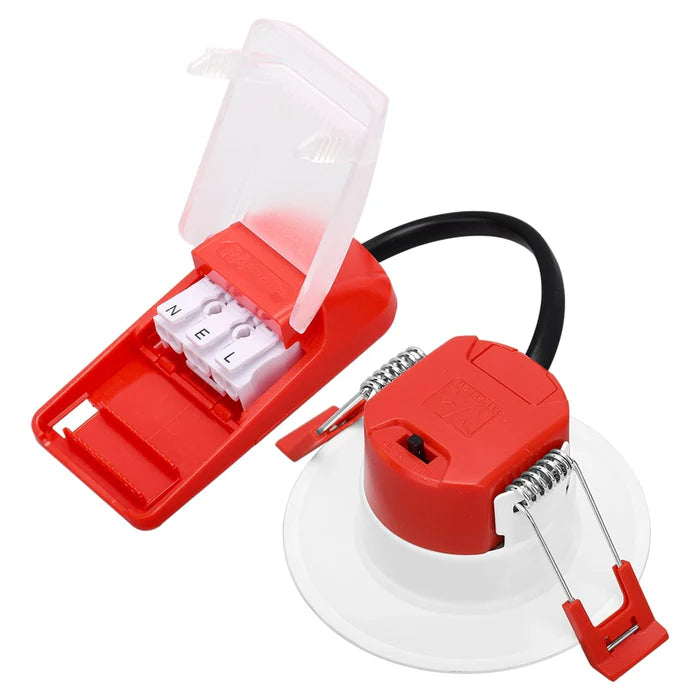

Designed with electricians in mind, the Bella features push-fit terminals and loop in/loop out wiring capability, helping to speed up installation times and simplify wiring on site. The fitting is also fully dimmable, allowing users to create the desired lighting atmosphere while improving energy efficiency.

With an IP65 rating from below ceiling level, the Bella is suitable for bathroom installations, including shower room applications. Fire-rated construction provides additional protection for ceiling integrity in the event of a fire.

Whether used in new-build housing, refurbishment projects or residential developments, the Bella delivers a practical, energy-efficient and installer-friendly lighting solution.

Key Benefits

• Fire rated construction
• IP65 bathroom rated
• Dimmable LED driver
• Selectable 3000K, 4000K and 6500K
• Push-fit terminals
• Loop in / loop out wiring
• Optional interchangeable bezels
• Suitable for bathrooms and living spaces
• Quick installation
• Modern low-profile design
• 3-year warranty

Specification

The Red Arrow BA/W Bella LED Downlight is a compact 6W fire-rated LED downlight designed for modern residential and light commercial interiors, including living rooms, bedrooms, kitchens, hallways and bathrooms. It delivers 660 lumens at 110lm/W and offers 3000K, 4000K and 6500K selectable CCT, allowing installers to choose warm white, neutral white or daylight from one fitting.

The BA/W is dimmable, has IP65 protection from below the ceiling, and is fire rated for both standard timber joist and I-joist ceiling construction. Installation is simplified with push-fit loop-in/loop-out terminals, while its white RAL9003 finish, 55mm cut-out, 86mm diameter and 46mm depth make it suitable for compact ceiling spaces. It also features a 60° beam angle, Class II construction, IK04 rating and 30,000-hour L70B50 LED life, backed by a 3-year warranty.

FAQ's

Is the Bella suitable for bathrooms?

Yes. The Bella is IP65 rated from below the ceiling, making it suitable for bathroom installations including areas exposed to moisture and steam.

Can I use the same downlight throughout an entire house?

Yes. Because the Bella offers 3000K, 4000K and 6500K settings, many installers use one product throughout the property and simply adjust the colour temperature room by room.

Does it support loop in and loop out wiring?

Yes. The integrated terminals are designed to support loop in/loop out wiring, helping reduce junction boxes and speeding up installation.

Can this be used on a dimmer switch?

Yes. The Bella features a dimmable driver and is designed to work with compatible LED dimmers

What makes a fire-rated downlight important?

Fire-rated downlights help maintain the fire integrity of the ceiling by slowing the spread of fire through ceiling openings, which is particularly important in residential properties.
