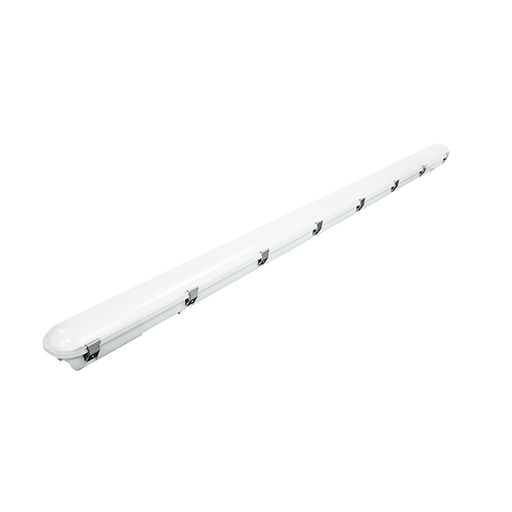

Ovia OV80182MW 70W 1800mm Linear LED Utility Luminaire With Microwave Sensor CW IP65

Ovia OV80182MW 70W 1800mm Linear LED Utility Luminaire With Microwave Sensor CW IP65

SKU OV80182MW
£43.30 - £43.30
£43.30 inc VAT £36.08 exc VAT
£43.30 - £43.30
£43.30 inc VAT £36.08 exc VAT inc VAT £36.08 exc VAT

Estimated delivery time: Next working day

Description

Ovia OV80182MW 70W 1800mm Linear LED Utility Luminaire With Microwave Sensor CW IP65

Specification
  • Continuous Operating Voltage (AC) (Hz) 220-240 (50)
  • Safety Class I
  • Circuit Wattage (W) 70
  • LED Wattage (W) 70
  • Input Current (mA) 350
    Inrush Current/Time 4A (94ms)
  • Power Factor >0.9
  • Operating Temperature (°C) -20 to +40
  • Critical Temperature (°C) +90
  • Input Terminations 4 Pole Push Fit Terminals
  • Cable Input Accessories 20mm IP68 Nylon Gland Supplied
  • Colour Temperature (K) 4000
  • Colour Render Index (CRI) >80
  • Typical Luminous Flux (lm) 8400
  • Efficacy (lm/W) 120
  • Beam Angle (°) 105
  • LED Lifetime (L70) (Hours) 50000
  • Mounting Detection Range (m) 14 (Ceiling), 10 (Wall)
  • Detection Area Settings (%) 10 / 50 / 75 / 100
  • Minimum Detection Angle (°) 30
  • Maximum Detection Angle (°) 150
  • Daylight Threshold Settings (Lux) 2 / 10 / 50 / Disable
  • HF System 5.8GHz ±75MHz
  • Master/Slave Facility Up to 400W
  • Hold Time Settings 5s / 90s / 5min. / 15min.

Datasheet

Product Dimensions

1800 (L) x 96 (W) x 83 (D)
