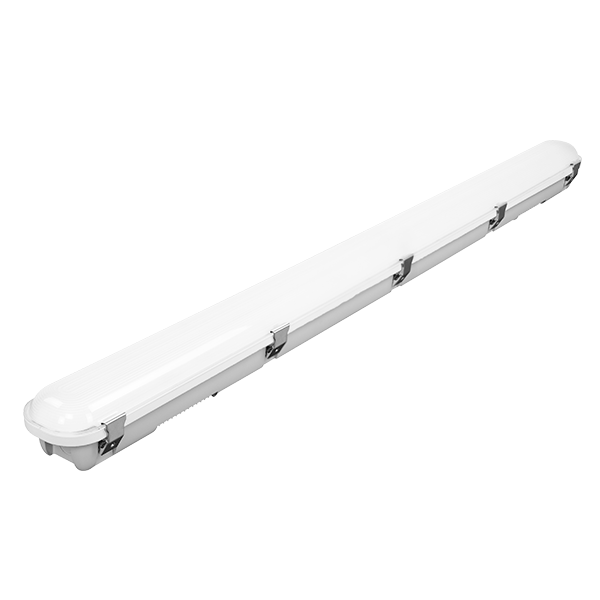

Ovia OU648-E 1800mm IP65 Emergency LED Batten

The Ovia OU648-E is a high-performance emergency LED batten designed for demanding commercial and industrial environments where reliability, durability and emergency compliance are essential.

Part of the Ovia U-Lux range, this 1800mm anti-corrosive luminaire combines powerful illumination with integrated emergency functionality, making it ideal for warehouses, distribution centres, workshops, plant rooms, service corridors and utility spaces.

The innovative power-switchable design allows installers to select between 24W, 31W, 40W or 48W outputs from a single fitting, delivering up to 7,680 lumens while reducing stockholding requirements across projects. During a mains power failure, the integrated maintained emergency pack provides a minimum 3-hour emergency duration, helping occupants safely navigate the building and supporting emergency lighting compliance.

Built for harsh environments, the OU648-E features an IP65-rated housing, IK08 impact resistance and robust polycarbonate construction. Push-fit terminals and an anchored diffuser simplify installation and maintenance, helping contractors complete projects faster.

Combining energy efficiency, emergency protection and installation flexibility, the OU648-E is an ideal solution for both retrofit upgrades and new-build commercial lighting projects.

Key Benefits

• Integrated maintained emergency lighting
• Minimum 3-hour emergency duration
• Selectable wattages: 24W, 31W, 40W or 48W
• Delivers up to 7,680 lumens
• IP65 dust and water protection
• IK08 impact resistance
• 160 lm/W high efficacy performance
• Fast installation with push-fit terminals
• Suitable for industrial and commercial environments
• 5-year manufacturer warranty

Datasheet

Why do many warehouses choose emergency battens instead of separate emergency bulkheads?

Emergency battens can provide both normal and emergency illumination from a single fitting, reducing installation complexity, lowering material costs and improving visual consistency across the lighting scheme. They are particularly effective in large open areas where standard bulkheads may not provide adequate coverage.

Is it better to use maintained or non-maintained emergency lighting in industrial buildings?

This depends on how the space is used. Maintained emergency lighting is often preferred in areas occupied during working hours because the fitting operates as part of the normal lighting system and automatically continues during power loss. This can improve occupant confidence and visibility during emergency situations.

How does power-switchable lighting benefit contractors?

Power-switchable luminaires allow output levels to be adjusted during commissioning without changing the fitting. This reduces the number of product variants required on-site and helps contractors adapt to lighting calculation changes without costly replacements.

Why is IK08 impact protection important in warehouses and factories?

Industrial environments expose luminaires to accidental impacts from ladders, pallet trucks, stock movement and maintenance equipment. IK08-rated fittings provide additional protection against damage, helping reduce maintenance costs and downtime.

Why are anti-corrosive battens commonly used in utility and industrial environments?

Anti-corrosive luminaires are designed to withstand dust, moisture and challenging operating conditions that can shorten the lifespan of standard commercial fittings. Their sealed construction makes them particularly suitable for warehouses, workshops, loading bays and service areas.
