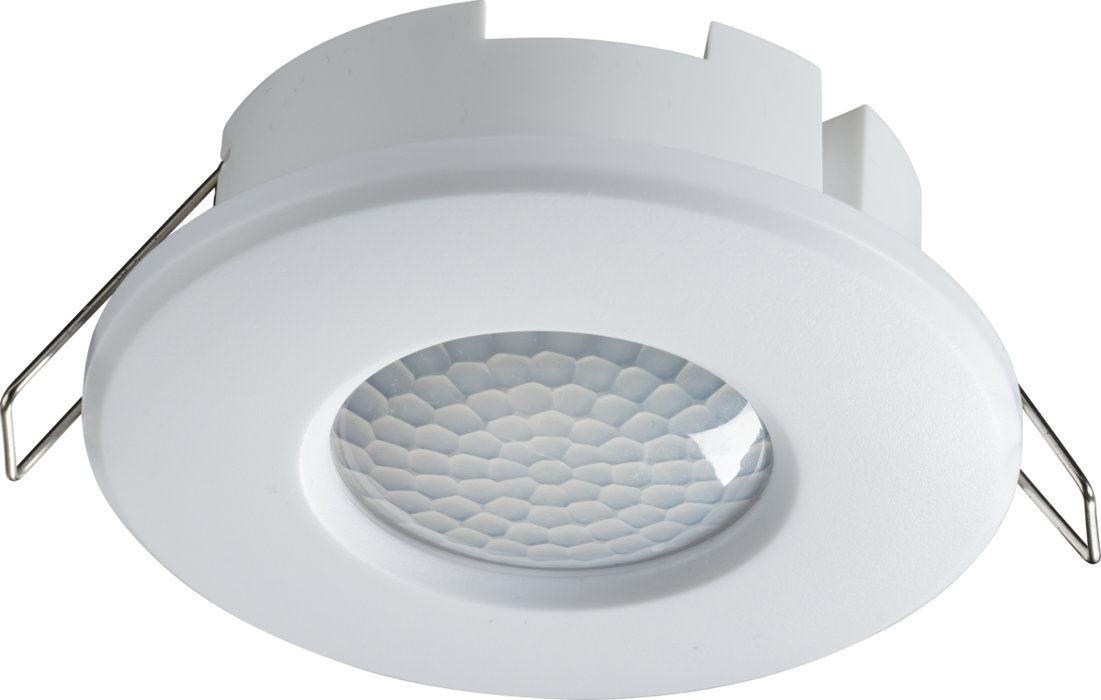

Knightsbridge OS0025W PIR Sensor 2 in 1 IP20 360° Surface or Recess Mounting - White

Knightsbridge OS0025W PIR Sensor 2 in 1 IP20 360° Surface or Recess Mounting - White

SKU OS0025W
£9.83 - £9.83
£9.83 inc VAT £8.19 exc VAT
£9.83 - £9.83
£9.83 inc VAT £8.19 exc VAT inc VAT £8.19 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

The Knightsbridge OS0025W is an IP20 360° 2-in-1 PIR ceiling sensor designed for indoor lighting control. It can be installed as either a recessed PIR sensor using a 73mm cut-out or as a surface-mounted sensor using the included surface box, making it a flexible option for electricians working across domestic, commercial and refurbishment projects.

This white PIR sensor provides a 360° field of detection with an 8m range and includes adjustable lux and adjustable time delay settings from 10 seconds to 7 minutes. It is suitable for controlling lighting in offices, corridors, toilets, store rooms, utility areas, stairwells, reception areas and other indoor spaces where automatic occupancy-based switching is required.

The OS0025W supports parallel wiring and offers a switching capacity of up to 2000W incandescent or 1000W LED. With Class II construction, a polycarbonate body, compact 93mm diameter and 36mm projection, it is a practical trade lighting control product for wholesalers, electrical contractors and facilities maintenance teams.

Specification

OS0025W datasheet

FAQ's

Can the Knightsbridge OS0025W be installed as both surface and recessed?

Yes. The OS0025W is a 2-in-1 PIR ceiling sensor that can be installed either recessed or surface mounted. For recessed installation, it uses a 73mm cut-out and includes pre-fitted ceiling springs. For surface mounting, the springs can be removed and the supplied surface box used.

Is the OS0025W suitable for outdoor use?

No. The OS0025W is rated IP20, which means it is intended for indoor use only. It should not be installed outdoors or in areas where moisture, water spray or exposed weather conditions are present.

What is the adjustable time delay range?

The adjustable time delay range is 10 seconds to 7 minutes. This allows electricians to set how long the connected lighting remains on after motion is detected, depending on the usage pattern of the room or area.

What is the maximum switching capacity?

The OS0025W has a switching capacity of up to 2000W incandescent or 1000W LED. This makes it suitable for a wide range of indoor lighting control applications, provided the total connected load remains within the manufacturer’s stated rating.

What are the key installation dimensions?

The OS0025W has a 93mm diameter, 36mm projection, 28mm recessed depth and requires a 73mm cut-out diameter for recessed mounting. These dimensions should be checked against ceiling void depth and installation location before fitting
