Kewtech KT66EVA Digital Multifunction 12-in-1 with KEWEVA

Kewtech KT66EVA Digital Multifunction 12-in-1 with KEWEVA

SKU KT66EVA
Sold out
£1,439.94 - £1,439.94
£1,439.94 inc VAT £1,199.95 exc VAT
£1,439.94 - £1,439.94
£1,439.94 inc VAT £1,199.95 exc VAT inc VAT £1,199.95 exc VAT
Availability:
Out of stock

Estimated delivery time: 1-2 working days

Description

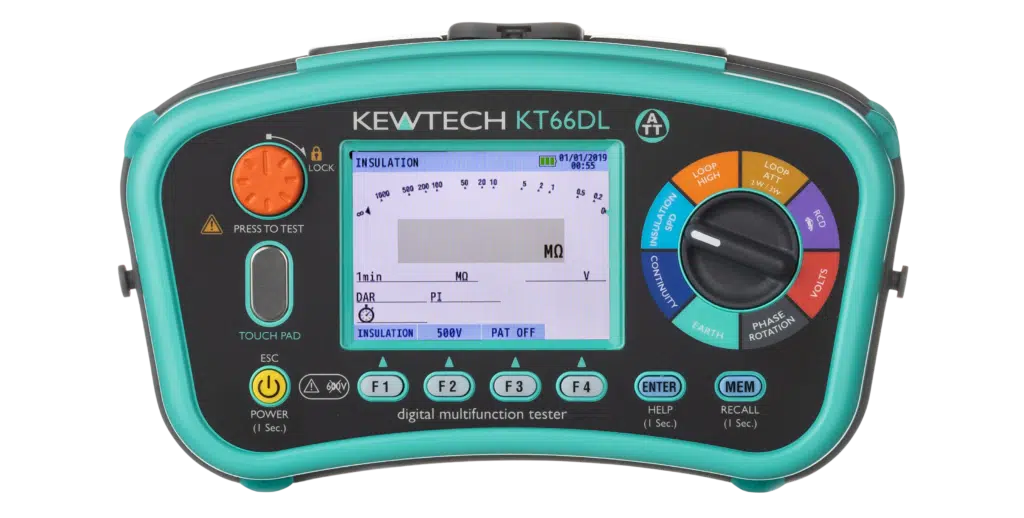

Kewtech KT66EVA Multifunction Tester Kit – EV Charge Point Testing & 12-in-1 Electrical Installation Tester



The Kewtech KT66EVA is a professional-grade multifunction tester kit designed for EV charge point commissioning and electrical installation testing. Combining the powerful KT66DL 12-in-1 tester with the KEWEVA EV adaptor, it delivers a complete, compliant solution for modern electricians.

Built for domestic, commercial, and industrial applications, this advanced tester ensures accurate, safe, and efficient testing across all installation types, including EV systems





#kewtechkt66eva

Specification
  • Large colour dot matrix screen
  • Established easy to use interface with one rotary dial and four function keys
  • Includes KEWEVA adapter for simple testing EV charging points
  • Simultaneous display of L-N, L-N, L-E voltage (TRMS)
  • Max Zs tables for current and old standards
  • Comprehensive RCD function including type EV & B and variable RCD test
  • Three modes of starting a test: single press of the test button, continuous testing and by test button in the test probe
  • Advanced memory - assigns DB, circuit no. ad type of test i.e. Zs or Ze
  • Help display
  • Touch voltage pad with selectable limits
  • Padded neck strap

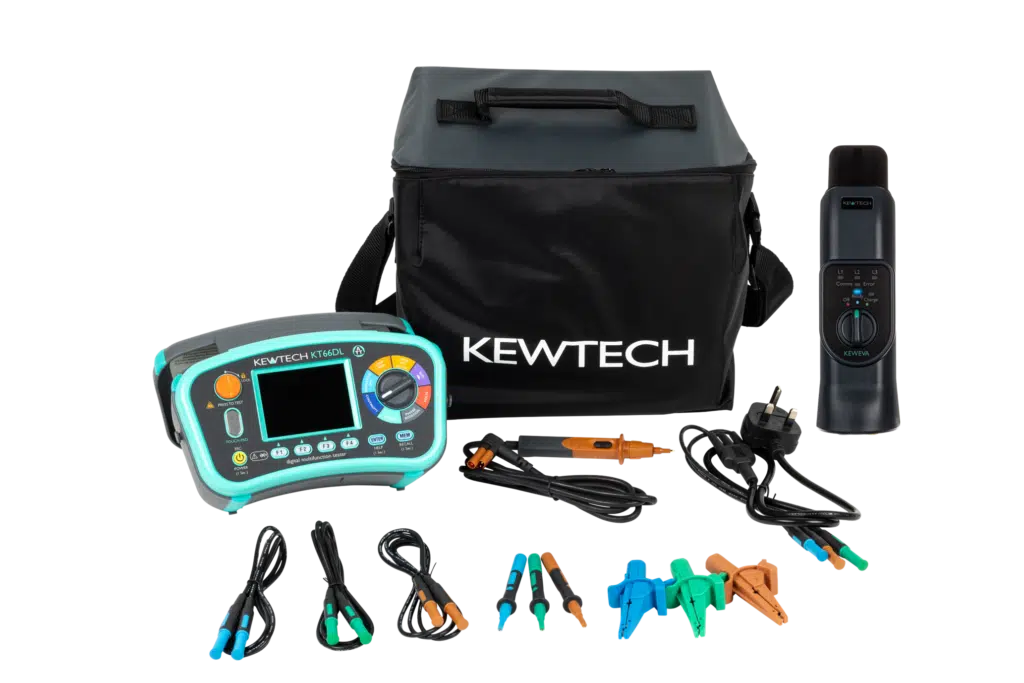

  • Comes complete with KT66DL, KEWEVA, soft canvas bag, mains lead, DB leads, remote test probe and software
  • Two high current loop options: 25A 0.001 Ohm resolution & 6A 0.01 Ohm resolution
  • Two low current loop options: 3 wire & 2 wire
  • 55V loop test capability - suitable for 110V CTE systems
  • EVSE loop option
  • RCD - Tests Type AC, ACS, A, AS, F, B, BS & EV
  • EVSE 6mA DC ramp and tripping time test
  • UC - contact voltage test
  • Insulation: 4 test voltages, resistance bar graph &  DAR / PI functionality
  • Two continuity tests 200mA & 15mA
  • Dual display of PFC / PSC with a PFC range of 50KA
  • SPD testing with both DC & AC breakdown voltage displayed, 1000V range
  • Earth resistance 3 & 2 wire options
  • Phase rotation
  • PAT function including download
  • True RMS Voltage measurements 2-600V, mains frequency
  • Advanced memory

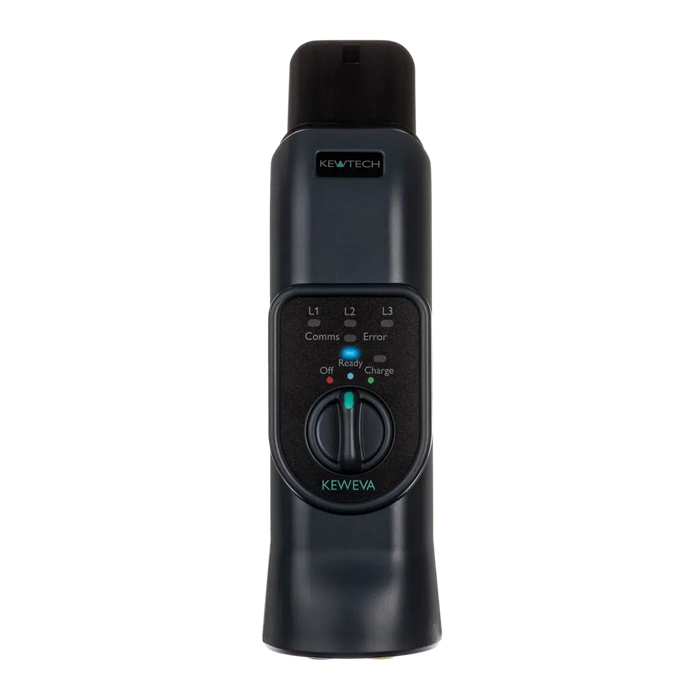

  • KEWEVA - For type 2 charge points
  • Comms light - auto check of control pilot (CP)
  • Single and three phase charger compatibility
  • Single dial operation
  • Compact unit with no cable

Datasheet
