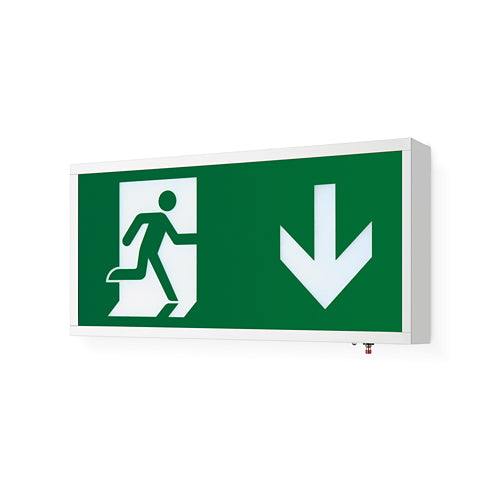

The JCC JCEM110018WH EscapeLUX Emergency Exit Box is a white self-test emergency exit sign designed for commercial, industrial and public buildings. Supplied with directional arrow and left/right running-man legends, it provides a complete emergency escape-route lighting solution for electricians, contractors and facilities managers.

Suitable for wall or ceiling mounting, the JCC EscapeLUX exit box can be surface-mounted or fixed to a BESA box. Its versatile installation options make it suitable for offices, schools, shops, warehouses, hospitals, hotels, apartment buildings and other premises requiring clearly visible emergency exit signage.

The JCEM110018WH emergency exit light can operate in either maintained or non-maintained mode. Maintained operation keeps the exit sign illuminated continuously, while non-maintained operation activates the light when the normal mains supply fails. Its self-test functionality helps automate routine operational checks and reduces the time required for manual emergency-lighting inspections.

With a 34-metre viewing distance, this LED exit box helps occupants identify escape routes from larger rooms, corridors and open commercial areas. It produces a 6000K white emergency light with a 20-lumen output and wide 130-degree beam angle.

A lithium LiFePO4 emergency battery provides dependable backup performance. JCC supplies the fitting with a five-year warranty that also includes five years of battery cover, offering additional reassurance for commercial installations and maintenance contracts.

The white, Class II enclosure measures 391 × 190 × 60mm and carries an IP20 rating for dry indoor locations. DALI-compatible versions are also available within the wider EscapeLUX range for projects requiring central monitoring and lighting-control integration.

Key Features

• Self-test emergency exit box
• Maintained or non-maintained operation
• White finish
• Directional arrow and running-man legends included
• 34-metre viewing distance
• Wall or ceiling mounting
• Surface or BESA-box installation
• 6000K emergency illumination
• 20-lumen emergency output
• IP20 rated
• Class II construction
• Lithium LiFePO4 battery
• Dimensions: 391 × 190 × 60mm
• Five-year fitting and battery warranty
• DALI versions available within the range
