Description

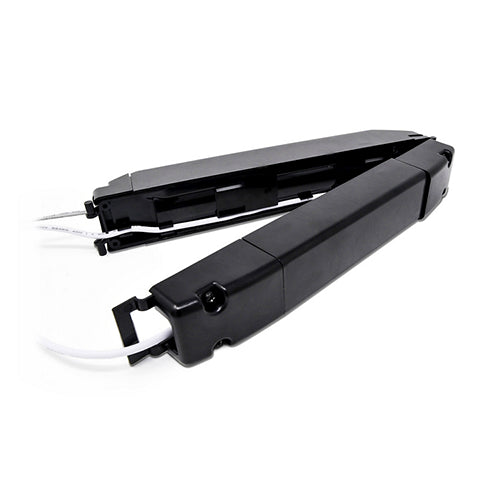

JCC JCEM002DALI DALI-Addressable Emergency Remote Pack

Convert a compatible JCC LED panel or recessed luminaire into a centrally monitored emergency fitting with the JCC JCEM002DALI emergency remote pack. Designed for DALI emergency-lighting systems, it allows compatible emergency equipment to be individually addressed, monitored and tested through an appropriate DALI control system.

The JCEM002DALI is an emergency conversion accessory rather than a complete light fitting. It is intended for selected JCC Skytile LED panels and compatible JCC recessed products. The exact luminaire, driver, electrical load and connector compatibility must be confirmed before ordering.

DALI-addressable emergency monitoring

Once correctly installed, addressed and commissioned, the pack can communicate with a compatible DALI emergency-lighting system. This allows facilities teams to monitor emergency equipment and manage testing from a suitable central control arrangement.

The pack does not include a DALI controller, commissioning interface or compatible luminaire. These elements must be specified separately as part of the complete emergency lighting system.

Three-hour battery-backed emergency operation

The integrated 3.2V 4.4Ah LiFePO₄ battery provides a minimum three-hour emergency duration following the required 24-hour recharge period.

During a mains failure, the remote pack supplies the connected compatible luminaire at a reduced emergency output. The resulting light level depends on the connected fitting, its normal wattage, LED characteristics and optical performance.

JCC’s current technical information lists a maximum emergency output of 3W. For example, when connected to a compatible 10W luminaire, the indicative emergency light-output ratio is calculated as:

3W ÷ 10W × 100 = 30%

This percentage is a power-based calculation and must not be treated as a guaranteed lumen figure. Emergency illumination and spacing must be confirmed using the relevant photometric data.

FAQ's

What is the JCC JCEM002DALI Emergency Remote Pack?

The JCC JCEM002DALI is a DALI-addressable emergency conversion pack for selected JCC Skytile panels and compatible JCC recessed luminaires. It adds battery-backed emergency operation and DALI emergency monitoring to an approved fitting.

Is the JCC JCEM002DALI a complete emergency light fitting?

No. JCEM002DALI is an emergency remote pack and does not include an LED panel, downlight or other luminaire. A compatible JCC fitting and suitable DALI emergency control system are required separately.

Which luminaires are compatible with the JCC JCEM002DALI Remote Pack?

JCC describes the pack as suitable for Skytile LED panels and compatible JCC recessed products. Compatibility must be checked against the exact luminaire code, driver, operating voltage and connector arrangement before installation.

What does the DALI function on the JCC JCEM002DALI Emergency Pack provide?

DALI addressability allows the emergency equipment to communicate with a compatible DALI emergency-lighting system. This can support central monitoring, scheduled testing and fault reporting when the system has been correctly commissioned.

What emergency output does the JCC JCEM002DALI Remote Pack provide?

JCC’s current technical table lists a maximum 3W emergency output. The actual emergency lumen output depends on the compatible connected luminaire and must be verified using the appropriate photometric information.

How long does the JCC JCEM002DALI Emergency Pack operate during a power failure?

The LiFePO₄ battery is designed to provide a minimum three-hour emergency duration after being fully charged. A complete recharge requires approximately 24 hours.

Does the JCC JCEM002DALI operate as a maintained emergency system?

The manufacturer’s product data identifies it as a maintained-only emergency accessory. The connected compatible luminaire operates normally from its standard supply and changes to reduced battery-backed output when the mains supply fails.

Where should the JCC JCEM002DALI Emergency Remote Pack be installed?

The pack is intended for installation within a suitable indoor ceiling void. It requires sufficient space for ventilation, wiring, inspection and battery servicing and must not be covered with thermal insulation.
