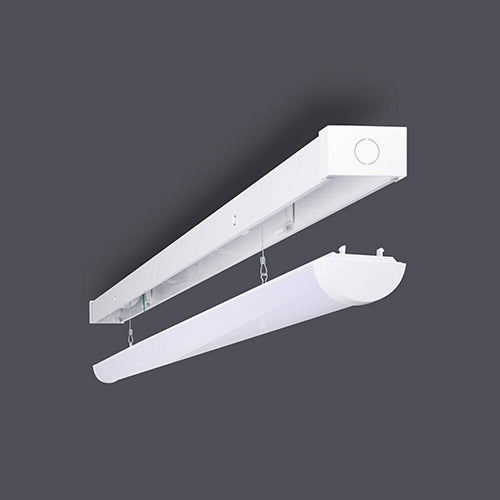

JCC JC71745 6FT54W Single Skypack Quick Release LED Batten

SKU JC71745
Original price £28.01 - Original price £28.01
Original price
£28.01 inc VAT £23.34 exc VAT
£28.01 - £28.01
Current price £28.01 inc VAT £23.34 exc VAT inc VAT £23.34 exc VAT

Estimated delivery time: Next working day

Description

The JCC JC71745 Skypack QR 6ft Single LED Batten provides powerful, energy-efficient illumination for large indoor commercial and industrial spaces. Delivering an impressive 6,480 lumens from only 54W, this high-output LED batten offers excellent efficiency of 120 lumens per watt, making it a cost-effective alternative to traditional fluorescent batten fittings.

Its 4000K neutral white light produces a bright, clear working environment suitable for offices, workshops, warehouses, stockrooms, schools, corridors, retail units and utility areas. The wide 120° beam angle distributes light evenly across larger spaces, helping minimise dark areas and improve visibility.

Created with fast installation in mind, the JCC Skypack QR features intelligent quick-release buttons, a suspended LED tray and press-fit loop-in/loop-out terminals. Rear and end conduit entry points give electricians additional flexibility when surface mounting the fitting.

Finished in clean white and measuring approximately 6ft in length, the JCC JC71745 LED batten offers reliable everyday performance, straightforward installation and a reassuring five-year manufacturer’s warranty. Its IP20 rating makes it suitable for dry indoor environments.

Specification
  • Voltage Rating 220-240
  • Primary Running Current(Amp) 0.34
  • Inrush current(Amps)
  • Operating Frequency Hz 50/60Hz
  • Secondary running current(mA) 1400
  • Constant Current or Constant Voltage CC
  • Luminaire Circuit Wattage 54
  • Class I
  • EMC Compliant (EN55015) Yes
  • Power Factor Correction 0.9
  • Input Electrical Connections Live, Earth & Neutral
  • Dimmable No
  • Actual Lumen Output 6480
  • Lumens Per Circuit Watt 120
  • Color Rendering Index 80-89
  • CRI: Ra 80
  • Correlated Color Temperature 4000K
  • Beam Angle ° 120
  • LOR (Light Output Ratio) % 100
  • Photometry Available Yes

Datasheet

Product Dimensions
  • Length (mm) 1828
  • Width (mm) 70
  • Height (mm) 76.5
