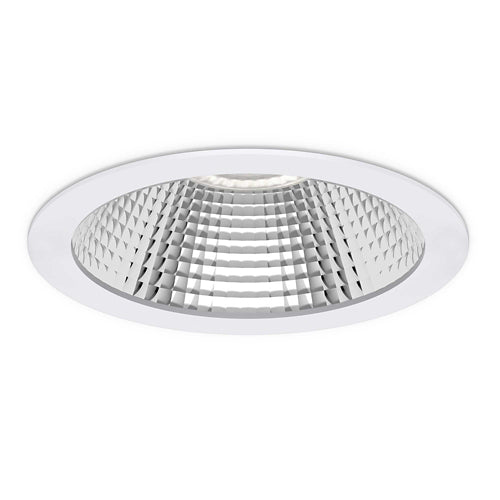

The JCC JC5506 CoraLED™ Plus Commercial Downlight is a powerful 25W recessed LED fitting designed for offices, retail premises, schools, reception areas, corridors and other large commercial spaces.

Delivering 3,300 lumens at up to 132 lumens per watt, it provides bright, efficient illumination while helping reduce energy consumption. The built-in 3CCT switch allows electricians to select 3000K warm white, 4000K neutral white or 5700K daylight white during installation.

Its UGR19 low-glare design supports comfortable workplace lighting and is designed to comply with BS EN 12464-1. A 60° beam distributes light evenly across working areas, while CRI 85 provides natural colour appearance.

The low-profile body is ideal for shallow ceiling voids and uses spring clips for straightforward installation. This standard JC5506 version includes a non-dimmable, flicker-free driver and is compatible with the JCC JCEM002 and JCEM002ST remote emergency packs.

Key Features

• 25W commercial LED downlight
• Powerful 3,300-lumen output
• Energy efficiency up to 132lm/W
• Selectable 3000K, 4000K or 5700K
• UGR19 low-glare performance
• Designed for BS EN 12464-1 workspace lighting
• Wide 60° beam angle
• CRI 85
• IP54 rated
• White finish
• Low-profile recessed construction
• Non-dimmable flicker-free driver
• 200–210mm ceiling cut-out
• 228mm overall diameter
• 60.6mm fitting depth
• Minimum 100mm ceiling void
• Spring-clip installation
• Compatible with JCEM002 emergency pack
• Compatible with JCEM002ST self-test emergency pack
• Class II construction
• Five-year warranty
• Do not cover with insulation
