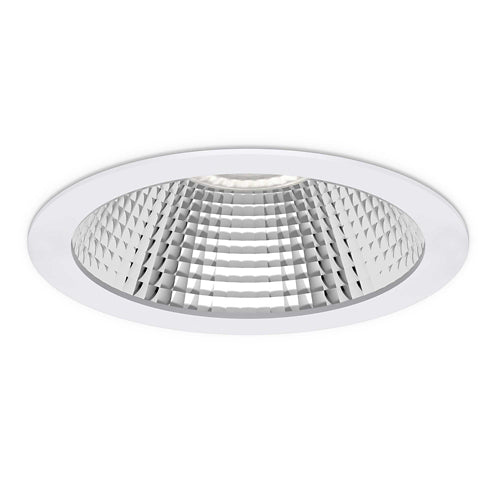

JCC JC5503 CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K

JCC JC5503 CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K

SKU JC5503
£53.35 - £53.35
£53.35 inc VAT £44.46 exc VAT
£53.35 - £53.35
£53.35 inc VAT £44.46 exc VAT inc VAT £44.46 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

The JCC JC5503 CoraLED™ Plus Commercial Downlight is a high-performance 18W recessed LED fitting designed for offices, retail spaces, schools, corridors and other professional environments. Its low-profile construction makes it suitable for shallow ceiling voids and refurbishment projects.

An integrated colour-temperature switch allows installers to select 3000K warm white, 4000K neutral white or 5700K daylight white. With a powerful 2,400-lumen output and efficiency of up to 133 lumens per watt, it provides bright, energy-efficient commercial lighting.

The UGR19 low-glare design helps support comfortable workspace illumination and is designed to comply with BS EN 12464-1. A 60° beam provides balanced light distribution, while CRI 85 helps colours and interior finishes appear natural.

This standard JC5503 model includes a non-dimmable, flicker-free driver. It is also compatible with the JCC JCEM002 and JCEM002ST remote emergency packs for projects requiring emergency-lighting functionality.

Specification
  • 18W commercial LED downlight
  • 2,400-lumen output
  • 133 lumens per watt
  • Selectable 3000K, 4000K or 5700K
  • UGR19 low-glare performance
  • Designed for BS EN 12464-1 workspace lighting
  • Wide 60° beam angle
  • CRI 85
  • IP54 rated
  • White finish
  • Low-profile recessed design
  • Flicker-free driver
  • Non-dimmable standard model
  • 200–210mm ceiling cut-out
  • 228mm overall diameter
  • 60.6mm fitting depth
  • Minimum 100mm ceiling void
  • Compatible with JCEM002 emergency pack
  • Compatible with JCEM002ST self-test emergency pack
  • Class II construction
  • Five-year warranty
  • Do not cover with insulation
FAQ's

What is the JCC JC5503?

The JCC JC5503 is an 18W commercial recessed LED downlight that produces 2,400 lumens. Electricians can select 3000K, 4000K or 5700K during installation. Its UGR19 low-glare design, IP54 protection and 60° beam make it suitable for offices, schools, shops, corridors and other commercial workspaces.
