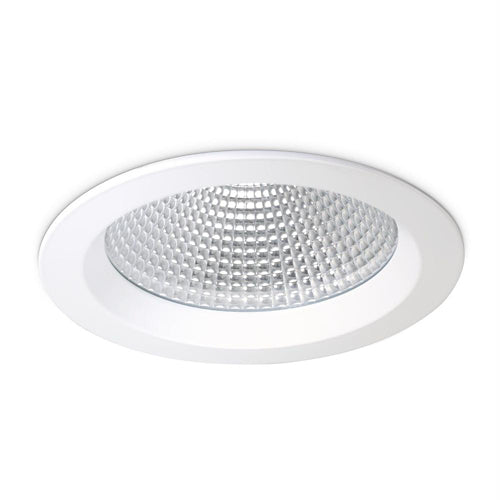

JCC JC54301 Commercial downlight IP54 25W Non-Dimmable 4000K 2700Lm

JCC JC54301 Commercial downlight IP54 25W Non-Dimmable 4000K 2700Lm

SKU JC54301
£56.05 - £56.05
£56.05 inc VAT £46.71 exc VAT
£56.05 - £56.05
£56.05 inc VAT £46.71 exc VAT inc VAT £46.71 exc VAT

Estimated delivery time: Next working day

Description

Main Features:

  • High efficiency up to 113 Lumens per circuit Watt
  • Quick & easy retrofit
  • Zero maintenance, no need to relamp
  • CRI 80, ideal for retail applications
Specification
  • Voltage Rating 220-240
  • Primary Running Current(Amp) 0.25
  • Operating Frequency Hz 50/60Hz
  • Secondary running current(mA) 600
  • Constant Current or Constant Voltage CC
  • Luminaire Circuit Wattage 25
  • Class II
  • Output Voltage Max/Range (VDC) 25-40
  • Total Harmonic Distortion (THD)% 0.2
  • EMC Compliant (EN55015) Yes
  • Input Electrical Connections Live(L)
  • Neutral(N)double insulated, no earth required
  • Dimmable No
  • Thermal Cut Out yes, auto recovery
  • Insulation Coverage do not cover
  • Minimum Free Air Space 100mm above and 50mm to sides
  • Minimum Void Requirement 150mm
  • Operating Temperature Range °C -20 to +45
  • Actual Lumen Output 2700
  • Lumens Per Circuit Watt 108
  • Color Rendering Index 80-89
  • CRI: Ra 80
    Correlated Color Temperature 4000K
    Beam Angle ° 60
    LOR (Light Output Ratio) % 100
    Photometry Available yes
Product Dimensions
  • Overall Dimensions Ø145x65mm
    Depth (mm) 65
    Diameter (mm) 145
