JCC JC180109 ToughLED™ Pro 4ft 19/25/31/37W 3000K/4000K/5700K IP66 WOP Emergency

JCC JC180109 ToughLED™ Pro 4ft 19/25/31/37W 3000K/4000K/5700K IP66 WOP Emergency

SKU JC180109
£59.62 - £59.62
£59.62 inc VAT £49.68 exc VAT
£59.62 - £59.62
£59.62 inc VAT £49.68 exc VAT inc VAT £49.68 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

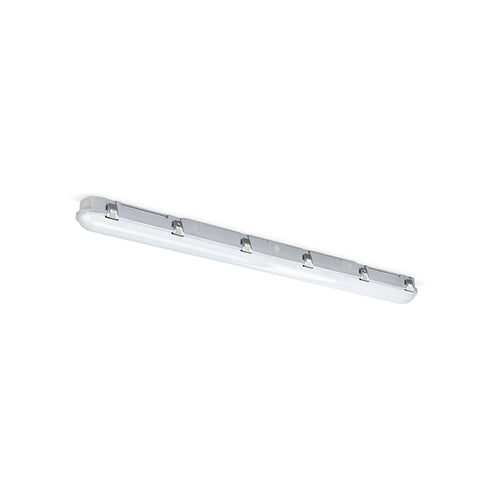

JCC ToughLED Pro JC180109 4ft IP66 Emergency LED Batten, 3CCT, Selectable Output

The JCC ToughLED Pro JC180109 is a 4ft IP66 emergency LED batten for projects needing general lighting in a demanding environment alongside a battery-backed emergency function. Its sealed grey housing has an IK10 impact rating, while the IP66 rating offers dust-tight construction and protection against powerful water jets when installed in accordance with JCC’s instructions.

It can be considered for suitable indoor or exterior applications, including storage facilities, workshops, car parks and service areas. The final location still needs checking against the mounting method, exposure, wiring and emergency lighting design. JCC describes this model as a white opal diffuser (WOP) emergency version within the ToughLED Pro CCT range.

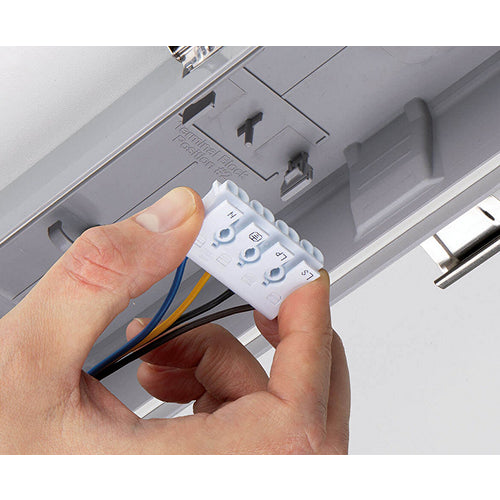

The 1,270 × 96 × 81.3mm body can be surface mounted, suspended or conduit mounted using an appropriate method. JCC highlights its 90° lock-in-place side clips, detachable four-pin terminal block, loop-in/loop-out cable restraints, broad mounting rail, BESA-friendly body and rear, side and end conduit entry options. A rear gasket helps seal the cable entry in surface-mount applications when installed correctly.



Specification

What is JCC JC180109?

The JCC ToughLED Pro JC180109 is a grey, 4ft IP66 and IK10 emergency LED batten with a white opal diffuser. Its four specified circuit wattages are 23W, 29W, 35W and 41W, producing 3,100, 4,000, 4,800 and 5,550 lumens in normal use. It offers 3000K, 4000K or 5700K selectable white light and has a LiFePO4 battery with a stated minimum three-hour emergency runtime. It measures 1,270 × 96 × 81.3mm and can be surface, suspended or conduit mounted. JC180109 is identified as the emergency variant; its published dimming field is inconsistent with its title, so microwave control should be confirmed before purchase if required.

FAQ's

Is JC180109 an emergency LED batten?
Yes. JCC specifies it as a maintained emergency model with a LiFePO4 battery.

How long does the emergency battery last during a power failure?
JCC’s JC180109 datasheet states a minimum three-hour runtime. Correct installation, initial charge, commissioning and ongoing maintenance matter.

How long does the battery take to recharge?
JCC lists a 24-hour recharge time. Follow the supplied instructions before initial emergency testing.

Is this batten IP65 or IP66?
JCC specifies IP66 for JC180109. Its stated IK10 rating addresses impact resistance separately.

Can it be used outside?
JCC’s datasheet describes the range as suitable for interior and exterior applications, and this SKU is IP66. The installer should still assess the precise exposure, mounting, cable entry and any site-specific requirements before fitting it outside.

What do IK10 and IP66 mean for a buyer?
IP66 describes dust and water ingress protection, while IK10 describes resistance to mechanical impact. They address different hazards and do not replace a site suitability check.

Can I change its wattage?
Yes. The emergency fitting’s stated circuit settings are 23W, 29W, 35W and 41W. JCC’s heading also references the broader range’s 19/25/31/37W settings; use the SKU-specific circuit figures for JC180109.
