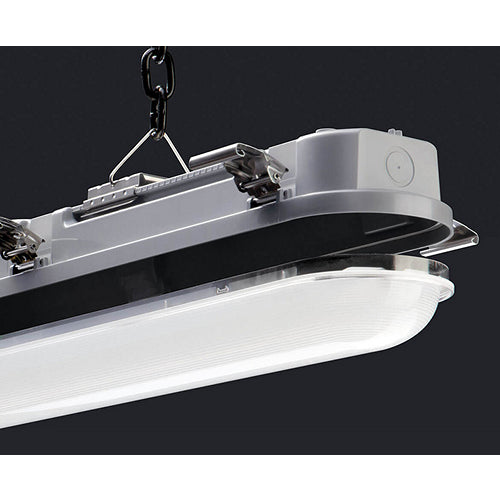

The JCC JC180073 ToughLED Pro is a powerful 6ft LED weatherproof batten designed to provide dependable, energy-efficient lighting in demanding commercial and industrial environments. Delivering an impressive 4900 lumens from only 39W, it provides bright, evenly distributed 4000K cool white illumination while helping reduce electricity and maintenance costs.

Reliable lighting for demanding areas

For customers, the JC180073 provides the strong, practical lighting needed in garages, workshops, warehouses, storage buildings, utility areas, covered car parks and busy commercial premises. The opal diffuser softens the LED output and distributes light across a wide 120° beam, helping create a brighter and more comfortable working environment.

Its IP66 weatherproof construction protects the fitting against dust and powerful water jets, while the robust IK10 impact rating provides excellent resistance against accidental knocks. These protective ratings make the ToughLED Pro particularly suitable for locations where an ordinary indoor LED batten may not provide sufficient durability.

The neutral 4000K cool white light offers good visibility without the harsh blue appearance associated with higher colour temperatures. It is an excellent choice for task lighting, general workplace illumination and replacing older fluorescent weatherproof fittings.

Designed to make installation easier

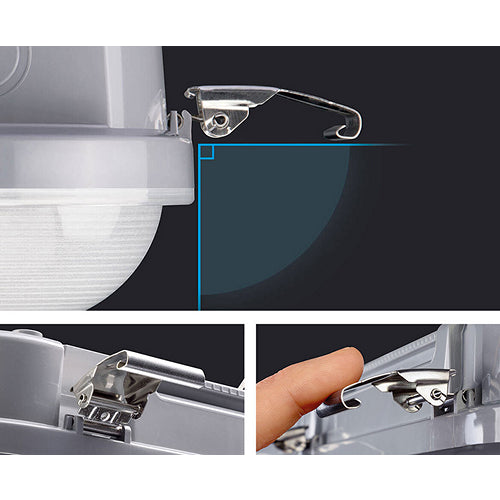

The JCC ToughLED Pro JC180073 incorporates several practical features created specifically for electricians. Lock-in-place 90° side clips remain clear while the fitting is being installed, and the detachable four-pin terminal block can be positioned beside the available cable-entry points.

Built-in loop-in and loop-out cable restraints help prevent conductors from becoming trapped when the fitting is closed. The wide mounting-bracket rail provides greater freedom when locating joists and fixing points, while the wider body is suitable for retrofitting over BESA conduit boxes.

Rear, side and end conduit-entry options give installers greater flexibility across new installations and refurbishment projects. The fitting can be surface mounted or suspended, depending on the requirements of the building.

Plug-and-play emergency and microwave sensor modules can also be added separately, allowing electricians to adapt the luminaire without replacing the complete fitting.

Key features

• JCC ToughLED Pro LED weatherproof batten
• Product code: JC180073
• 6ft single-body LED fitting
• 39W energy consumption
• 4900-lumen light output
• High efficiency of 126 lumens per watt
• 4000K cool white light
• Wide 120° beam angle
• White opal diffuser for even illumination
• IP66 dust-tight and water-jet-resistant construction
• IK10 impact resistance
• Surface or suspended mounting
• Class I electrical construction
• 220–240V mains operation
• Detachable four-pin terminal block
• Multiple rear, side and end cable entries
• Loop-in and loop-out cable restraints
• Compatible with optional emergency modules
• Compatible with optional microwave sensor modules
• Dimensions: 1870 × 96 × 81.3mm
• Operating temperature: -20°C to +50°C
• Grey polycarbonate housing
• Five-year JCC warranty
• Non-dimmable standard version
