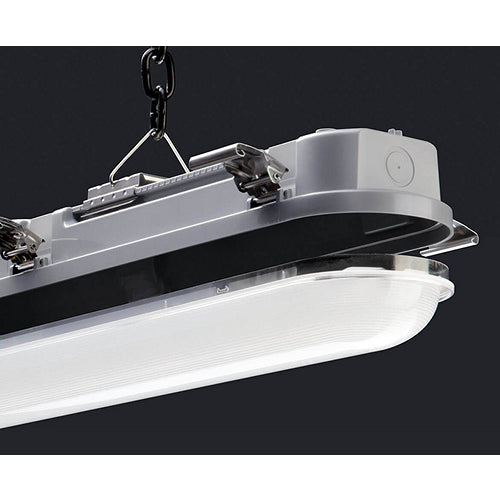

The JCC JC180065 ToughLED Pro is a high-output 6ft LED weatherproof batten created for customers who need powerful, dependable lighting in demanding commercial and industrial spaces. Producing 5300 lumens from just 39W, it delivers an excellent efficiency of 136 lumens per watt, making it a practical replacement for older fluorescent battens.

Bright, practical lighting for working environments

The JC180065 provides strong 4000K cool white illumination, helping improve visibility across warehouses, workshops, garages, plant rooms, storage facilities, utility areas, covered car parks and agricultural buildings.

Its frosted diffuser reduces the direct appearance of the LEDs while maintaining the fitting’s high 5300-lumen output. A wide 120° beam distributes light across a larger area, helping customers achieve more useful general illumination with fewer dark spots.

The fitting is protected by an IP66-rated enclosure, making it dust-tight and resistant to powerful water jets. Its robust IK10 impact rating provides additional protection against accidental knocks in busy working environments.

Practical features for electricians

The JCC ToughLED Pro JC180065 has been designed to reduce installation time and make cable management easier. Its lock-in-place 90° side clips stay clear while the body is being mounted, giving electricians easier access to the internal connections.

A detachable four-pin terminal block can be positioned beside the available cable entries, while built-in loop-in and loop-out cable restraints help prevent wires from being trapped when the fitting is closed.

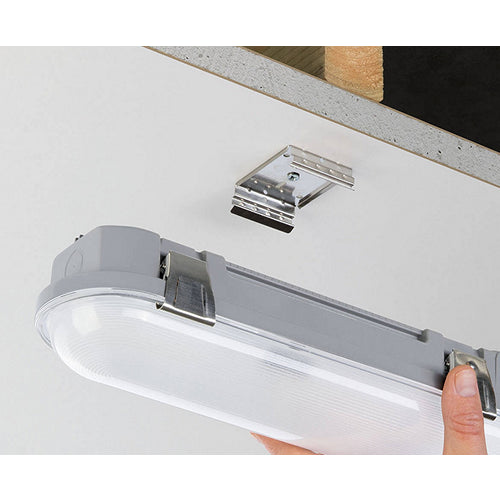

The ultra-wide mounting rail provides more flexibility when locating ceiling joists and existing fixing points. Rear, side and end conduit entries support different wiring routes, and the wide body is suitable for retrofitting over BESA conduit boxes.

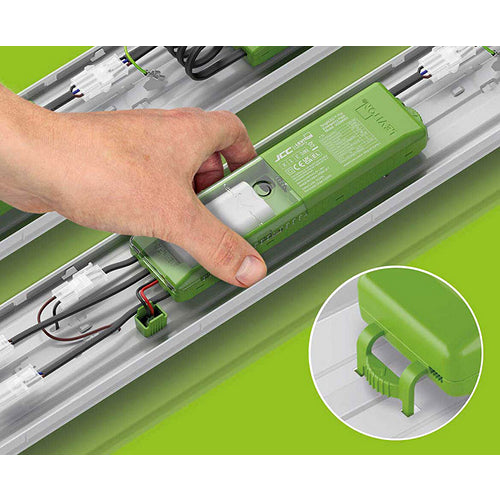

The batten can be installed directly onto a wall or ceiling, suspended from chains or mounted using conduit. Optional plug-and-play emergency and microwave sensor modules allow the standard fitting to be upgraded when required.

Key features

• JCC ToughLED Pro weatherproof LED batten
• Product code: JC180065
• 6ft single LED fitting
• High-output frosted diffuser
• 39W power consumption
• 5300-lumen light output
• Excellent 136lm/W efficiency
• 4000K cool white colour temperature
• Wide 120° beam angle
• CRI 80 colour rendering
• IP66 dust and water protection
• IK10 impact resistance
• Surface, suspended or conduit mounting
• Detachable four-pin terminal block
• Loop-in and loop-out cable restraints
• Rear, side and end conduit entry points
• Suitable for retrofitting over BESA boxes
• Compatible with optional emergency modules
• Compatible with optional microwave sensor modules
• Class I electrical construction
• 220–240V mains supply
• Dimensions: 1870 × 96 × 81.3mm
• Operating temperature: -20°C to +50°C
• Non-dimmable standard version
• Five-year JCC warranty
