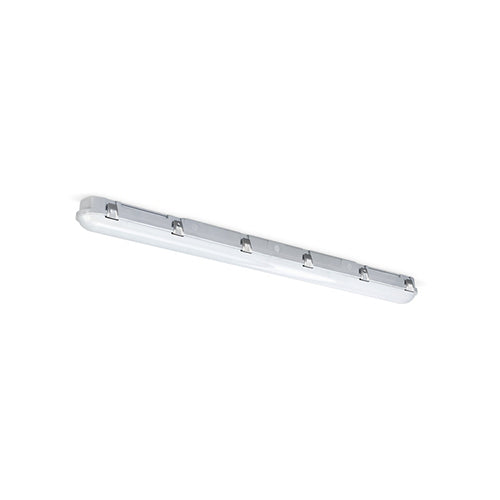

JCC JC180001 Pro ToughLED 4FT 1200mm 18W Anti Corrosive Led Batten

SKU JC180001
Original price £21.80 - Original price £21.80
Original price
£21.80 inc VAT £18.17 exc VAT
£21.80 - £21.80
Current price £21.80 inc VAT £18.17 exc VAT inc VAT £18.17 exc VAT

Estimated delivery time: Next working day

Description

The JCC JC180001 ToughLED Pro 4ft Single 18W FR LED Batten combines powerful illumination, excellent energy efficiency and durable weatherproof construction. Producing 2,600 lumens from only 18W, it achieves an impressive efficiency of 144 lumens per watt, helping businesses reduce electricity consumption without compromising light output.

Its 4000K neutral white light creates a bright, practical working environment, making this professional LED batten ideal for warehouses, workshops, garages, car parks, plant rooms, loading areas, utility spaces and industrial buildings. A wide 120° beam angle distributes light evenly across floors and working surfaces.

Built for demanding locations, the JC180001 features an IP66 rating, providing complete protection against dust and resistance to powerful water jets. Its robust IK10 impact rating offers additional protection from accidental knocks in busy commercial and industrial environments.

Installation is made easier with 90° lock-in-place side clips, a detachable four-pin terminal block and built-in loop-in/loop-out cable restraints. The ultra-wide mounting rail offers greater flexibility when locating joists, while rear, side and end conduit entry points support different wiring arrangements.

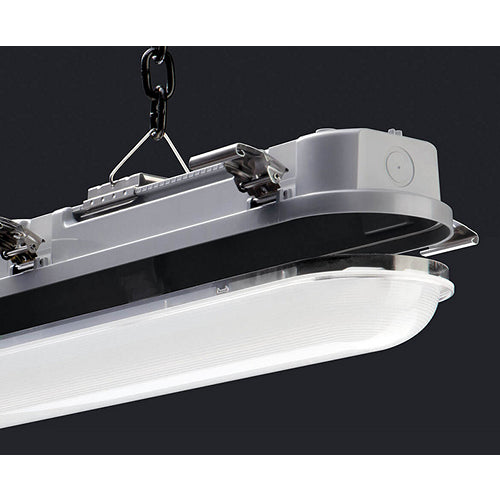

This versatile JCC ToughLED Pro batten can be surface mounted, suspended from chains or conduit mounted. Optional plug-and-play emergency and microwave sensor modules are also available separately. A five-year manufacturer’s warranty provides additional long-term reassurance.

Specification
  • Product Shape Rectangular
  • Product Range ToughLED™ Pro
  • IK Rating IK10
  • Voltage Rating 220-240
  • Primary Running Current(Amp) 0.2
  • Inrush current(Amps) 4
  • Operating Frequency Hz 50/60Hz
  • Secondary running current(mA) 350
  • Constant Current or Constant Voltage CC
  • Luminaire Circuit Wattage 18
  • Class I
  • Output Voltage Max/Range (VDC) 66VDC max
  • Total Harmonic Distortion (THD)% <20
  • EMC Compliant (EN55015) Yes
  • Power Factor Correction 0.9
  • Input Electrical Connections Live, Earth, Neutral
  • Dimmable No

Datasheet

Product Dimensions
  • Length (mm) 1270
    Width (mm) 96
    Height (mm) 81.3
