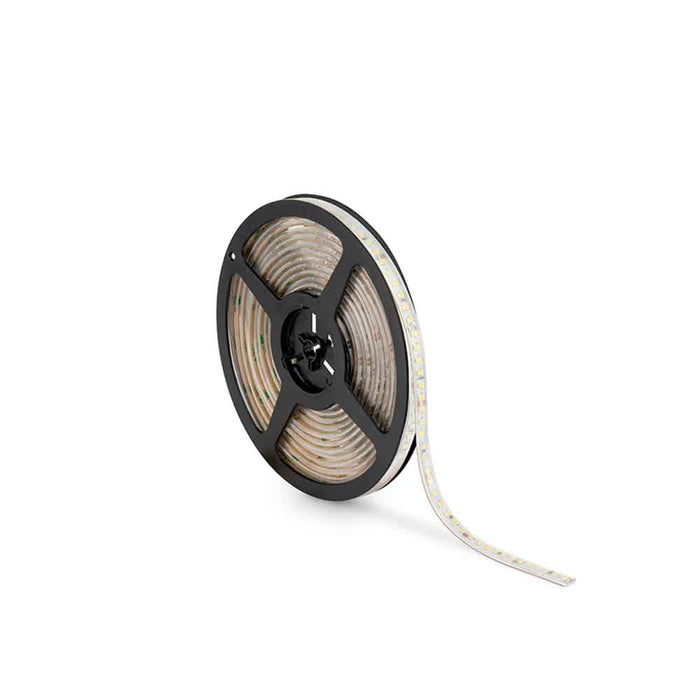

Name: JCC JC121406 LED Strip 24V 4.8W IP20 4000K - 20m
Brand: JCC
SKU: JC121406
Price: 59.29 GBP
Availability: InStock

JCC JC121406 LED Strip 24V 4.8W IP20 4000K - 20m

SKU JC121406

£59.29 - £59.29

£59.29 inc VAT £49.41 exc VAT

£59.29 - £59.29

£59.29 inc VAT £49.41 exc VAT inc VAT £49.41 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

JCC JC121406 20m 24V 4.8W/m 4000K IP20 Neutral White LED Strip

The JCC JC121406 is a professional 20-metre LED strip reel designed for larger indoor task, display and architectural lighting installations. Its clean 4000K neutral white output is ideal where customers require clearer, more practical illumination without the warmer appearance of 3000K or the colder tone of daylight lighting.

Use the JC121406 for kitchen worktops, cabinets, utility rooms, offices, retail shelving, product displays, reception counters, workshops and commercial interiors. The 20-metre reel can be divided into accurately sized sections, making it a flexible option for projects requiring several coordinated lighting runs.

Efficient and consistent linear lighting

The strip consumes 4.8W per metre and produces 480 lumens per metre, delivering an efficient 100 lumens per circuit watt. Closely spaced at 120 LEDs per metre, the light sources help create a more consistent lighting effect, particularly when the strip is installed inside a compatible aluminium profile with a diffuser.

Across the full 20-metre reel, the calculated connected load is 96W, with a nominal total output of approximately 9,600 lumens. These totals are useful for project calculations, but the reel should be divided into correctly designed power sections to control voltage drop.

Made-to-measure installation

Marked 50mm cutting points allow electricians to prepare accurate custom lengths. The 10mm-wide tape can be connected using compatible tape-to-tape or tape-to-cable connectors, provided the polarity is maintained throughout the installation.

Compatible JCC profile options include surface, slimline surface, recessed, corner, plaster-in and slimline plaster-in styles. Aluminium profiles can improve the finished appearance, diffuse the light and assist with heat dissipation.

Product specification

Product code: JCC JC121406
Reel length: 20 metres
Operating voltage: 24V DC
Electrical class: Class III
Power consumption: 4.8W per metre
Light output: 480 lumens per metre
Efficiency: 100 lumens per circuit watt
Colour temperature: 4000K neutral white
LED density: 120 LEDs per metre
Cutting interval: 50mm
Strip width: 10mm
Beam angle: 120°
Colour rendering: CRI 80
Ingress protection: IP20
Dimming: Dependent on the selected driver
Fixing method: Adhesive tape
Warranty: Three years

Important installation and driver guidance

JCC advises that LED tape runs exceeding 10 metres can experience increasing voltage drop, potentially reducing the light output after the first 10 metres. Therefore, choosing a driver with sufficient wattage does not automatically make a single 20-metre end-fed run suitable.

A practical design is to divide the reel into two 10-metre sections. Each section represents a 48W load and can be powered by an appropriately specified 50W 24V constant-voltage driver. Another correctly calculated parallel-feed arrangement may be used when designed by a qualified electrician.

The JC121406 is IP20 rated for dry indoor areas only. Drivers, profiles, diffusers, connectors and control equipment are selected separately. Isolate the power before installation or servicing, maintain the correct positive and negative polarity, and disconnect the product before insulation-resistance testing.

Specification

The JCC JC121406 is a 20-metre, 24V LED strip producing 4000K neutral white light for dry indoor task and display lighting. It consumes 4.8W and delivers 480 lumens per metre, with 120 LEDs per metre and 50mm cutting points. The complete reel has a calculated 96W load, but JCC advises additional power provision for runs exceeding 10 metres to reduce voltage drop and uneven brightness.

FAQ's

What professional applications suit the JCC JC121406 20m neutral white LED strip?

The JCC JC121406 is suitable for dry-indoor task, display and architectural lighting. Typical applications include kitchen worktops, cabinet lighting, office furniture, utility rooms, reception counters, retail shelving and commercial displays where clean 4000K illumination is preferred.

What are the total wattage and lumen figures for the JCC JC121406 LED strip?

The JCC JC121406 uses 4.8W and produces 480 lumens per metre. A complete 20-metre installation therefore represents a calculated 96W connected load and approximately 9,600 nominal lumens.

Can one 100W driver operate the complete JCC JC121406 20m LED strip?

The complete JCC JC121406 reel has a calculated 96W load, but driver wattage is only one part of the design. The installer must confirm the driver’s usable rated output, loading requirements, dimming compatibility, cable losses and thermal conditions. A single end-fed 20-metre run is still unsuitable because voltage drop may produce uneven brightness.

What is the preferred power-feed arrangement for the JCC JC121406 LED strip?

A straightforward arrangement is to divide the JCC JC121406 into two 10-metre sections. Each section consumes 48W and can be supplied by a suitable 50W 24V constant-voltage driver. Alternatively, a correctly designed common-driver system may use separate parallel feeds, provided the total load and cable calculations remain within specification.
