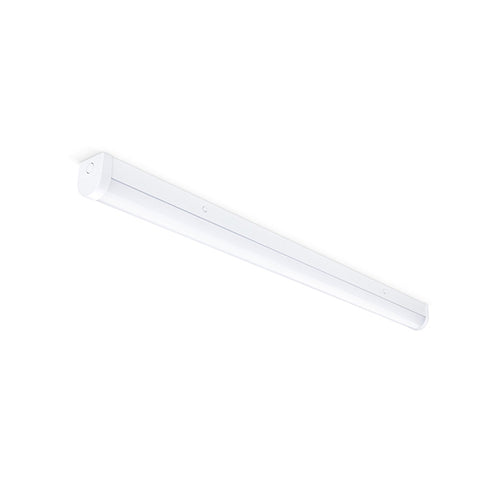

The JCC Skypack Pro JC100206 is a white, 4ft LED batten for indoor lighting schemes that need 1–10V dimming. It delivers a stated 5,680 lumens at 38W with a wide 120° beam, making it a practical choice for general lighting in corridors, offices, workshops, utility rooms and other indoor work areas.
Unlike a standard fixed-output batten, JC100206 can be incorporated into a compatible 1–10V control installation so its light level can be adjusted to suit how the space is used. This makes the exact model number important when ordering: JC100206 is JCC’s 1–10V version, rather than the microwave sensor or standard non-dimmable version. The installer should select and wire a suitable control system according to the current JCC instructions.
FAQ's
What is the JCC JC100206?

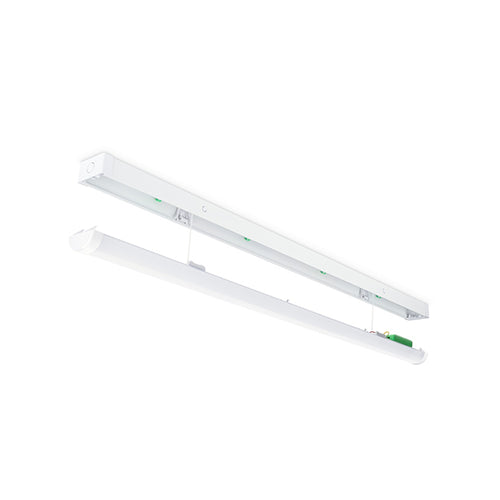

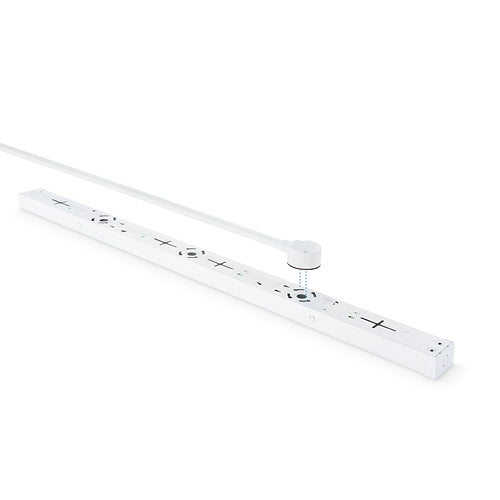

The JCC Skypack Pro JC100206 is a white, 4ft LED batten with 38W circuit wattage, 5,680-lumen output, selectable 3000K/4000K/5700K white light and 1–10V dimming. It measures 1,220 × 73.4 × 70mm and can be surface mounted or suspended using the appropriate accessory. It is rated IP40 when surface mounted and IP20 when suspended. JC100206 is the 1–10V control model; JCC does not list an integrated microwave sensor or emergency battery in this SKU’s specifications.
Is the JCC JC100206 dimmable?
Yes. JCC specifies 1–10V dimming for JC100206. A compatible control arrangement is needed to use that function.
Can I connect it to an ordinary household LED dimmer switch?
Do not assume compatibility. A typical phase-cut wall dimmer and a 1–10V control system use different methods. Have the electrician specify the correct controller and wiring for this fitting.
Does the 1–10V controller come with the batten?
JCC identifies the fitting as 1–10V dimmable but does not list a controller as an included accessory on its product page. Check the retailer’s package contents and order the required control components for your installation.
Is 1–10V the same as DALI?
No. JC100206 is listed as a 1–10V model. If the building’s lighting controls use DALI, choose a suitable DALI variant rather than assuming this SKU will connect directly.
Does JC100206 include a microwave motion sensor?
JCC does not identify it as a microwave sensor version. JC100204 is the separate 4ft microwave dimming model. Confirm the required control type before ordering.
