JCC JC1001/WH 6W Fire Rated Led Downlighter V50 IP65 White

SKU JC1001/WH
Save 8% Save 8%
Original price £13.00
Original price £13.00 - Original price £13.00
Original price £13.00
Current price £11.90 inc VAT £9.92 exc VAT
£11.90 - £11.90
Current price £11.90 inc VAT £9.92 exc VAT inc VAT £9.92 exc VAT
Availability:
75 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

The JCC JC1001/WH V50 Fire-Rated LED Downlight is a compact, energy-efficient lighting solution designed for modern homes, bathrooms and commercial interiors. Finished with a clean white bezel, it blends neatly into white ceilings while providing dependable everyday illumination.

A convenient switch positioned below the ceiling allows customers or electricians to select between 3000K warm white and 4000K neutral white after installation. This makes it easy to create a warmer atmosphere in living areas or choose clearer, practical lighting for kitchens, bathrooms, hallways and workspaces. The 6W integrated LED produces up to 700 lumens, delivering powerful illumination with low energy consumption.

Tested for 30, 60 and 90-minute fire-rated ceilings, the JCC V50 helps maintain the fire integrity of compatible ceiling constructions. Its IP65 rating makes it suitable for internal bathroom installations, while a 60° beam angle provides a useful spread of light for general room illumination.

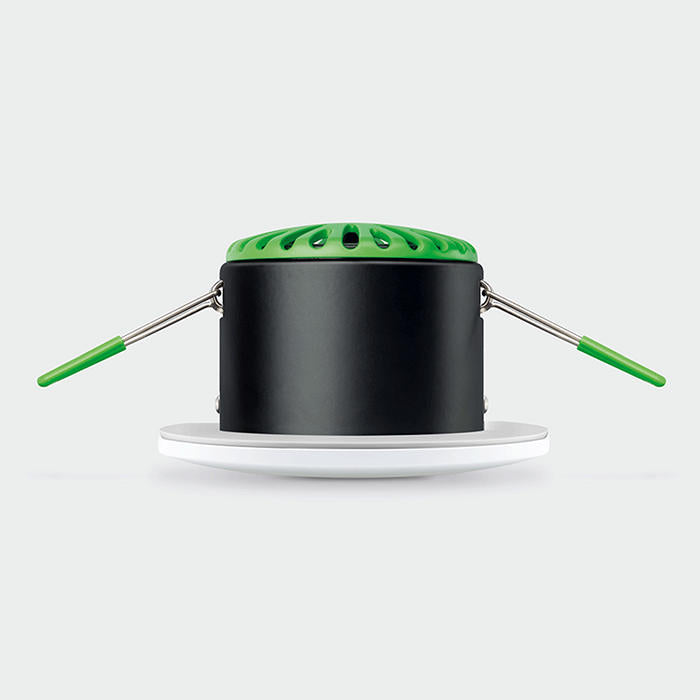

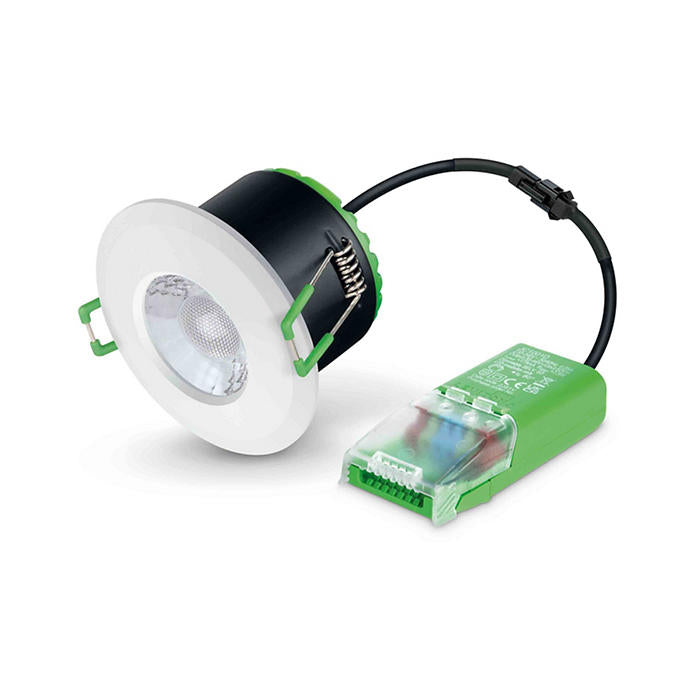

The ultra-low-profile design is suitable for shallow ceiling voids, with a minimum void requirement of 50mm and a standard 70mm ceiling cut-out. Strong protected spring clips, push-fit terminals and a remote driver help make installation faster and more convenient.

The JC1001/WH is TRIAC dimmable as standard, allowing the brightness to be adjusted using a compatible dimmer. Its twist-and-lock bezel can also be replaced with optional black, brushed brass, brushed nickel or chrome bezels. A generous seven-year manufacturer’s warranty provides excellent long-term reassurance.



Specification
  • Voltage Rating - 230-240
  • Primary Running Current(Amp) - 0.042
  • Inrush current(Amps) - 0.325A
  • Operating Frequency Hz - 50/60Hz
  • Secondary running current(mA) - 145
  • Constant Current or Constant Voltage CC
  • Luminaire Circuit Wattage - 6
  • Class II
  • Output Voltage Max/Range (VDC) - 30-44
  • Input Electrical Connections Push Fit Terminals
  • LEN Loop In/Loop Out
  • Dimmable - Yes
  • Max No. In Run - 20

Datasheet

Product Dimensions

Width - 120mm

Height - 100mm

Depth - 100mm
