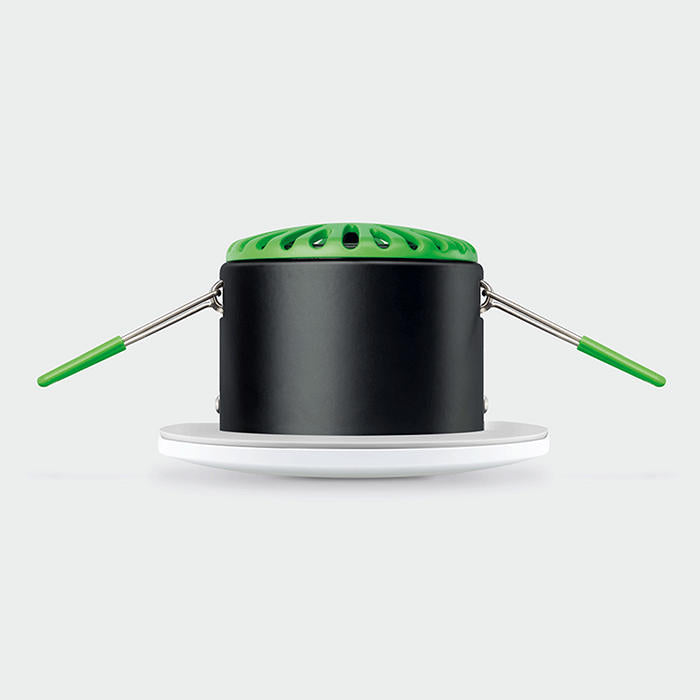

JCC JC1001/NB 6W Fire Rated Led Downlighter V50 IP65 No Bezel

Name: JCC JC1001/NB 6W Fire Rated Led Downlighter V50 IP65 No Bezel
Brand: JCC
SKU: JC1001/NB
Price: 10.25 GBP
Availability: InStock

SKU JC1001/NB

Save 7%

£11.00

£11.00 - £11.00

£11.00

£10.25 inc VAT £8.54 exc VAT

£10.25 - £10.25

£10.25 inc VAT £8.54 exc VAT inc VAT £8.54 exc VAT

Availability:

38 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

Main Features:

Two colour selectable from below the ceiling, 3000 & 4000K
Ultra-low profile suitable for shallow 50mm ceiling voids
Fully fire-rated for 30, 60 and 90 minute ceilings
IP65, suitable for bathrooms (internal use only)
Strong, protected spring clips

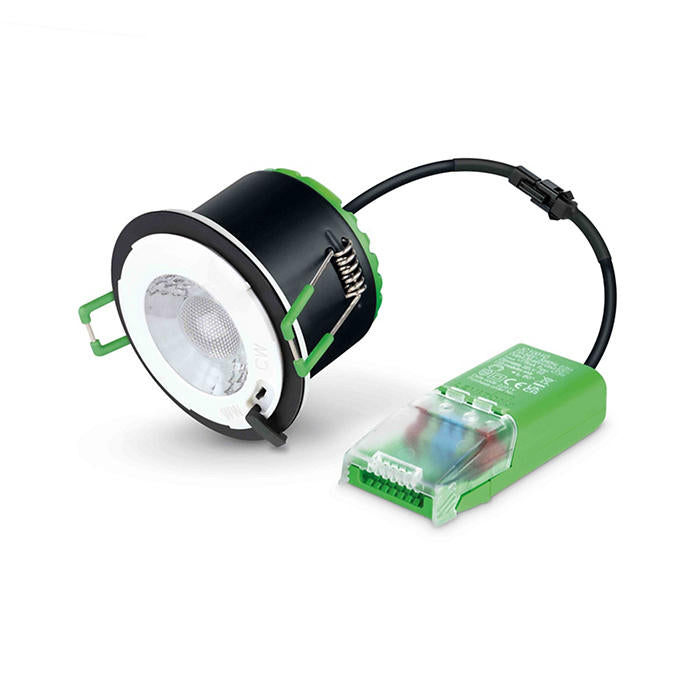

Fast, push fit termination with remote driver

Specification

Voltage Rating 230-240
Primary Running Current(Amp) 0.042
Inrush current(Amps) 0.325A
Operating Frequency Hz 50/60Hz
Secondary running current(mA) 145
Constant Current or Constant Voltage CC
Luminaire Circuit Wattage 6
Class II
Output Voltage Max/Range (VDC) 30-44
Input Electrical Connections Push Fit Terminals
LEN Loop In/Loop Out
Dimmable Yes
Max No. In Run 20

Datasheet

Product Dimensions

Height (mm) 67.7
Diameter (mm) 84
