JCC JC1001/CH V50 Fire-rated LED downlight 6W 700lm IP65 Chrome

Name: JCC JC1001/CH V50 Fire-rated LED downlight 6W 700lm IP65 Chrome
Brand: JCC
SKU: JC1001/CH
Price: 11.95 GBP
Availability: InStock

SKU JC1001/CH

Save 0%

£12.00

£12.00 - £12.00

£12.00

£11.95 inc VAT £9.96 exc VAT

£11.95 - £11.95

£11.95 inc VAT £9.96 exc VAT inc VAT £9.96 exc VAT

Availability:

22 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

Main Features:

Actual Lumen Output 650/700
Lumens Per Circuit Watt 108/116
Now with 7 year warranty
Two colour selectable from below the ceiling, 3000 & 4000K
Ultra-low profile suitable for shallow 50mm ceiling voids
Fully fire-rated for 30, 60 and 90 minute ceilings
IP65, suitable for bathrooms (internal use only)
Strong, protected spring clips

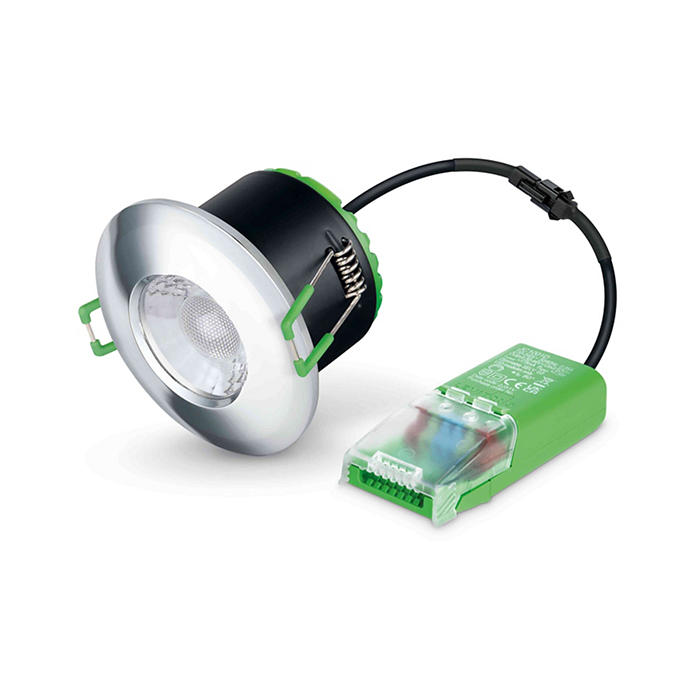

Fast, push fit termination with remote driver
Triac dimmable as standard (recommended dimmer list on JCC website)
Twist & lock bezel design
Cut-out ⌀70mm

Specification

Voltage Rating 230-240
Primary Running Current(Amp) 0.042
Inrush current(Amps) 0.325A
Operating Frequency Hz 50/60Hz
Secondary running current(mA) 145
Constant Current or Constant Voltage CC
Luminaire Circuit Wattage 6
Class II
Output Voltage Max/Range (VDC) 30-44
Input Electrical Connections Push Fit Terminals
LEN Loop In/Loop Out
Dimmable Yes
Max No. In Run 30
LED Life (Hours)* 51000
Energy Rating
This product contains a light source of energy efficiency class D
Actual Lumen Output 650/700
Lumens Per Circuit Watt 108/116
Color Rendering Index 80-89
CRI: Ra 80
Correlated Color Temperature 3000K/4000K
Beam Angle ° 60
LOR (Light Output Ratio) % 100

Datasheet

Product Dimensions

Overall Dimensions Ø84 x 67.7
Height (mm) 67.7
Diameter (mm) 84
