JCC JC080239 Skytile Base 1200 × 600 LED Panel – CCT Selectable, Triac Dimmable, IP40 White

The JCC JC080239 Skytile Base CCT LED panel is a 1200 × 600mm nominal ceiling-grid panel for indoor commercial spaces. It gives the installer three white-light choices—3000K warm white, 4000K neutral white and 5700K daylight white—in a single product code. That flexibility is useful when fitting out offices, meeting rooms, education spaces or other interiors where the final light colour needs to suit the furnishings and how the room is used. JCC lists this exact code as a 30W, white, IP40, Triac-dimmable TP(a) panel.

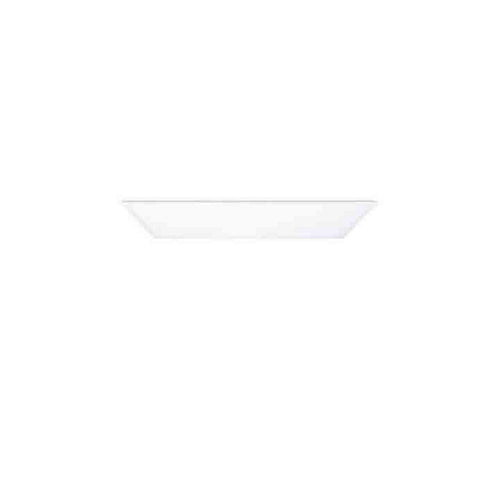

The panel is made for a T-grid suspended ceiling. Its actual body measures 1195 × 595 × 25mm, allowing it to sit within a nominal 1200 × 600mm grid opening. The slim panel presents a broad luminous surface in place of a ceiling tile, helping create an orderly appearance across a commercial room. Check the existing grid format and space above it before ordering a quantity for a refurbishment.

Select the colour, then set the dimming

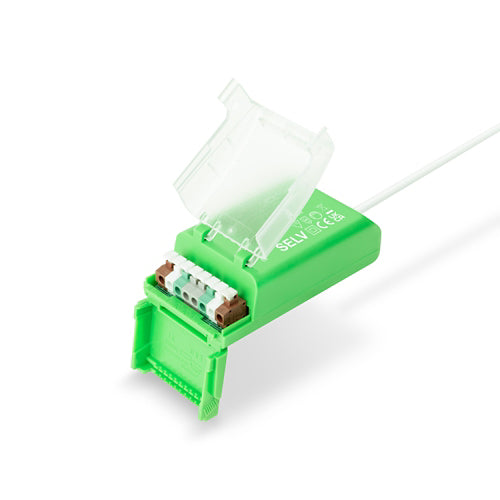

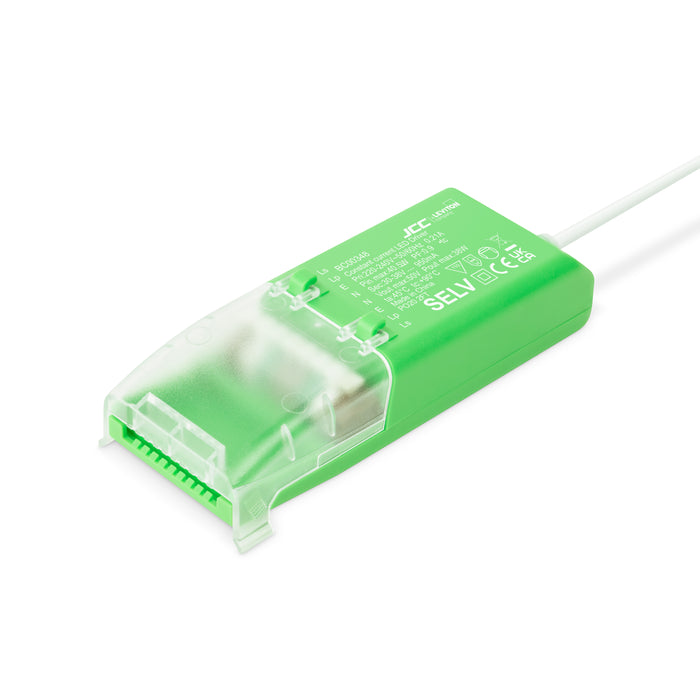

JCC supplies a Triac-dimmable driver as standard for JC080239. This lets an installer plan dimming with a suitable compatible control, for example where a room needs different light levels throughout the day. Triac is the dimming type for this code: JCC’s range also mentions DALI, 1–10V, switch-dim and DSI options, but those should not be assumed to be built into JC080239. Specify the appropriate variant if the building uses another control system.

The CCT switch is on the rear of the panel near the DC input cable. JCC instructs the electrician to isolate the power before changing the setting. Choose 3000K for a warmer appearance, 4000K for a neutral white workspace, or 5700K where a cooler daylight-white look is preferred. The colour selection and Triac dimming are separate functions: dimming changes light level, while the CCT switch selects the white-light colour.
