JCC JC080231 Skytile Base 600 × 600mm 30W 3CCT Triac LED Panel

The JCC JC080231 Skytile Base LED panel is a versatile 30W commercial ceiling light designed for offices, schools, shops, reception areas, corridors and other professional interiors. Its selectable 3000K, 4000K and 5700K colour temperatures allow electricians to choose the most appropriate light colour during installation without ordering separate warm-white, neutral-white and daylight-white panels.

Designed for installation in a standard suspended T-grid ceiling, the panel has actual dimensions of 595 × 595 × 25mm. Its slim construction fits into a nominal 600 × 600mm ceiling grid and provides broad, evenly distributed illumination through an 87-degree beam angle.

Depending on the selected colour temperature, JC080231 produces between 2950 and 3350 lumens. The highest output is available at 4000K, making this setting particularly useful for offices and general commercial workspaces requiring clean, practical illumination.

Three Selectable Colour Temperatures

The JCC JC080231 allows the installer to select one of three colour temperatures:

• 3000K warm white – approximately 2950 lumens
• 4000K neutral white – approximately 3350 lumens
• 5700K daylight white – approximately 3150 lumens

This 3CCT functionality gives contractors more flexibility when completing mixed commercial projects. The same panel can be used in reception areas, offices, meeting rooms, classrooms, corridors or brighter task-oriented environments, with the colour selected to suit each space.

The colour temperature should be selected in accordance with JCC’s installation instructions, normally while the electrical supply is safely isolated.

Efficient Commercial LED Panel Lighting

Operating at 30W, the JCC Skytile Base provides an efficient replacement for older fluorescent modular ceiling fittings. Its efficacy varies with the selected colour:

• 3000K: approximately 98 lumens per circuit watt
• 4000K: approximately 112 lumens per circuit watt
• 5700K: approximately 105 lumens per circuit watt

The 4000K setting offers the highest output and efficiency, producing approximately 3350 lumens at 112 lumens per watt. This makes it a strong choice for general office lighting, classrooms, meeting spaces and commercial areas where dependable illumination is needed throughout the working day.

The integrated LED design also removes the need to purchase or replace fluorescent tubes.

Triac Dimmable Lighting Control

The JCC JC080231 LED panel is Triac dimmable, allowing the light level to be adjusted when used with a suitable compatible control.

Electricians should confirm dimmer compatibility, total connected load and minimum or maximum dimmer requirements before installation. Using an unsuitable dimmer may cause flickering, limited dimming range, unstable operation or failure to switch off correctly.

For larger building-management or specialist control systems, JCC offers other Skytile options within the wider range. The exact driver and control method should always be checked against the individual product code being ordered.

Designed for Electricians and Contractors

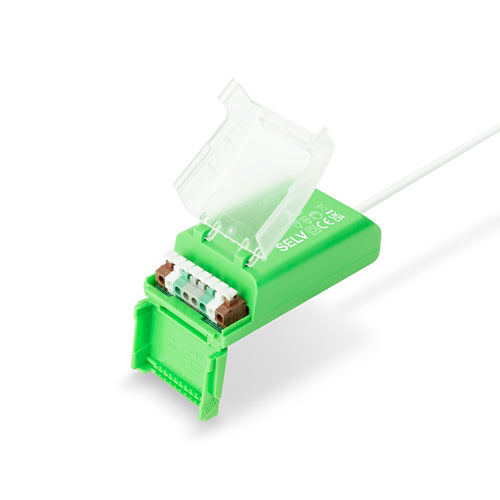

JC080231 incorporates practical installation features for commercial electrical work. Its double-hinged driver arrangement provides access for termination, while the eight-pole loop-in/loop-out connection arrangement includes permanent live and earth continuity provisions for suitable wiring configurations.

Key product specifications include:

• Brand: JCC Lighting
• Range: Skytile Base CCT
• Product code: JC080231
• Product type: recessed modular LED panel
• Nominal panel size: 600 × 600mm
• Actual dimensions: 595 × 595 × 25mm
• Power consumption: 30W
• Colour temperatures: 3000K, 4000K or 5700K
• Lumen output: 2950lm, 3350lm or 3150lm
• Beam angle: 87°
• Colour rendering: CRI Ra 82–85
• Dimming method: Triac
• Supply voltage: 220–240V
• Electrical class: Class II
• Mounting: T-grid suspended ceiling
• Finish: white
• IP rating: IP40
• Diffuser classification: TP(a)
• Insulation coverage: do not cover
• Operating temperature: -20°C to +50°C
• Warranty: five years

TP(a) Diffuser Classification

The JCC JC080231 carries a TP(a) diffuser classification, an important consideration when selecting thermoplastic diffusers for commercial ceiling installations. This makes it suitable for projects where TP(a) performance is specified as part of the ceiling or fire-safety design.

The complete lighting installation must still comply with the relevant building design, ceiling system requirements and project specification. The TP(a) classification should not be confused with a fire-rated downlight or a fire-resistant ceiling barrier.

UGR Workplace Lighting Considerations

JCC identifies JC080231 as a UGR panel designed with workplace illumination in mind. It can be considered for offices, classrooms, meeting rooms and similar environments where visual comfort is important.

However, UGR is determined by the complete lighting design rather than by the panel alone. Room dimensions, ceiling height, surface reflectance, panel spacing, viewing position and total luminaire quantity all affect the final glare calculation. Contractors working to BS EN 12464-1 should confirm compliance using an appropriate lighting design or photometric calculation.
