JCC JC077200 Ring of Light 600mm White 20W/30W/37W CCT Selectable LED Pendant

SKU JC077200
Original price £266.00 - Original price £266.00
Original price
£266.00 inc VAT £221.67 exc VAT
£266.00 - £266.00
Current price £266.00 inc VAT £221.67 exc VAT inc VAT £221.67 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

Create a striking centrepiece for modern commercial interiors with the JCC JC077200 Ring of Light. This 600mm suspended circular LED luminaire combines a contemporary white finish with selectable wattage and colour temperature settings, helping installers adapt the light output and atmosphere to suit the space.

The fitting provides three selectable colour temperatures: 3000K warm white, 4000K neutral white and 5700K cool white. Warm white can create a softer, more welcoming appearance, while neutral or cool white settings are suited to brighter working, retail and presentation environments. The selected setting must be changed only while the electrical supply is isolated.

JCC markets the JC077200 with selectable 20W, 30W and 37W output settings. Its technical information lists a maximum actual light output of 4,600 lumens, an efficacy of up to 124 lumens per circuit watt and a wide 70-degree beam angle for broad, even illumination.

The circular luminaire measures approximately 600mm in diameter and 75mm deep. An adjustable suspension kit is included, allowing the ring to be positioned at a suitable height over reception desks, meeting areas, retail displays, hospitality spaces and other commercial or architectural interiors.

Specification

The JCC JC077200 is a 600mm suspended circular LED luminaire from the JCC Ring of Light range. It has a white finish, selectable wattage and selectable 3000K, 4000K or 5700K colour temperature.

The fitting delivers up to 4,600 lumens with a 70-degree beam angle. It is IP20 rated for dry indoor locations and includes an adjustable suspension kit for ceiling installation.

Datasheet

FAQ's

What is the JCC JC077200?

It is a 600mm white suspended LED ring light designed primarily for commercial, retail and architectural interior lighting applications.

What wattage settings are available?

JCC markets the product with selectable 20W, 30W and 37W settings. However, the current technical table lists circuit wattage as 24W, 30W and 37W. The installer should use the settings printed on the supplied driver and isolate the power before making changes.

What colour temperatures can be selected?

The fitting offers:

  • 3000K: warm white
  • 4000K: neutral white
  • 5700K: cool white

The colour temperature is selected using the switch inside the fitting.

How bright is the JC077200?

JCC lists a maximum actual lumen output of 4,600 lumens, with an efficacy of up to 124 lumens per circuit watt.

What are the dimensions?

The JC077200 measures approximately:

  • Diameter: 600mm
  • Depth: 75mm

The installation drawing also shows an internal opening of approximately 480mm.

Is a suspension kit included?

Yes. JCC supplies an adjustable ceiling suspension kit with the luminaire. The suspension cables can be adjusted to level the fitting and position it at an appropriate mounting height.

Is the JC077200 dimmable?

The standard JC077200 is listed as non-dimmable. DALI and switch-dim options are available elsewhere within the Ring of Light range and require the correct alternative product variant.

Is it suitable for bathrooms or outdoor areas?

No. The luminaire has an IP20 rating and JCC specifies it for dry indoor use. It should not be installed where greater protection against moisture or water is required.

JCC Line of Light features:

Explore the Line of Light features

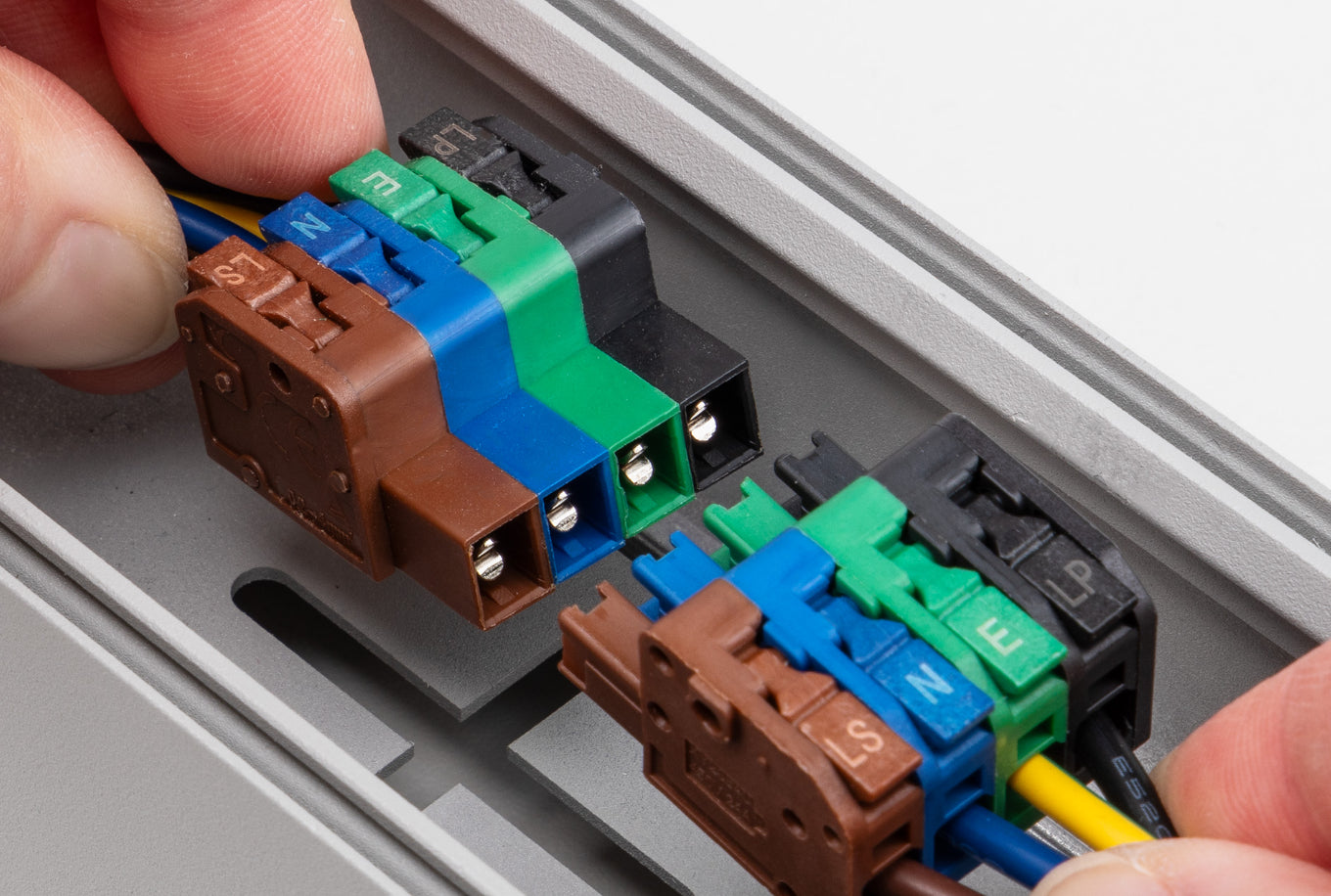

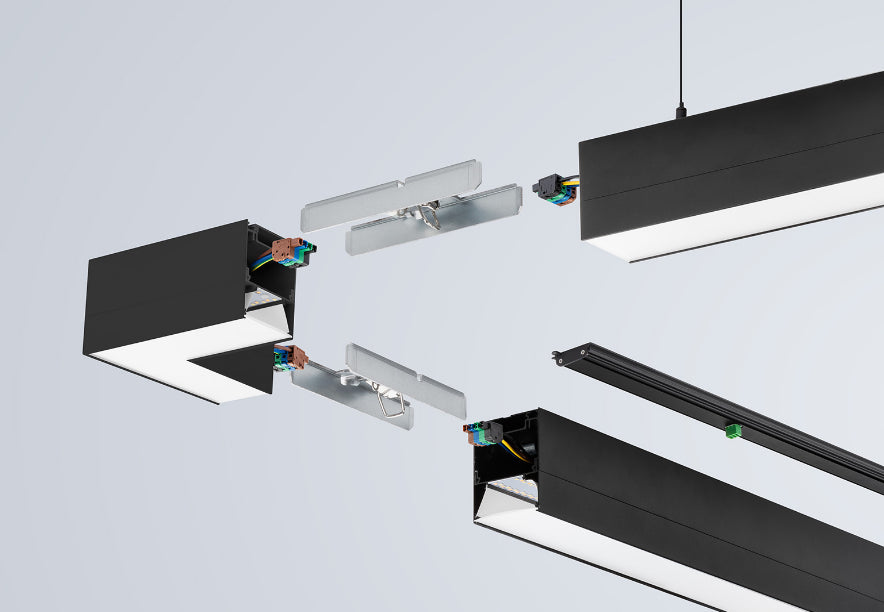

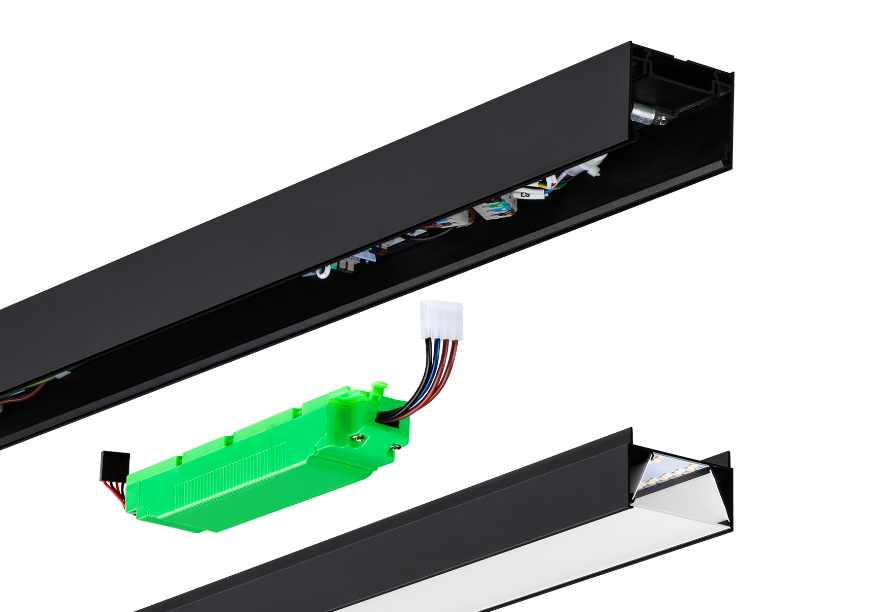

JCC Line of Light modular linear fitting and installation features
1
Suspension kit options

Choose black, white or silver suspension kits in 2 metre or 5 metre lengths.
