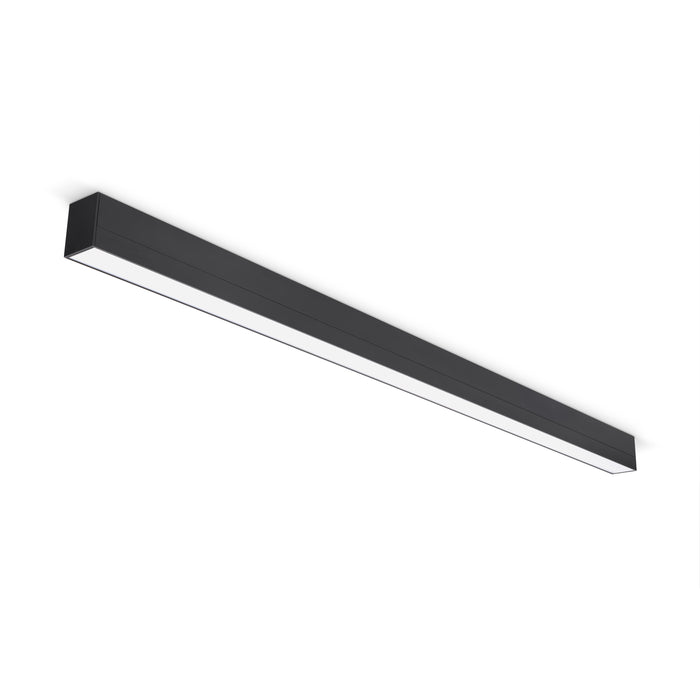

JCC JC077020BLK Line of Light 5ft 16/18/20/22W low output | 3000K/4000K/5700K in black
Original price
£85.77
-
Original price
£85.77
Original price
£85.77 inc VAT £71.48 exc VAT
£85.77
-
£85.77
Current price
£85.77 inc VAT £71.48 exc VAT
inc VAT £71.48 exc VAT
| /
Estimated delivery time: 5-7 working days
Description
Main Features:
- Wattage selectable 16W/18W/20W/22W (1800/2050/2250/2450 lumens)
- Two-part construction allowing easy access to termination and internal components
- Colour selectable between 3000K, 4000K & 5700K
- Illuminated corners & upward illumination options available
- Linking kit available to assemble longer lengths, squares and rectangle configurations
- For longer, seamless runs add /EXT to any standard Line of Light product code to order middle/end pices that exclude end caps and flex
- suspension kit available
Specification
- Voltage Rating 220-240
- Primary Running Current(Amp) 0.135
- Inrush current(Amps) 4.025A peak ,153us duration(50 % Ipeak)
- Operating Frequency Hz 50/60Hz
- Secondary running current(mA) 400/450/500/550
- Constant Current or Constant Voltage CC
- Luminaire Circuit Wattage1 24
- Luminaire Circuit Wattage2 32
- Luminaire Circuit Wattage3 40
- Class I
- Output Voltage Max/Range (VDC) 24-42
- Total Harmonic Distortion (THD)% 8
- EMC Compliant (EN55015) Yes
- Power Factor Correction 0.98
- Input Electrical Connections Live, Earth, Neutral
- Dimmable No
- Warranty 5 Year Warranty(Terms & conditions apply)
- Operation Type On/off
- Driver manufacturer BOKE
Datasheet
Product Dimensions
- Overall Dimensions1205 x 60 x 78
Commercial Lighting
JCC Line of Light
Lighting
Lighting Design
Swipe or use the arrows to explore more finishes
Explore the Line of Light features
Suspension kit options
Choose black, white or silver suspension kits in 2 metre or 5 metre lengths.
Secure linking bracket
A strong bracket joins straight lengths and corner modules securely.
Illuminated corner modules
Create L-shape, square and rectangular lighting arrangements with illuminated corners.
Direct or direct-indirect light
Select downward-only illumination or combined upward and downward light output.
Six-core flex included
A 2 metre six-core flex is supplied as standard for straightforward connection.
Removable end caps
Remove the end caps when connecting fittings to form longer continuous runs.
