What exactly am I buying with code JC077001SIL?

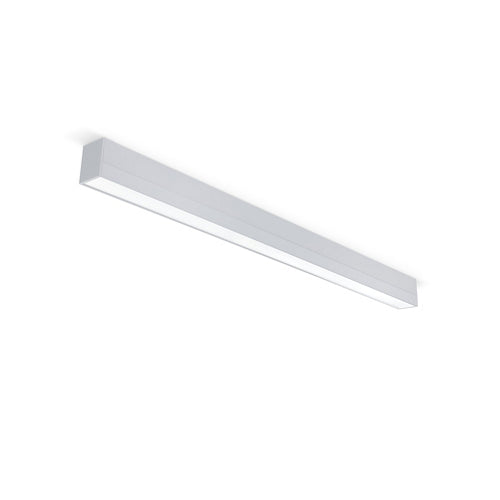

You are buying one silver, 4ft JCC Line of Light LED fitting. It is not a complete suspended lighting system or a connected run of several lights. Suspension, linking and corner components are listed separately by JCC.
Will it fit in a space that is exactly 1200mm long?
Check carefully: although described as a 4ft / 1200mm-class fitting, its actual length is 1205mm. JCC lists its full dimensions as 1205 × 60 × 78mm. Allow for the real dimensions when measuring the space.
How bright can I make it?
An installer can select 16W, 18W, 20W or 22W. JCC lists approximately 1,800, 2,050, 2,400 and 2,600 lumens at those respective settings. A larger or darker room may need more light or more than one fitting; the wattage setting alone does not determine the best layout.
Can I turn the brightness up and down with a wall dimmer?
No. JC077001SIL is non-dimmable. Its four wattage options are installation settings, not a dimming function for daily use. Do not order this code if you need to adjust brightness from a dimmer switch.
Which colour setting should I choose for an office or shop?
Choose 3000K for a warmer appearance, 4000K for a balanced neutral white, or 5700K for a cooler daylight-style appearance. For a row of fittings, selecting the same setting on each will give the most consistent-looking result. JCC confirms all three settings on JC077001SIL.
Can I change the light colour after it has been installed?
Yes, the fitting has a colour-temperature selector. It is not a remote-controlled colour-changing light: the electrical supply must be isolated before the installer changes the setting at the fitting.
Can it be fitted directly against the ceiling?
Yes. JCC lists surface mounting and provides instructions for securing the fitting to a suitable surface. This is the straightforward option if you want the light close to the ceiling.
What do I need if I want it to hang below the ceiling?
You need a compatible suspension kit in the appropriate length and finish. JCC lists separate 2m and 5m kit options for the Line of Light range. Plan the hanging height and ceiling fixing before ordering the accessories.
