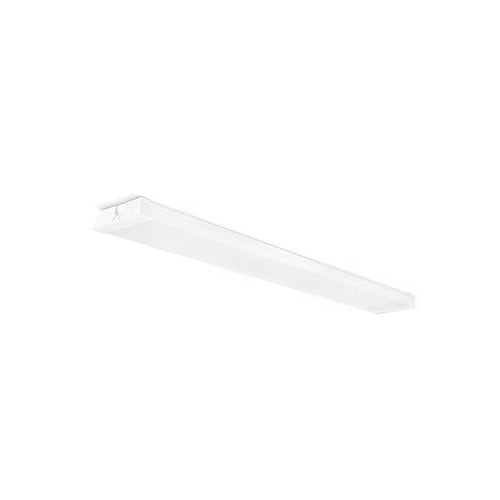

The JCC JC030063 Commercial Linear LED batten is made for indoor spaces that need a bright, even-looking line of light with proper lighting control. Its 1500mm length suits offices, meeting rooms, classrooms, corridors and larger work areas where a shorter fitting may leave gaps in the layout. The simple white body sits neatly against a pale ceiling, while its broad diffuser and 112° beam angle make it a practical choice for general room illumination.

The important feature of this exact model is DALI dimming. When it is installed as part of a compatible lighting control system, the light level can be adjusted to suit the room’s use. JCC also lists DALI-2 (DT6) or switch dim in its technical information. That gives a lighting designer control options for projects where a room needs different light levels throughout the day. The chosen control method and wiring should be confirmed before ordering and installed by a competent person.

Four power settings, one product code

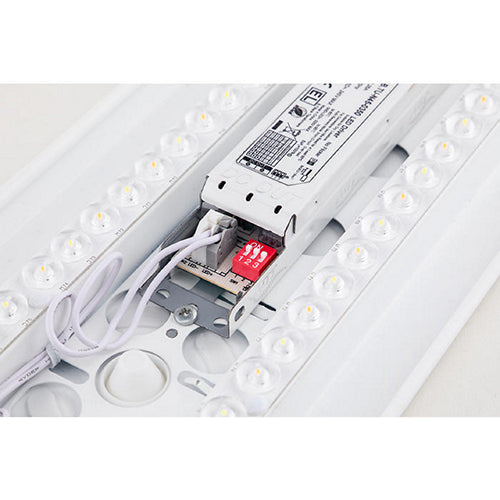

JC030063 has selectable 30W, 32W, 34W and 36W settings. JCC lists corresponding outputs of 4550, 4870, 5200 and 5260 lumens. An installer can select an output to suit the intended spacing, mounting height and room layout, then use the compatible dimming control for day-to-day adjustment. This distinction is useful: selectable wattage sets the fitting’s output range; dimming controls its light level during use. JCC instructs installers to isolate the supply before changing the wattage setting.

This model supplies a fixed 4000K neutral white light. It is a versatile colour for work and circulation spaces where customers want a clear white appearance without choosing between several colour settings during installation. JC030063 is not a three-colour selectable fitting; the three-CCT options seen elsewhere in JCC’s Commercial Linear range relate to different product
