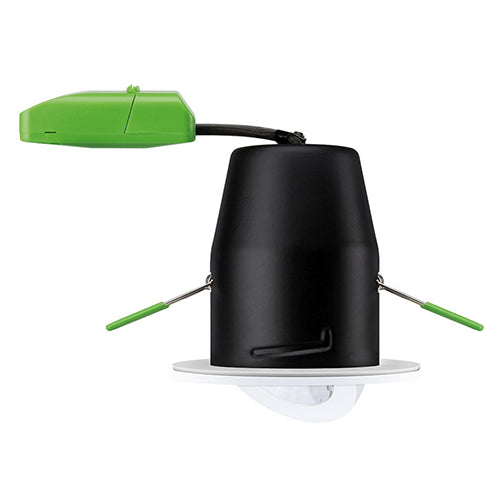

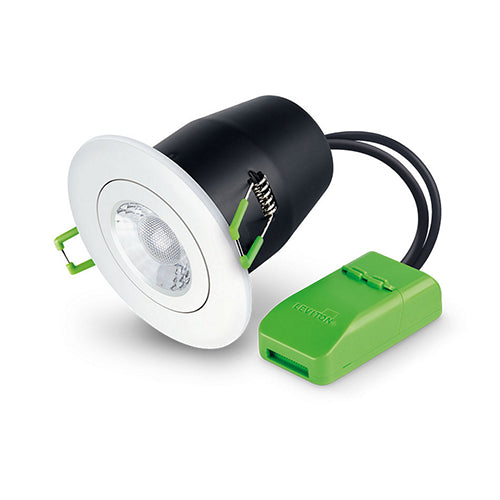

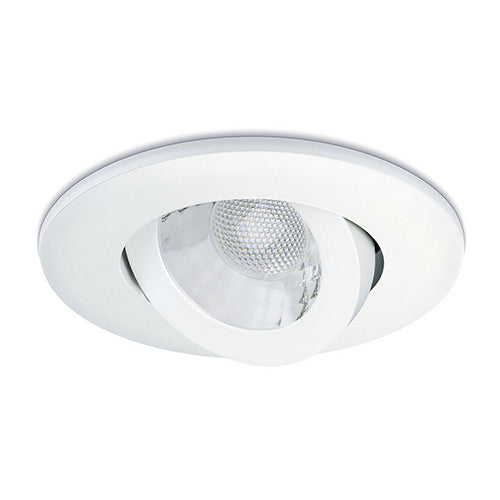

JCC Fireguard White Adjustable GU10 Downlight – Choose Your Lamp and Direct Your Light

Create a neat ceiling finish with the JCC JC010023/WH Fireguard Next Generation adjustable GU10 downlight. Its slim white bezel blends into a white ceiling, while the tilting design gives you control over the direction of the light.

This fire-rated recessed fitting is an option to consider for living rooms, bedrooms, hallways and other suitable dry indoor spaces. Whether you are planning a home refurbishment, choosing lighting for an extension or specifying fittings for a contractor’s project, it combines a subtle appearance with the flexibility of a replaceable LED lamp.

Choose a GU10 LED Lamp to Suit Your Room

The JC010023/WH accepts a GU10 LED lamp up to 7W, purchased separately. Choose a lamp that provides the brightness, colour temperature and beam angle you need, and check that its manufacturer approves it for an enclosed can fitting.

For a bedroom or lounge, you might prefer a warmer white appearance. For an area used for everyday tasks, you may prefer a more neutral white. A narrower beam can help concentrate light on a feature, while a wider beam can support a broader lighting layout.

Because the lamp is replaceable, you can change the light source when required while retaining the downlight housing. This is useful for customers who want to choose their own lamps or coordinate the lighting appearance across several rooms.

Adjust the Beam towards a Chosen Area

The 15° tiltable inner bezel allows you to angle the lamp towards a particular area. Depending on the fitting’s position and the lamp selected, this can help draw attention to artwork, shelving or a feature wall.

When planning adjustable ceiling spotlights, consider where furniture will sit and how people use the room. The direction of the beam, spacing between fittings and lamp brightness should work together as part of the overall lighting scheme.

A White Finish for a Coordinated Ceiling

The slim-profile die-cast aluminium bezel provides a restrained finish around the light. White is a useful choice when you want your recessed ceiling fittings to sit quietly within the room’s design.

For homeowners, this makes it easier to coordinate lighting with changing furnishings and decoration. For electricians and building contractors, it offers a straightforward finish to consider across suitable rooms within a project.

Dimming Depends on the Lamp You Choose

For dimmable lighting, select a dimmable GU10 LED lamp and a compatible dimmer switch. Compatibility depends on the lamp and dimmer combination, so check the relevant manufacturers’ guidance before ordering.

This allows you to plan brighter lighting for everyday activities and a lower light level for more relaxed settings.

Fire-Rated Design for Compatible Ceilings

The Fireguard Next Generation range has been tested for specified fire-rated ceiling constructions. Your installer should check the relevant JCC certification against the actual ceiling and required fire resistance.

This model is IP20 rated and intended for suitable indoor locations. Choose the fitting’s protection rating to match the installation environment.

Check the Fit before Ordering

The JC010023/WH requires an 85mm diameter ceiling cut-out, a minimum 150mm ceiling void and a ceiling thickness of no more than 30mm.

For electricians, the press-fit loop-in/loop-out terminal supports connection between fittings, while spring clips secure the housing in the ceiling. Installation should follow JCC’s instructions and be carried out by a qualified electrician.

Choose the JCC JC010023/WH Fireguard white GU10 downlight from Electricals Online for a discreet recessed finish, adjustable light direction and the flexibility to select a suitable replaceable LED lamp.

Lamp requirements: GU10 LED only, maximum 7W, suitable for an enclosed can. Lamp sold separately. Do not use halogen lamps.

Warranty: Two-year standard manufacturer warranty, subject to JCC’s terms and conditions.
