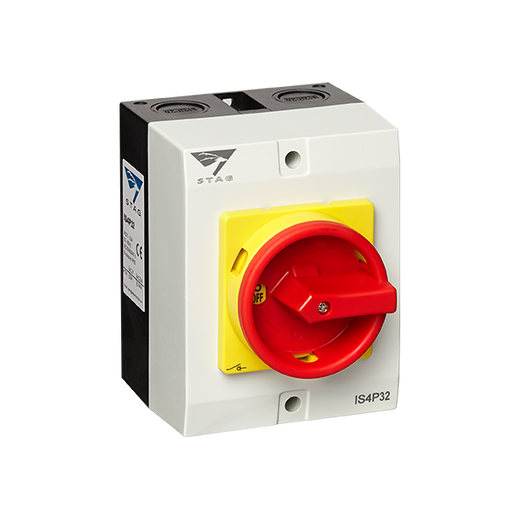

IMO Stag IS4P32A 32A 4 Pole IP65 Rotary Isolator

IMO Stag IS4P32A 32A 4 Pole IP65 Rotary Isolator

SKU IS4P32
£0
£10.80 - £10.80
£10.80 inc VAT £9.00 exc VAT
£10.80 - £10.80
£10.80 inc VAT £9.00 exc VAT inc VAT £9.00 exc VAT
Availability:
59 in stock, ready to be shipped
 More payment options

Estimated delivery time: Next working day

Description

 Main Features:

  • 4 Pole
  • IP65 Protection Rating (enclosure)
  • EN 60947-3 Compliant
  • 3 Sizes of Enclosure
  • Multiple Gland Knockouts
  • Lockable Rotary Handle
  • Flame Retardant
  • External Mounting Points
  • Additional Earth Connection
  • Interlocked Enclosure Lid
Specification
  • Enclosure Material - Polycarbonate
  • Lid Screw Material - Stainless Steel
  • Ingress Protection - IP65 Enclosure / IP20 Body
  • Interlocked Handle - In ON Position
  • Approvals - CE, SEMKO
  • Compliance - IEC EN 60947-3, RoHS
  • Poles - 4
  • Rated Operational Current Ie (AC21) (A) - 32
  • Rated Power of 3Ph Motor at 415V
    (AC23A) (kW) - 11
  • Rated Voltage (V) - 415
  • Frequency (Hz) - 50/80
  • Rated Insulation Voltage Ui (V) - 690

Product Dimensions

  • Height -125mm
  • Width - 100mm
  • Depth - 85mm
  • Depth inc. Handle - 120mm
