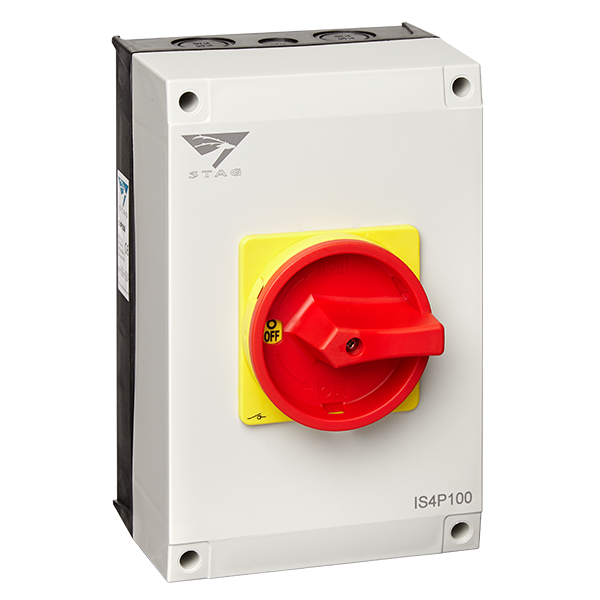

IMO Stag IS4P100 4 Pole 100A IP65 Rotary Isolator

IMO Stag IS4P100 4 Pole 100A IP65 Rotary Isolator

SKU IS4P100
£52.50 - £52.50
£52.50 inc VAT £43.75 exc VAT
£52.50 - £52.50
£52.50 inc VAT £43.75 exc VAT inc VAT £43.75 exc VAT
Availability:
Only 2 left!

Estimated delivery time: Next working day

Description

 Main Features:

  • 4 Pole
  • IP65 Protection Rating (enclosure)
  • EN 60947-3 Compliant
  • Multiple Gland Knockouts
  • Lockable Rotary Handle
  • Flame Retardant
  • External Mounting Points
  • Additional Earth Connection
  • Interlocked Enclosure Lid
Specification
  • Enclosure Material - Polycarbonate
  • Lid Screw Material - Stainless Steel
  • Ingress Protection - IP65 Enclosure / IP20 Body
  • Interlocked Handle - In ON Position
  • Approvals - CE, SEMKO
  • Compliance - IEC EN 60947-3, RoHS
  • Poles - 4
  • Rated Operational Current Ie (AC21) (A) - 80
  • Rated Power of 3Ph Motor at 415V
    (AC23A) (kW) - 30
  • Rated Voltage (V) - 415
  • Frequency (Hz) - 50/80
  • Rated Insulation Voltage Ui (V) - 690
Product Dimensions
  • 240x160x120mm
