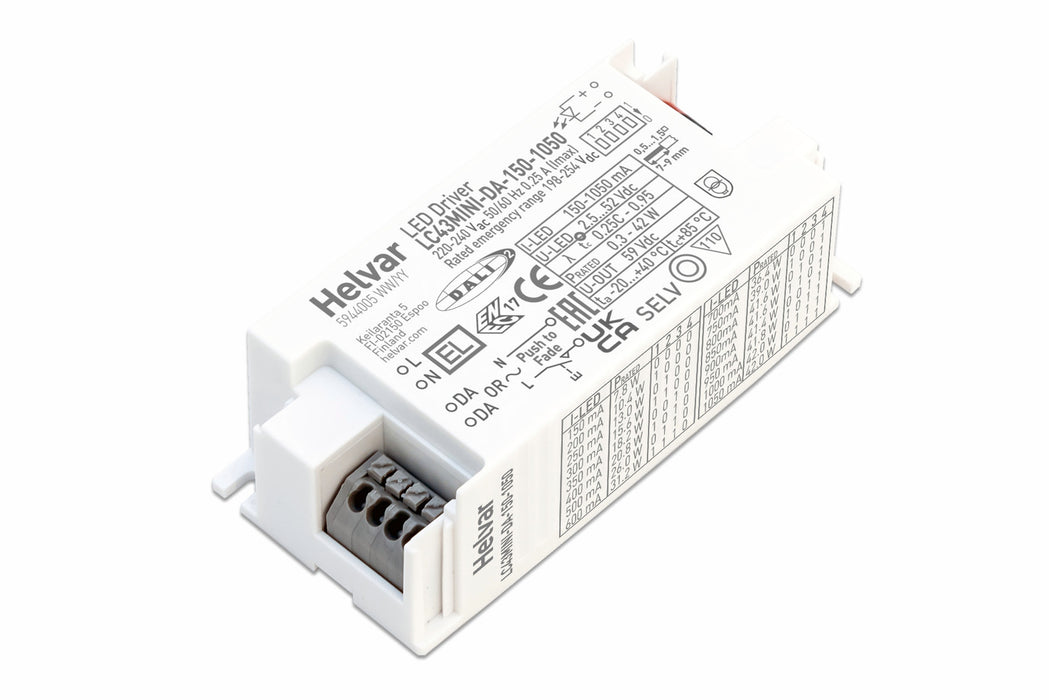

Helvar LC43MINI-DA-150-1050 42W DALI-2 Dimmable LED Driver

The Helvar LC43MINI-DA-150-1050 is a compact 42W DALI-2 dimmable constant-current LED driver designed for built-in use within compatible LED luminaires. It provides a wide adjustable output current range from 150mA to 1050mA, making it suitable for a broad range of professional LED lighting applications.

The output current is selected using integrated DIP switches, allowing the driver to be configured to match the requirements of the connected LED module. Depending on the selected current, the driver provides an output voltage range of up to 2.5V–52V, with the maximum output power rated at 42W.

The LC43MINI-DA-150-1050 uses DALI-2 control and supports a 1%–100% dimming range using amplitude dimming technology. It also features Push to Fade functionality, providing smooth dimming transitions where compatible control equipment is used.

With SELV output protection, the Helvar LC43MINI-DA-150-1050 provides flexibility for Class I, Class II and Class III luminaires. Optional strain relief accessories are available for Class III SELV applications where the driver needs to be used independently outside the luminaire.

The compact driver measures approximately 97 × 43 × 30mm, making it suitable for space-conscious luminaire designs. It has an IP20 rating, operates across an ambient temperature range of approximately -20°C to +40°C, and has a maximum tc point temperature of 85°C.

The driver also incorporates overload, open-circuit and short-circuit protection, low current ripple and compliance with the IEEE 1789 recommendation for flicker performance. Helvar states that the driver is suitable for emergency lighting applications when used in accordance with the specified requirements.

Key Features

• Genuine Helvar LC43MINI-DA-150-1050
• Helvar product number 594400
• 42W maximum output power
• DALI-2 certified LED driver
• Adjustable constant-current output
• 150mA to 1050mA selectable output
• DIP-switch current adjustment
• 2.5V–52V output voltage range depending on current setting
• 1%–100% dimming range
• Amplitude dimming technology
• Push to Fade functionality
• SELV output protection
• Suitable for Class I, Class II and Class III luminaires
• Compact MINI design
• Dimensions: 97 × 43 × 30mm
• IP20 rated
• Overload protection
• Open-circuit protection
• Short-circuit protection
• Low current ripple
• IEEE 1789 compliant
• Suitable for emergency lighting applications
• Optional strain relief accessories available

Output Current Settings

The LC43MINI-DA-150-1050 provides 16 selectable current settings using its DIP switches:

• 150mA
• 200mA
• 250mA
• 300mA
• 350mA
• 400mA
• 500mA
• 600mA
• 700mA
• 750mA
• 800mA
• 850mA
• 900mA
• 950mA
• 1000mA
• 1050mA

At 150mA, the rated output power is up to 7.8W. At 600mA, it is up to 31.2W, while the driver can deliver up to 42W at 1050mA. The maximum LED voltage varies according to the selected output current.

Applications

The Helvar LC43MINI-DA-150-1050 is suitable for compatible:

• LED luminaires
• Commercial lighting
• Professional lighting
• Industrial lighting
• DALI lighting systems
• Dimmable LED installations
• Built-in LED lighting
• Class I lighting equipment
• Class II lighting equipment
• Class III SELV lighting equipment
• Emergency lighting applications
