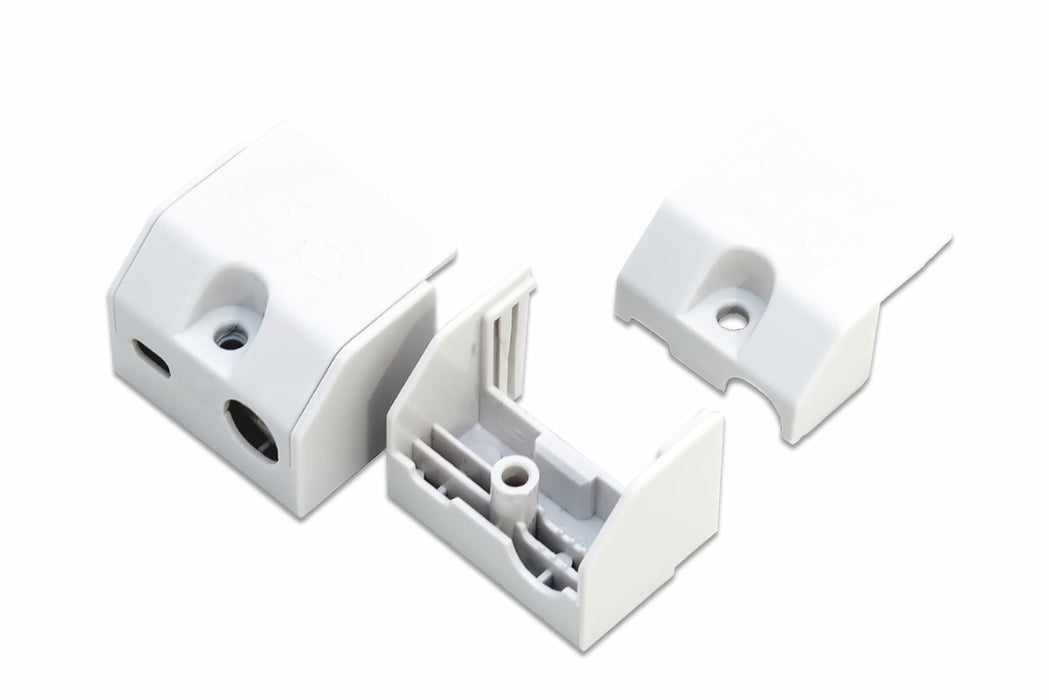

Helvar LC-SR-MINI Click-On Strain Relief for MINI LED Drivers

The Helvar LC-SR-MINI is a robust, easy-to-install click-on strain relief accessory for Helvar MINI LED drivers. It is designed for applications where a compatible LED driver needs to be safely installed independently outside of a luminaire.

The LC-SR-MINI provides secure mechanical support for the driver's cables and helps protect the electrical connections when a compatible MINI LED driver is installed independently. Its click-on design allows straightforward assembly without requiring complicated installation procedures.

Manufactured from durable polycarbonate, the LC-SR-MINI is designed to accommodate cables of different thicknesses. It is suitable for compatible Helvar MINI LED drivers with a driver cross-section of 43 × 26–30mm. The strain relief accepts cable sizes from approximately 3.2mm to 8.0mm, depending on the cable entry, and wire sizes from 0.5mm² to 2.5mm².

The Helvar LC-SR-MINI is particularly useful when a MINI LED driver needs to be used for Class III SELV luminaires or independently outside the luminaire. Helvar specifies it as an optional click-on strain relief for a wide selection of compatible MINI LED drivers.

The accessory is supplied as one complete set, comprising a cover part, bottom part and screw for tightening the strain relief. It has a white RAL 9010 finish and is halogen free.

Key Features

• Genuine Helvar LC-SR-MINI
• Helvar order code 599900
• Click-on strain relief for MINI LED drivers
• Designed for independent installation outside a luminaire
• Robust and easy-to-assemble construction
• Suitable for different cable thicknesses
• Polycarbonate construction
• White RAL 9010 finish
• Halogen free
• Driver cross-section: 43 × 26–30mm
• Cable diameter: approximately 3.2–8.0mm
• Wire size: 0.5–2.5mm²
• Ambient temperature range: -25°C to +45°C
• CE marked
• RoHS and REACH compliant
• Suitable for compatible Helvar MINI LED drivers

Compatible Helvar Drivers

The LC-SR-MINI is compatible with a range of Helvar MINI LED drivers, including:

• LC20MINI-CC-150-500
• LC20MINI-CC-250-500
• LC28MINI-CC-500-700
• LC30MINI-CC-600
• LC30MINI-CC-700
• LC40MINI-CC-900
• LC40MINI-CC-1050
• LC41MINI-CC-700-1050
• LC27MINI-DA-150-700
• LC44MINI-DA-700-1050
• LC27MINI-FD-150-700
• LC43MINI-FD-300-1050
• LC43MINI-DA-150-1050
• LC43MINI-CC-300-1050

Helvar's current compatibility listing confirms these drivers.

What Is Included?

One LC-SR-MINI set contains:

• 1 × cover part
• 1 × bottom part
• 1 × screw for tightening the strain relief
