Gewiss GW70435P ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 32A 3P - LOCKABLE RED KNOB - IP66/67/69

Gewiss GW70435P ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 32A 3P - LOCKABLE RED KNOB - IP66/67/69

SKU GW70435P
£28.80 - £28.80
£28.80 inc VAT £24.00 exc VAT
£28.80 - £28.80
£28.80 inc VAT £24.00 exc VAT inc VAT £24.00 exc VAT
Datasheet

Estimated delivery time: Next working day

Description

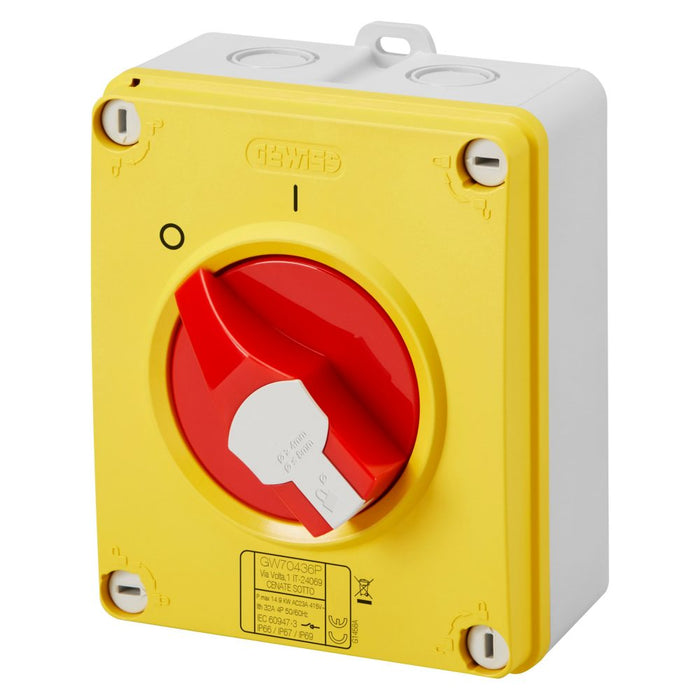

The GEWISS GW70435P 32A 3-Pole Emergency Rotary Isolator creates a clearly identifiable local isolation point for three-phase machinery, motors and industrial electrical equipment. Its enclosed construction, red emergency handle and padlockable OFF position make it particularly suitable for installations where equipment must be disconnected securely before servicing, cleaning or inspection.

Specification
  • Rated current (A) 32
  • No. of poles 3P
  • Knob colour Red
  • Lockable YES (max. 3 locks in OFF)
  • IP degree IP66/IP67/IP69
  • Mechanical resistance IK08
  • Ambient temperature -25 +60 °C
  • Lid screws (no. and type) 4 insul. 1/4 turn
  • Current in AC21A (415V) 32
  • Holes entry 2 x M20/25 + 2 x M20/25
  • Current in AC22A (415V) 32
  • Type of accessory Max. 2 auxiliary contacts (1 per side)
  • Current in AC23A (415V) 32
  • Cable section1-10 mm²

Three-Pole Isolation for 32A Equipment

The GW70435P is rated at 32A and simultaneously switches three poles. This configuration is appropriate for compatible three-phase circuits where the three live conductors need to be disconnected together.

Its rated operational current is 32A for AC-21A, AC-22A and AC-23A duties at 415V. These utilisation categories cover resistive loads, mixed resistive and inductive equipment, and motor or highly inductive loads.

This makes the isolator relevant for searches including:

  • 32A three-phase isolator
  • 3-pole motor isolation switch
  • Industrial machinery disconnect
  • AC-23A rotary isolator
  • Local pump isolator
  • Three-pole emergency switch
  • Factory equipment isolation point

The product has a rated insulation voltage of 690V and a conditional short-circuit current rating of 10kA at 415V.
