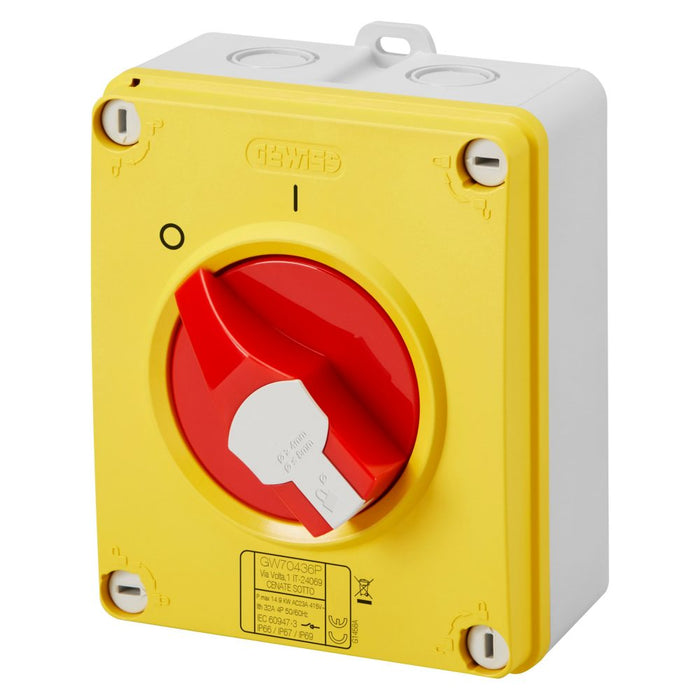

Gewiss GW70434P ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 32A 2P - LOCKABLE RED KNOB - IP66/67/69

Gewiss GW70434P ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 32A 2P - LOCKABLE RED KNOB - IP66/67/69

SKU GW70434P
£21.65 - £21.65
£21.65 inc VAT £18.04 exc VAT
£21.65 - £21.65
£21.65 inc VAT £18.04 exc VAT inc VAT £18.04 exc VAT
Datasheet

Estimated delivery time: Next working day

Description

The GEWISS GW70434P 32A 2-Pole Emergency Rotary Isolator is a highly protected electrical disconnect switch designed to provide a clear and secure local isolation point for compatible equipment and circuits. Its red rotary control knob, padlockable OFF position and durable insulating enclosure make it well suited to installations where electrical safety, equipment shutdown and resistance to harsh environmental conditions are essential.

Specification
  • Rated current (A) 32
  • No. of poles 2P
  • Knob colour Red
  • Lockable YES (max. 3 locks in OFF)
  • IP degree IP66/IP67/IP69
  • Mechanical resistanceIK08
  • Ambient temperature -25 +60 °C
  • Lid screws (no. and type) 4 insul. 1/4 turn
  • Current in AC21A (415V) 32
  • Holes entry 2 x M20/25 + 2 x M20/25
  • Current in AC22A (415V) 32
  • Type of accessory Max. 2 auxiliary contacts (1 per side)
  • Current in AC23A (415V) 32
  • Cable section 1-10 mm²

As part of the professional GEWISS 70 RT HP rotary isolator range, product code GW70434P combines two-pole switching with IP66, IP67 and IP69 protection. It is intended for commercial and industrial applications where a standard indoor isolator may not provide sufficient protection against dust, moisture, water jets or demanding cleaning procedures.

Reliable 32A Two-Pole Electrical Isolation

The GEWISS GW70434P has a rated current of 32A and simultaneously switches two poles. This allows both conductors of a compatible circuit to be disconnected together when two-pole isolation is required.

The isolator provides a rated operational current of 32A across the following utilisation categories at 415V:

  • AC-21A for resistive electrical loads
  • AC-22A for mixed resistive and inductive loads
  • AC-23A for compatible motor and highly inductive loads

This range of operational ratings makes the GW70434P suitable for a variety of properly designed equipment-isolation applications. Potential uses include local disconnection for pumps, fans, ventilation units, control equipment, building-services plant and compatible industrial machinery.

Final product selection should take account of the equipment load, starting current, circuit voltage, protective device and prospective fault current.

Lockable Red Emergency Control

A prominent red rotary knob makes the GW70434P emergency isolation switch easy to identify when equipment must be shut down or isolated.

The knob can be secured in the OFF position with up to three padlocks. This supports safer inspection, cleaning and maintenance by helping prevent another person from reconnecting the circuit while work is in progress.

Padlocks with a maximum shackle diameter of 8mm can be used. This feature makes the product particularly relevant for customers searching for a:

  • Lockable double-pole isolator
  • Machinery maintenance switch
  • Emergency electrical disconnect
  • Padlockable rotary isolator
  • Local equipment shutdown switch
  • Industrial lockout isolation point
