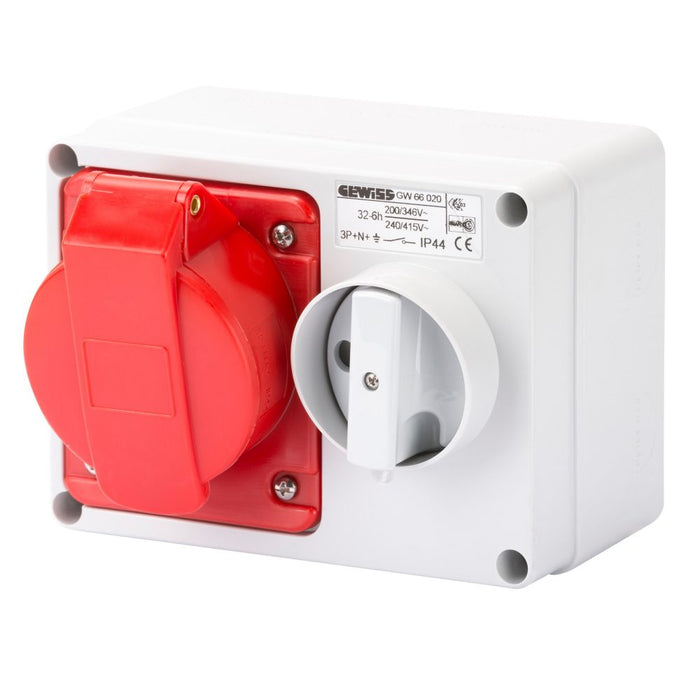

Gewiss GW66020 Fixed Interlocked Horizontal Socket Outlet With Bottom Without Fuse Holder Base 3P+N+E 32A 346 415V 50/60Hz 6H Ip44

SKU GW66020
Original price £38.62 - Original price £38.62
Original price
£38.62 inc VAT £32.18 exc VAT
£38.62 - £38.62
Current price £38.62 inc VAT £32.18 exc VAT inc VAT £32.18 exc VAT
Availability:
Only 3 left!

Estimated delivery time: Next working day

Description

The GEWISS GW66020 32A Interlocked Socket Outlet is a robust fixed industrial power connection designed for dependable electricity distribution in commercial and industrial environments. Featuring a 3P+N+E five-pole configuration, a rated voltage of 380–415V and a 6h earth-contact position, this red industrial socket is suitable for three-phase equipment requiring neutral and earth connections.

Part of the professional GEWISS IB interlocked socket-outlet range, the GW66020 combines a fixed horizontal design with an integrated locking device. It is an excellent choice for electricians, electrical contractors, panel builders and facility engineers requiring a secure 32A industrial socket for machinery, workshop equipment and commercial power-distribution systems.

Specification

Datasheet

Range: IB interlocked socket-outlet range

Product type: fixed interlocked industrial socket outlet

Installation format: horizontal

Rated current: 32A

Rated voltage: 380–415V

Frequency: 50/60Hz

Number of poles: 3P+N+E

Five-pin industrial connection

Earth-contact position: 6h

Colour: red

IP44 ingress protection

IK08 mechanical-impact resistance

Integrated locking device

Supplied with back-mounting box

Without fuse-holder base

Operating temperature: -25°C to +40°C

Thermo-pressure resistance: 125°C active parts

Thermo-pressure resistance: 80°C passive parts

Glow-wire resistance: 850°C active parts

Glow-wire resistance: 650°C passive parts

Supplied with 20mm conduit coupling

Supplied with 23mm cable gland

Suitable for industrial and commercial power distribution
