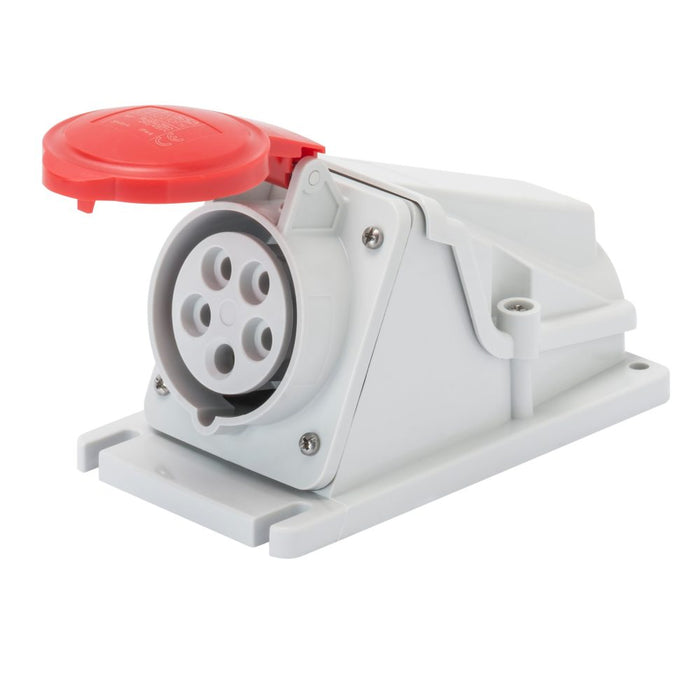

Gewiss GW62493 5 Pin Ip44 90° Surface Mount Socket

Gewiss GW62493 5 Pin Ip44 90° Surface Mount Socket

SKU GW62493
£13.92 - £13.92
£13.92 inc VAT £11.60 exc VAT
£13.92 - £13.92
£13.92 inc VAT £11.60 exc VAT inc VAT £11.60 exc VAT
Availability:
Only 1 left!
Datasheet

Estimated delivery time: Next working day

Description

The GEWISS GW62493 32A Industrial Socket Outlet is a durable 90° angled surface-mounting power connection designed for commercial and industrial electrical installations. Rated at 32A and 380–415V, this red industrial socket features a 3P+N+E five-pin configuration, making it suitable for compatible three-phase equipment that requires three phase conductors, neutral and protective earth.

Part of the professional GEWISS IEC 309 HP range, the GW62493 provides a reliable fixed connection point for industrial machinery, workshop equipment, production systems, commercial plant and three-phase electrical distribution.

Specification

The GEWISS GW62493 industrial socket operates at 380–415V and 50/60Hz. Its 3P+N+E configuration provides:

  • Three phase connections
  • One neutral connection
  • One protective earth connection

This five-pin arrangement is suitable for compatible three-phase equipment that requires a neutral conductor in addition to the three phases and earth.

The socket has a 6h earth-contact position and should be paired with a compatible industrial plug featuring the same current rating, voltage range, pole configuration and earth-pin position.

Typical applications can include:

  • Industrial machinery
  • Manufacturing equipment
  • Production-line systems
  • Workshop machinery
  • Pumps and processing equipment
  • Commercial plant installations
  • Warehouse power systems
  • Electrical control equipment
  • Temporary power-distribution systems
  • Industrial maintenance facilities

90° Angled Surface-Mounting Design

The GW62493 90-degree industrial socket is designed for fixed surface mounting. Its angled construction provides a practical connection orientation for compatible plugs and cables, particularly where a straight connection could place unnecessary strain on the plug or cable.

The surface-mounted format makes the socket suitable for installation on compatible electrical enclosures, distribution equipment and fixed mounting surfaces.

Customers may also search for this type of product as a:

  • 32A five-pin industrial socket
  • 400V three-phase socket
  • Red 3P+N+E socket
  • 32A IEC 309 socket outlet
  • Five-pole CEE socket
  • Angled industrial wall socket
  • 400V machinery power outlet
  • Surface-mounted three-phase socket

IP44 Ingress Protection

The GEWISS GW62493 IP44 socket provides protection against solid objects larger than 1mm and splashing water when correctly installed.

This makes it suitable for many commercial, workshop and industrial locations where the electrical connection may be exposed to dust, debris or occasional moisture.

Correct installation, suitable cable entry and proper use of the socket cover are essential for maintaining the specified IP44 protection level.

IK08 Impact Resistance

The GW62493 has an IK08 mechanical-impact rating, helping protect the socket against accidental knocks and impacts.

This additional mechanical protection is useful in active industrial environments where electrical accessories may be positioned near machinery, tools, vehicles, stored equipment or frequently used work areas.
