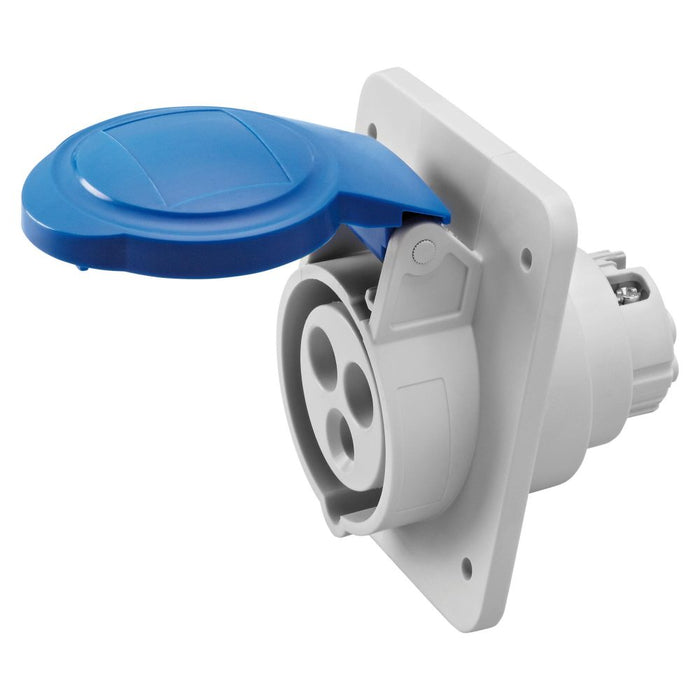

The GEWISS GW62205H industrial socket is rated at 16A and operates between 200V and 250V at 50/60Hz. It has a 2P+E configuration, providing two current-carrying contacts and one protective earth connection.
Its three-pin arrangement and blue colour make it suitable for compatible 230V industrial plugs with the same current rating, voltage range and 6h earth-contact position.
Potential installation applications include:
- Industrial distribution panels
- Temporary power boards
- Workshop electrical systems
- Commercial power installations
- Machinery control enclosures
- Equipment connection panels
- Factory electrical systems
- Maintenance power supplies
- Site distribution assemblies
- Custom-built electrical panels
- Industrial equipment enclosures
- Commercial service installations
The connected plug must have the correct 16A rating, 2P+E configuration, 200–250V voltage range and 6h earth-pin position.
10° Angled Flush-Mounting Design
The GW62205H angled panel socket is designed with a 10° inclination. This angled format can make it easier to insert and remove a compatible industrial plug, particularly when the socket is installed on a vertical panel or enclosure.
The flush-mounting construction allows most of the socket body to sit inside the associated enclosure, leaving the socket face and protective cover accessible from the outside.
This makes the product suitable for installers searching for a:
- 16A angled panel socket
- Blue flush-mounted industrial socket
- 230V three-pin panel outlet
- 2P+E electrical socket
- IEC 309 panel-mount connector
- 16A industrial distribution-board socket
- Blue commando-type panel socket
The socket has flange dimensions of 85 × 75mm, which should be considered when preparing the mounting surface or selecting a compatible enclosure.
IP44 and IP54 Protection
The GEWISS GW62205H socket outlet is rated IP44/IP54, providing protection for demanding commercial and industrial installations when correctly installed.
The level of protection makes the socket suitable for environments where electrical connections may be exposed to dust, workshop debris or splashing water. Correct mounting, compatible accessories and proper closure of the socket cover are essential for maintaining the intended ingress-protection level.
The GW62205H can be considered for indoor industrial installations and suitable protected outdoor applications where its IP rating is appropriate for the environmental conditions.
IK09 Impact Resistance
The socket provides an IK09 mechanical-impact rating, helping protect it from accidental knocks and impacts in active working environments.
This strong impact resistance is valuable where industrial sockets may be installed near machinery, tools, vehicles, storage equipment or frequently used work areas.
The durable construction makes the GEWISS GW62205H suitable for professional electrical systems requiring a dependable fixed power connection.
Screw-Wired Electrical Terminals
The GW62205H uses conventional screw wiring, providing electricians with a familiar and secure termination method.
Its terminal capacity accommodates:
- Flexible cables from 1mm² to 2.5mm²
- Rigid cables from 1.5mm² to 4mm²
The correct cable size should be selected according to the circuit design, protective device, installation method, expected load and applicable wiring regulations.
All terminal screws should be tightened correctly to produce a safe and reliable electrical connection.
Halogen-Free Construction
The GEWISS GW62205H flush socket is manufactured from halogen-free material in compliance with EN 60754-2.
Halogen-free electrical accessories are commonly specified for projects where limiting corrosive gases and smoke emissions during a fire is an important design consideration. They may be selected for commercial buildings, public facilities, transport infrastructure, industrial premises and other professionally designed electrical installations.
The socket also features nickel-plated contacts, supporting dependable electrical performance and connection durability.
Electrical and Mechanical Performance
The GW62205H has been designed for regular professional use and is rated for more than 5,000 operating cycles.
Its additional electrical specifications include:
- Rated current: 16A
- Permissible overload: 22A
- Breaking capacity at 1.1 times rated voltage: 20A
- Insulation resistance: greater than 10MΩ
- Frequency: 50/60Hz
- Earth-contact position: 6h
