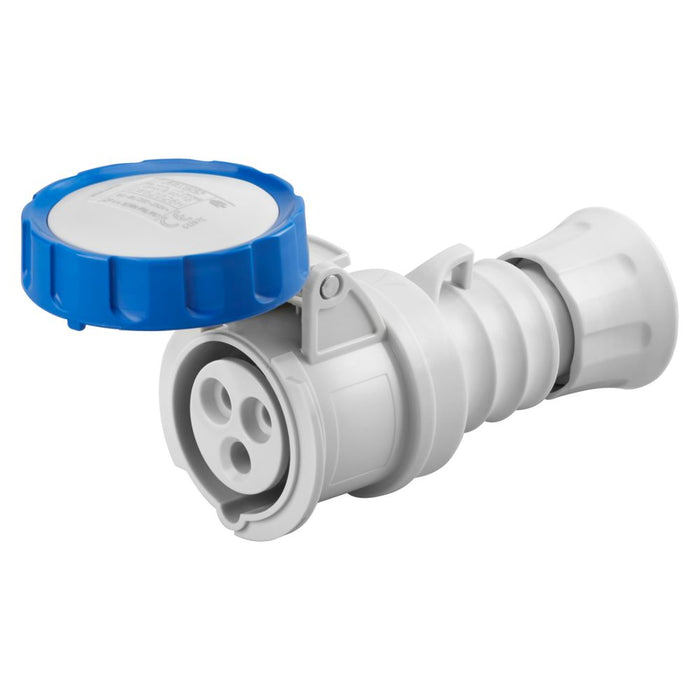

Gewiss GW62026H Mobile Socket 2P+E 16A Ip67 Blue 220V

GEWISS GW62026H 16A 230V IP69 Straight Industrial Connector

The GEWISS GW62026H 16A Straight Industrial Connector is a high-protection cable-mounted connector designed for reliable 200–250V electrical connections in demanding commercial and industrial environments. Its blue body, three-pin 2P+E configuration and 6h earth-contact position make it suitable for compatible single-phase IEC 309 plugs and appliance inlets.

Part of the GEWISS IEC 309 HP industrial connection range, the GW62026H combines a robust straight-body design with screw-wired terminals, nickel-plated contacts and exceptionally high ingress protection. It carries IP66, IP67, IP68 and IP69 ratings, making it an excellent option for industrial extension leads and equipment cables used in wet, dusty, outdoor or frequently cleaned environments.

16A 230V Three-Pin Industrial Connector

The GEWISS GW62026H is rated at 16A and 200–250V AC at 50/60Hz. Its 2P+E arrangement provides two current-carrying contacts and one protective-earth connection.

The connector must be used with compatible industrial equipment that matches its:

• 16A current rating
• 200–250V voltage range
• 2P+E three-pin configuration
• 6h earth-contact position
• IEC 309 connection format

The blue colour provides quick visual identification within industrial power systems, while the 6h earth position helps prevent connection to incompatible voltage configurations.

IP66, IP67, IP68 and IP69 Protection

A major advantage of the GW62026H industrial cable connector is its comprehensive ingress protection. The connector is rated IP66, IP67, IP68 and IP69 when correctly assembled and connected to compatible equipment.

These protection ratings make the product suitable for locations where an electrical connector may encounter dust, rain, water jets, temporary immersion or intensive cleaning processes.

GEWISS specifies that the IP68 rating is tested at 2 bar for six hours in accordance with EN 60529 following ageing under EN 60309. The IP69 rating is also tested in accordance with EN 60529 after ageing under EN 60309.

Potential applications include:

• Industrial extension leads
• Outdoor power cables
• Construction-site equipment
• Workshop machinery
• Factory maintenance systems
• Food and beverage production areas
• Commercial cleaning equipment
• Agricultural installations
• Temporary event power systems
• Processing and manufacturing machinery
• Wet or washdown working environments
