Gewiss GW62015H Conn 2P+E 32A 230V Blue

Name: Gewiss GW62015H Conn 2P+E 32A 230V Blue
Brand: Gewiss
SKU: GW62015H
Price: 9.3 GBP
Availability: InStock

SKU GW62015H

£9.30 - £9.30

£9.30 inc VAT £7.75 exc VAT

£9.30 - £9.30

£9.30 inc VAT £7.75 exc VAT inc VAT £7.75 exc VAT

Availability:

6 in stock, ready to be shipped

Datasheet

Estimated delivery time: Next working day

Description

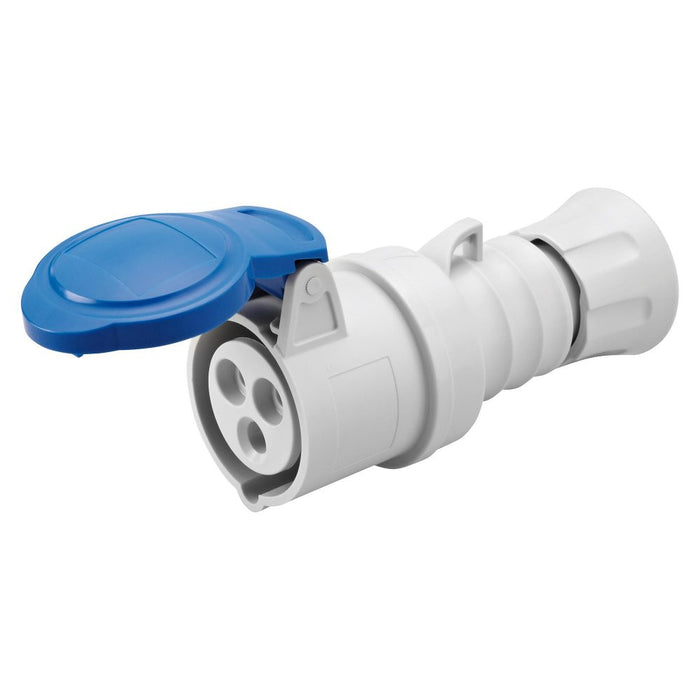

The GEWISS GW62015H 32A Straight Industrial Connector is a robust cable-mounted power connector designed for dependable single-phase electrical connections in commercial, workshop and industrial environments. Rated at 32A and 200–250V, this blue industrial connector features a 2P+E three-pin configuration, making it suitable for compatible equipment requiring phase, neutral and protective earth connections.

Specification

Product range: IEC 309 HP

Product type: straight industrial connector

Rated current: 32A

Rated voltage: 200–250V

Nominal voltage: approximately 230V

Frequency: 50/60Hz

Pole configuration: 2P+E

Three-pin industrial connection

Earth-contact position: 6h

Colour: blue

IP44/IP54 ingress protection

IK09 mechanical-impact resistance

Screw-wired terminals

Flexible cable capacity: 2.5–6mm²

Rigid cable capacity: 2.5–10mm²

Cable-clamp capacity: 9.2–19.9mm

Nickel-plated electrical contacts

Halogen-free construction

More than 2,000 operating cycles

Permissible overload: 42A

Breaking capacity: 40A at 1.1 Un

Insulation resistance greater than 10MΩ

Operating temperature: -25°C to +55°C

Suitable for commercial and industrial power cables
