Gewiss GW60061H IP66/IP67/IP68/IP69 3P+N+E 125A 6H Mantle Terminal

Name: Gewiss GW60061H IP66/IP67/IP68/IP69 3P+N+E 125A 6H Mantle Terminal
Brand: Gewiss
SKU: GW60061H
Price: 98.1 GBP
Availability: InStock

SKU GW60061H

£98.10 - £98.10

£98.10 inc VAT £81.75 exc VAT

£98.10 - £98.10

£98.10 inc VAT £81.75 exc VAT inc VAT £81.75 exc VAT

Availability:

Only 1 left!

Datasheet

Estimated delivery time: Next working day

Description

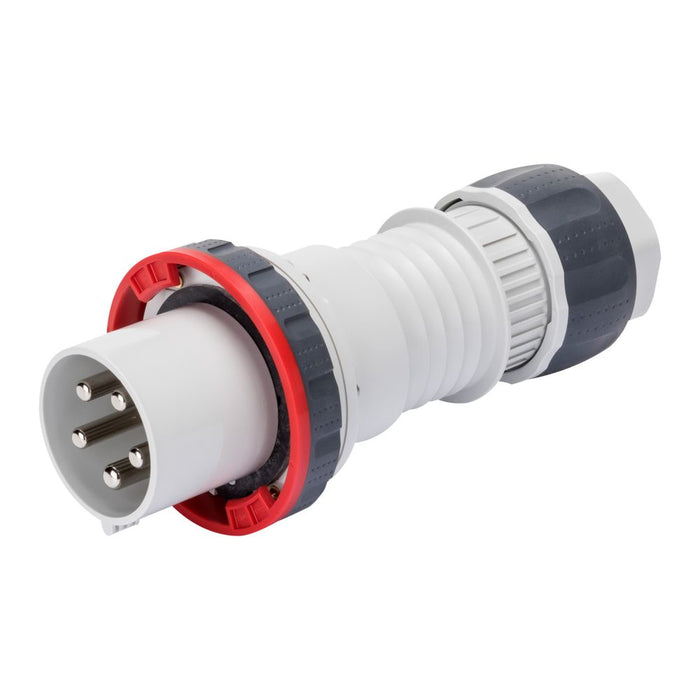

The Gewiss GW60061H 125A Industrial Straight Plug is a heavy-duty mobile connector designed for demanding three-phase electrical installations. It features a 3P+N+E five-pin configuration, a rated voltage of 346–415V AC and a 50/60Hz operating frequency, making it suitable for compatible 400V and 415V industrial power supplies.

Specification

IP degree IP66/IP67/IP68/IP69
No. of poles 3P+N+E
Mechanical resistance IK09 Reference h 6
Type Straight plug
Rated voltage 346 - 415 V
Frequency 50/60 Hz
Terminal tightening capacity 16-50mm² flexible cables - 25-70mm² rigid cables
Cable clamp tightening capacity 29.9-49 mm
Operating temperature -25 +55 °C
Type of wiring Mantle terminal
Type of material Halogen-free in compliance with EN 60754-2
Electrocod 2231 Glow wire test 850 °C (active parts) - 650 °C (passive parts)
Total number of operations > 500 Breaking capacity at 1.1 Un 156 A
Insulation resistance > 10 MΩ
Thermo-pressure with ball 125 °C (active parts) - 80 °C (passive parts)
