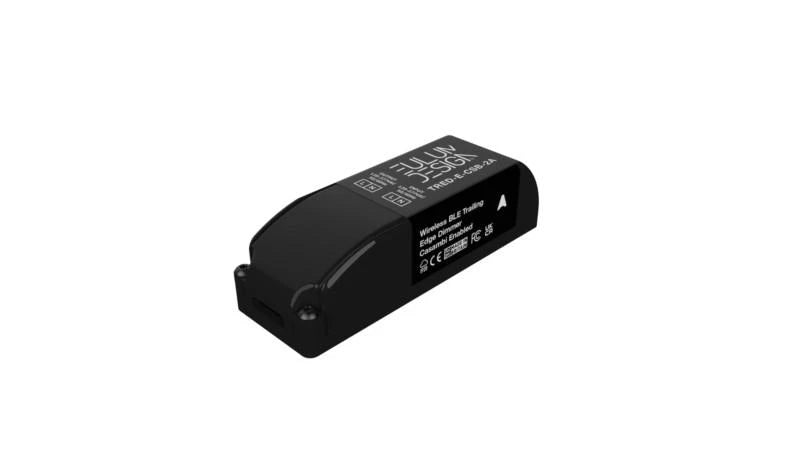

Eulum TRED-L-CSB-2A Casambi Wireless Trailing Edge LED Dimmer Module

Eulum TRED-L-CSB-2A Casambi Wireless Trailing Edge Dimmer

The Eulum TRED-L-CSB-2A is a wireless trailing edge dimmer with integrated Casambi control, designed for compatible dimmable lighting applications. It allows users to adjust lighting levels wirelessly through the Casambi app, making it suitable for smart lighting installations in commercial, hospitality, retail and residential environments.

Wireless Casambi Lighting Control

The TRED-L-CSB-2A integrates with the Casambi wireless lighting control ecosystem, allowing compatible lighting to be controlled and configured through the Casambi app. Its wireless functionality supports flexible lighting management without relying on conventional wired control connections between devices.

Trailing Edge Dimming for Compatible Lighting

Using trailing edge phase control, the TRED-L-CSB-2A is designed to dim compatible incandescent lamps, halogen lighting, retrofit LED lamps, electronic transformers and LED drivers. It supports a maximum load current of 2A, with the permitted wattage depending on the supply voltage and connected load type.

At 230V AC, the maximum rated loads include:

• Tungsten and halogen lamps: 460W

• Dimmable LED and compact fluorescent lamps: 150W

• Compatible trailing edge LED drivers and electronic transformers: 150W

The unit supports logarithmic or linear dimming profiles, with 0–100% dimming output and 0.4% resolution.

Compact Design and Installation

The TRED-L-CSB-2A features a compact black ABS plastic enclosure measuring 103 × 35 × 28mm. It is designed for screw-down mounting and has an IP20 rating for dry indoor locations.

Important compatibility note: This dimmer must not be connected to magnetic or inductive loads, including iron core transformers, as doing so can permanently damage the unit. Do not mix load types. Confirm compatibility with the connected lighting equipment before installation.

Key Features

• Manufacturer: Eulum Design

• Product code: TRED-L-CSB-2A

• Casambi wireless lighting control

• Trailing edge phase dimming

• Maximum load current: 2A

• Input voltage: 120–277V AC

• Supply frequency: 50–60Hz

• Dimmable LED and halogen lighting compatibility

• Linear and logarithmic dimming profiles

• Dimming range: 0–100%

• Maximum inrush current: 30A

• Standby power: less than 300mW

• IP20 protection rating

• Black ABS plastic housing

• Dimensions: 103 × 35 × 28mm

• Weight: approximately 50g

Suitable Applications

The Eulum TRED-L-CSB-2A is suitable for compatible smart lighting installations requiring wireless control and trailing edge dimming. It can be used in residential properties, offices, retail spaces and hospitality environments where Casambi lighting control is required.

Choose the Eulum TRED-L-CSB-2A for compact, wireless dimming control of compatible lighting loads within a Casambi enabled installation.
