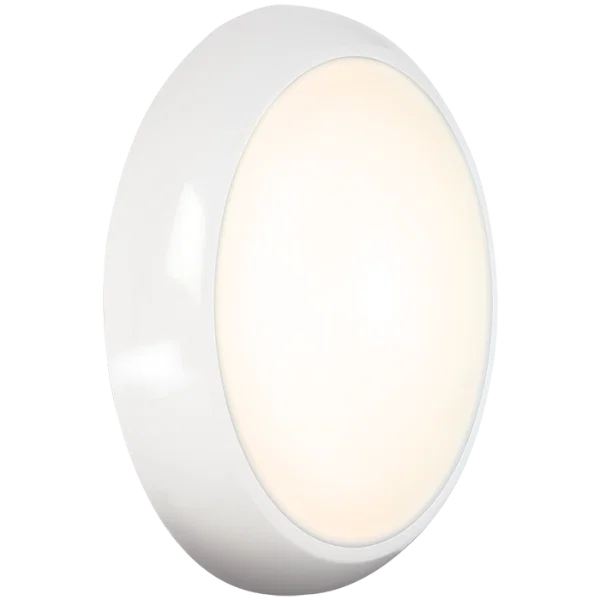

Eterna CHA18SD Chara Range Bulkhead with Step Dim MW Sensor
SKU CHA18SD
Original price
£36.00
-
Original price
£36.00
Original price
£36.00 inc VAT £30.00 exc VAT
£36.00
-
£36.00
Current price
£36.00 inc VAT £30.00 exc VAT
inc VAT £30.00 exc VAT
Estimated delivery time: 2-3 days
Description
Main Features:
- Optional accessories available separately
- Power Selectable – options of 9W, 14W and 18W easily set by a dip switch on the driver
- Colour temperature selectable – options of 3000K, 4400K & 6500K easily set by a dip switch on the driver
- Hinged LED array
- Push fit terminal block
- Polycarbonate diffuser
- Enclosure rated as IK10 for impact resistance
- Central BESA box mounting option on the base
- Step Dim Microwave Versions:
- Daylight Sensor adjustable: 10 lux / disable
- Detection Sensitivity adjustable: 50% / 100%
- Detection angle: 30~150°
- Adjustable detection range: 4-6m at 3m installation height
- Standard on/off mode:
- Operation at 100% light level then off after last presence detection. Operation on time can be set at 5 sec, 90 sec, 3 min (180 sec), 10 min
- Corridor mode:
- Operation at 100% light level after last presence detection which can be set at 5 sec, 90 sec, 3 min (180 sec), 10 min, then continuous operation at 10% or 30% light level
- Corridor & off mode:
- Operation at 100% light level after last presence detection which can be set at 5 sec, 90 sec, 3 min (180 sec), 10 min, then operation at 10% or 30% light level which can be set at 10 sec / 10 min, then off
