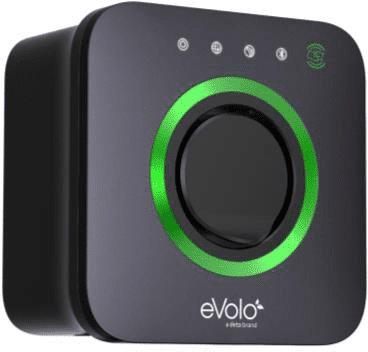

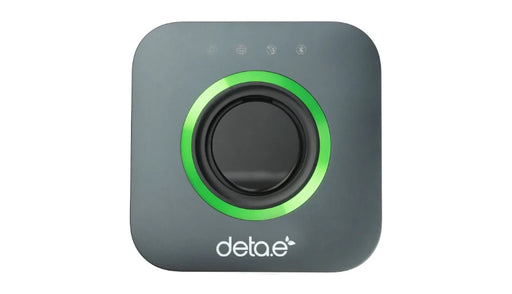

Deta Evolo EVC7001 7.4kW 32A Single Phase Mode 3 Home EV Charger (eDock)

SKU EVC7001
Original price £442.80 - Original price £442.80
Original price
£442.80 inc VAT £369.00 exc VAT
£442.80 - £442.80
Current price £442.80 inc VAT £369.00 exc VAT inc VAT £369.00 exc VAT

Estimated delivery time: Next working day

Description

 Main Features:

  • Charge point control, scheduling and energy usage monitoring via APP
  • Commissioned using a mobile device which is Bluetooth enabled and a mobile data connection, e.g. 4G.
  • LED indicators
  • PEN fault detection and isolation
  • Connected product (as required by the Smart Charge Point Regs.) via ethernet or Wi-Fi connectivity
  • RS485 connectivity for load management
  • Charge APP needs to be downloaded to register the product so that end user can restrict use and authorize access
  • Easy to install: the mounting base plate has mains wiring terminals and has rear, top and bottom drill out cable entry points; the charge point attaches to the base
  • Suitable for wall or post mounting
  • 7.4kW charging power (max. 32A)
  • Firmware updates OTA, once the product is registered
  • RFID ready – feature can be enabled via eVolo website
  • 2-Years extendable to 3-years upon registration at eVolo.uk, subject to the eVolo Warranty Terms of Business
Specification
  • Voltage - 220V - 240V AC 50Hz Single Phase
  • Cable Size - 10mm2 max
  • Wi-Fi 2.4GHz network
  • Ethernet RJ45
  • Bluetooth for commissioning via APP
  • Remote management via cloud
  • OCPP 1.6J
  • IEC 61851-1:2019 EVSE mode 3
  • IEC 62955
  • EMC Regulations 2016
  • ROHS Regulations 2012
  • RED 2014/53/EU
  • UK Electric Vehicles (Smart Charge Points) Regulations 2021
  • Installation to be in accordance with BS7671

Datasheet

Product Dimensions

  • (WxHxD) - 202 x 202 x 115mm approx.
