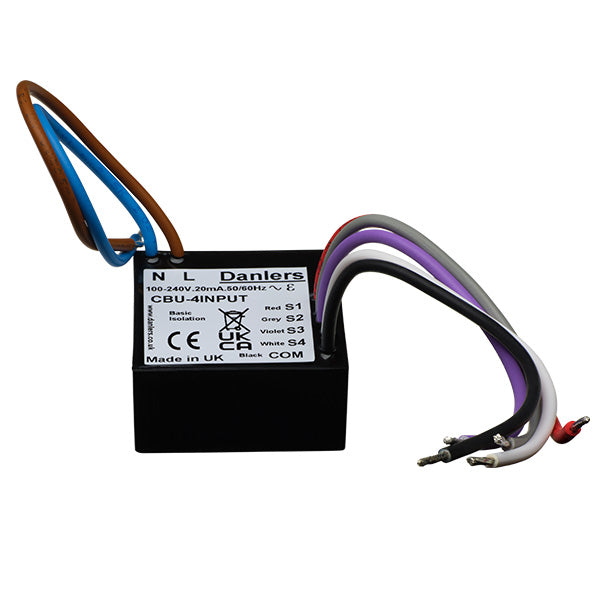

DANLERS CBU-4INPUT Casambi Four Input Wireless Lighting Control Unit

DANLERS CBU-4INPUT Casambi Four Input Wireless Lighting Control Unit

SKU cbu-4input
£144.92 - £144.92
£144.92 inc VAT £120.77 exc VAT
£144.92 - £144.92
£144.92 inc VAT £120.77 exc VAT inc VAT £120.77 exc VAT
Datasheet

Estimated delivery time: 2-3 Working Days

Description

DANLERS CBU-4INPUT Casambi Four Input Wireless Lighting Control

The DANLERS CBU-4INPUT is a four input control interface designed to integrate external controls into a Casambi wireless lighting network. It allows compatible lighting functions, including brightness and colour temperature adjustment, to be controlled through external input devices configured using the Casambi app.

Suitable for commercial, industrial and residential lighting installations, the CBU-4INPUT provides a flexible way to connect external control systems to compatible Casambi enabled lighting equipment.

Four Input Control for Casambi Lighting Systems

The CBU-4INPUT features four separate control inputs, allowing external control devices to interact with a Casambi network. Its operation is configured through the Casambi app, enabling the inputs to be set up according to the requirements of the lighting installation.

The interface is designed to control the brightness and colour temperature of lighting loads operated by compatible Casambi dimming devices. It can also be used to integrate external systems into a Casambi network, helping provide greater flexibility when designing wireless lighting control solutions.

Wireless Casambi Integration

The CBU-4INPUT communicates using 2.4GHz wireless technology and is designed exclusively for use with Casambi enabled equipment. Once configured, it allows connected control inputs to interact with the wider Casambi lighting system.

This makes it suitable for installations where external controls need to work alongside wireless lighting management, without requiring every control device to have its own wireless connection.

Compact Design and IP65 Protection

The DANLERS CBU-4INPUT features a compact enclosure measuring 40 × 40 × 20mm, allowing it to fit into suitable installation spaces. Its IP65 rating provides protection against dust ingress and water jets when correctly installed in accordance with the manufacturer's instructions.

The unit operates from a 100–240V AC supply and is designed for installation by a competent person in accordance with applicable wiring regulations.

Key Features

  • Manufacturer: DANLERS

  • Product code: CBU-4INPUT

  • Four control inputs

  • Designed for Casambi enabled lighting systems

  • Supports configured control of brightness and colour temperature

  • Suitable for integrating external control systems into a Casambi network

  • Configuration through the Casambi app

  • Supply voltage: 100–240V AC

  • Supply frequency: 50/60Hz

  • Maximum mains current: 20mA

  • Standby current: 16mA

  • Wireless operating frequency: 2.4GHz

  • Maximum radio output power: +4dBm

  • Ingress protection: IP65

  • Dimensions: 40 × 40 × 20mm

  • Weight: approximately 52g

  •

Specification


The DANLERS CBU-4INPUT is a four input control interface for Casambi enabled lighting systems. It integrates external control devices into a wireless Casambi network and supports configured control of lighting brightness and colour temperature. It operates on a 100–240V AC supply, has an IP65 rating and measures 40 × 40 × 20mm.

FAQ's

Frequently asked questions

What is the DANLERS CBU-4INPUT?
It is a four input interface designed to connect external controls to a Casambi wireless lighting network.

How many inputs does the CBU-4INPUT have?
It has four control inputs, labelled S1, S2, S3 and S4, alongside a common connection.

Can it control lighting brightness and colour temperature?
Yes. It is designed to control these functions on compatible lighting loads operated by Casambi dimmable devices, depending on how the inputs are configured.

Can the CBU-4INPUT be configured through the Casambi app?
Yes. Its operation is configured through the Casambi app.

What is the supply voltage?
The CBU-4INPUT operates on a 100–240V AC supply at 50/60Hz.

Is the CBU-4INPUT suitable for outdoor installations?
It has an IP65 rating, but suitability depends on the installation environment and how the device is mounted and protected. Follow the manufacturer's installation instructions.

Is the CBU-4INPUT compatible with non-Casambi lighting equipment?
It is designed to work with Casambi enabled equipment. Any external control system must be compatible with the input arrangement and intended configuration.
