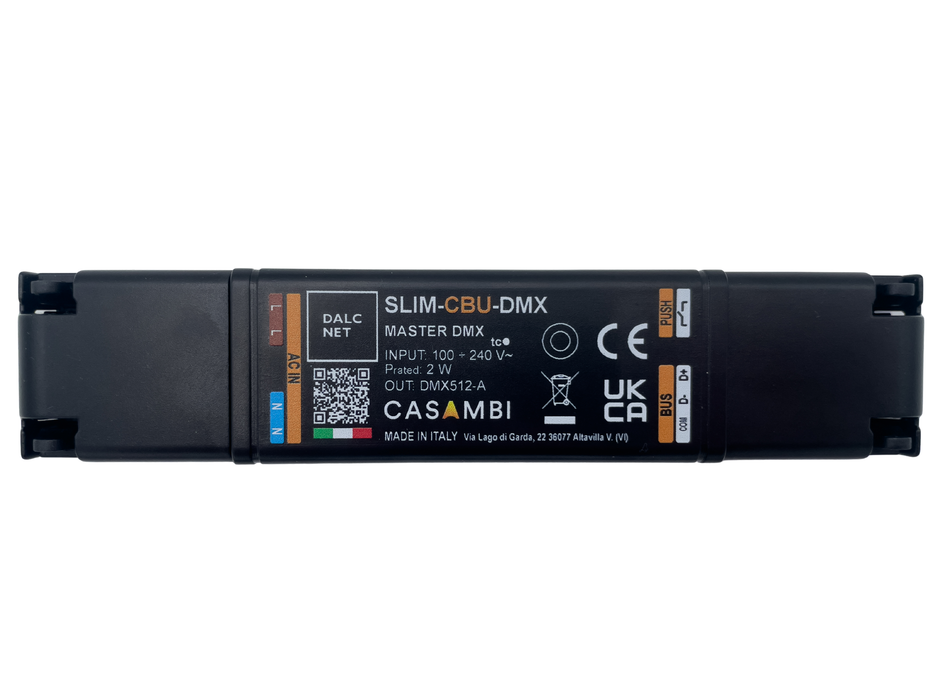

DALCNET SLIM-CBU-DMX Casambi to DMX Wireless Protocol Converter Unit

DALCNET SLIM-CBU-DMX Casambi to DMX Protocol Converter

The DALCNET SLIM-CBU-DMX is a compact wireless protocol converter designed to integrate Casambi lighting controls with DMX lighting networks. It enables communication between the Casambi wireless lighting ecosystem and DMX controlled lighting equipment, making it suitable for professional lighting installations that require flexible control across both systems.

Operating from a 230V AC supply, the SLIM-CBU-DMX supports Master and Slave modes, allowing it to convert control commands between Casambi and DMX networks. Configuration is carried out through the Casambi mobile app, providing a convenient way to set up the converter for the requirements of the lighting installation.

Casambi to DMX and DMX to Casambi Conversion

The SLIM-CBU-DMX supports two operating modes.

Master mode: The converter receives commands from a Casambi mesh network or the Casambi app and translates them into DMX control signals. This allows Casambi controls to operate compatible DMX lighting equipment.

Slave mode: The converter receives commands from a DMX bus and translates them into commands for a Casambi network. This allows DMX control equipment to interact with compatible Casambi enabled devices.

The operating mode and relevant control profiles can be configured through the Casambi app. Depending on the selected profile, the unit can support independent dimming channels or other supported DMX control arrangements.

Flexible DMX Lighting Control

The SLIM-CBU-DMX supports a range of configurable DMX profiles. Depending on the selected profile and operating conditions, it can control up to 12 DMX channels in Master mode or receive up to 8 DMX channels in Slave mode.

A normally open push button input provides additional local control. Built in protection features include overvoltage protection and input fuse protection, helping protect the control electronics.

Compact Design for Professional Installations

The DALCNET SLIM-CBU-DMX features a slim enclosure designed for integration into suitable lighting control installations. It operates from a nominal 230V AC supply at 50/60Hz and supports an extended ambient operating temperature range of -25°C to +60°C.

With an IP20 rating, it is intended for suitable indoor environments where protection against water ingress is not required.

Key Features

• Manufacturer: DALCNET

• Product code: SLIM-CBU-DMX

• Casambi to DMX protocol converter

• Supports Master and Slave operating modes

• Master mode converts Casambi commands into DMX signals

• Slave mode converts DMX commands into Casambi commands

• Configuration through the Casambi mobile app

• Bluetooth Low Energy wireless communication

• Supports up to 12 DMX channels in Master mode under specified conditions

• Supports up to 8 DMX channels in Slave mode under specified conditions

• Normally open push button input for local control

• Nominal supply voltage: 230V AC

• Supply frequency: 50/60Hz

• Operating temperature: -25°C to +60°C

• Ingress protection: IP20

• Approximate dimensions: 136 × 29 × 21mm

• 5-year manufacturer warranty

Suitable Applications

The SLIM-CBU-DMX is suitable for professional lighting installations where Casambi wireless controls need to communicate with DMX lighting equipment. Potential applications include commercial buildings, architectural lighting, hospitality venues, retail environments and entertainment spaces using compatible DMX systems.

Choose the DALCNET SLIM-CBU-DMX to bridge Casambi and DMX control systems, helping integrate wireless lighting control into more complex installations.

Installation note: This device connects to a mains voltage supply and a DMX bus. Installation should be completed by a suitably qualified person with the supply isolated. Follow the manufacturer's wiring instructions, including the correct DMX data polarity and common connection.
