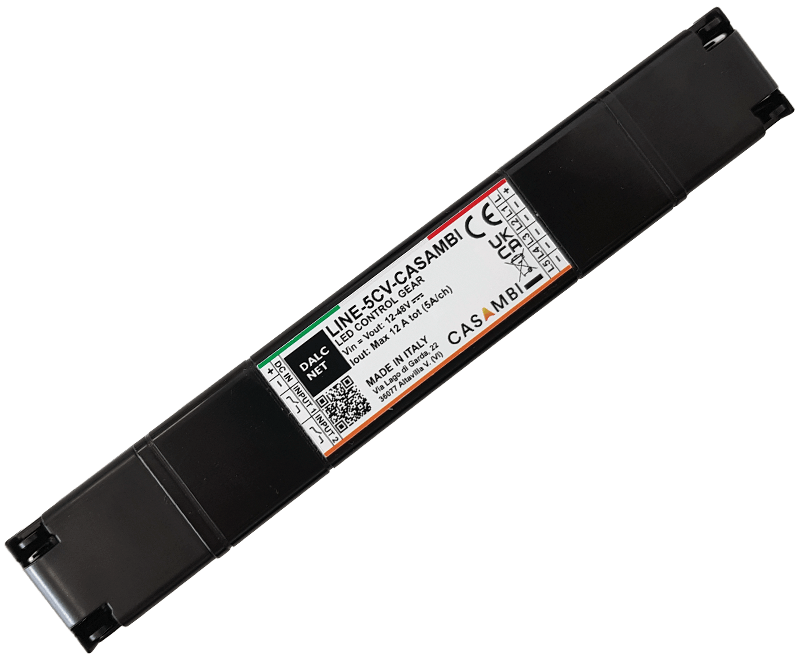

DALCNET LINE-5CV-CASAMBI 5 Channel Wireless LED Strip Dimmer Control

DALCNET LINE-5CV-CASAMBI 5 Channel Casambi LED Strip Dimmer

The DALCNET LINE-5CV-CASAMBI is a five channel constant voltage LED dimmer designed to provide wireless lighting control through the Casambi ecosystem. Suitable for LED strip lighting and compatible LED modules, it supports a range of lighting configurations, including single colour, tunable white, RGB, RGBW and other multi channel arrangements.

Operating from a 12V, 24V or 48V DC power supply, this versatile LED controller offers flexible dimming, wireless configuration and local push button control. It is ideal for professional lighting installations where precise brightness adjustment, colour control and integration with a Casambi wireless network are required.

Five Channel Constant Voltage LED Control

The LINE-5CV-CASAMBI provides five independent output channels for controlling compatible constant voltage LED loads. Each channel supports up to 5A, subject to the controller's operating limits, with a maximum combined output current of 12A across all channels.

The controller supports multiple lighting configurations, including:

• Single colour LED strip lighting

• White LED lighting

• Tunable white and dynamic white lighting

• RGB colour changing LED installations

• RGBW lighting

• RGBWW and RGB+TW configurations

Its output voltage follows the input supply voltage, making it suitable for compatible 12V, 24V and 48V DC LED systems.

Wireless Casambi Lighting Control

The LINE-5CV-CASAMBI integrates with the Casambi wireless lighting control system, allowing users to configure and control lighting through the Casambi app on compatible smartphones and tablets.

The app enables lighting groups, scenes, animations, timers and other supported control functions to be configured for the installation. This makes the controller suitable for both straightforward dimming applications and more advanced multi channel lighting projects.

Flexible Local Push Button Control

In addition to wireless app control, the controller supports two normally open push buttons. These inputs provide an alternative method of controlling compatible lighting without needing to use the app for every adjustment.

The controller uses pulse width modulation (PWM) at a frequency of 4,000Hz, with a linear dimming curve and a dimming range from approximately 0.8% to 100%. Soft start, soft stop and smooth brightness adjustment help deliver controlled lighting transitions.

Protection and Installation

The LINE-5CV-CASAMBI incorporates protection against overvoltage, undervoltage, reverse polarity and input fuse faults. Its compact plastic enclosure is designed for installation in suitable indoor lighting control locations.

With an IP20 rating, it is intended for indoor environments where protection against water ingress is not required.

Key Features

• Manufacturer: DALCNET

• Product code: LINE-5CV-CASAMBI

• Five channel constant voltage LED dimmer

• Casambi wireless lighting control

• Input voltage: 12V, 24V or 48V DC

• Output voltage: follows the DC input voltage

• Maximum output current: 5A per channel

• Maximum combined output current: 12A

• Supports single colour, tunable white, RGB, RGBW and other supported multi channel configurations

• Control through the Casambi app

• Two normally open push button inputs

• PWM dimming at 4,000Hz

• Dimming range: approximately 0.8% to 100%

• Linear dimming curve

• Soft start and soft stop

• Overvoltage, undervoltage, reverse polarity and input fuse protection

• Ingress protection: IP20

• Dimensions: approximately 186 × 29 × 21mm

• Operating temperature: -10°C to +60°C

• Manufacturer warranty: 5 years

Maximum Output Power

The maximum nominal power depends on the DC supply voltage:

• 12V DC: up to 144W total

• 24V DC: up to 288W total

• 48V DC: up to 579W total

These figures are subject to the controller's maximum combined output current and operating conditions. The total load must not exceed 12A, even where the individual channels are each rated for up to 5A.

Suitable Applications

The DALCNET LINE-5CV-CASAMBI is suitable for architectural lighting, residential LED installations, commercial interiors, retail displays, hospitality environments and decorative lighting projects requiring wireless multi channel control.

Choose the LINE-5CV-CASAMBI for flexible five channel LED dimming, Casambi app integration and support for a wide range of constant voltage lighting configurations.

Installation note: This is a low voltage DC LED controller and requires a compatible external power supply. Check the LED strip voltage, channel current, total load and required lighting configuration before installation.
